IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING
    1. Attach timing light to No. 1 ignition coil (1) wire as shown in figure.

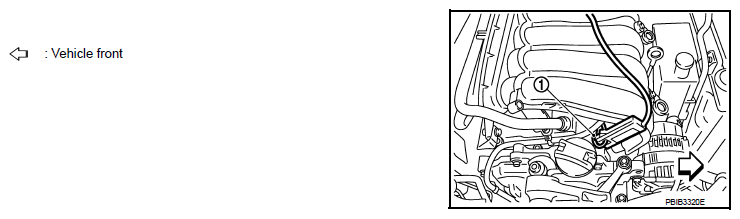

      Fig 1: Identifying Timing Light To No. 1 Ignition Coil Wire
      G07104158Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check ignition timing.

      INSPECTION END

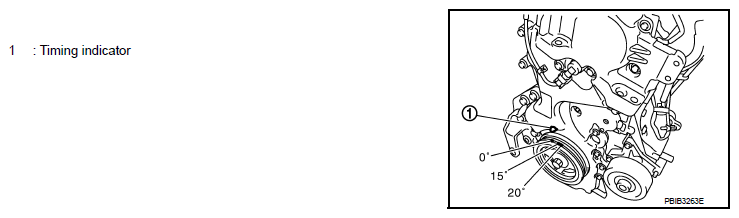

      Fig 2: Identifying Timing Indicator
      G07104159Courtesy of NISSAN MOTOR CO., U.S.A.
