Component Parts Location

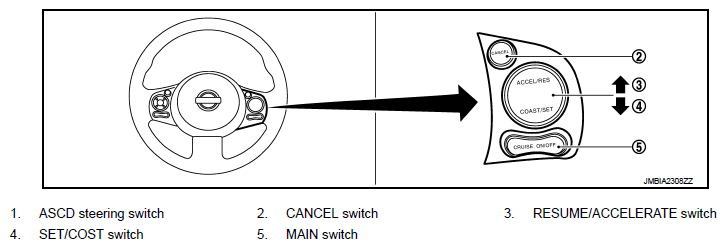

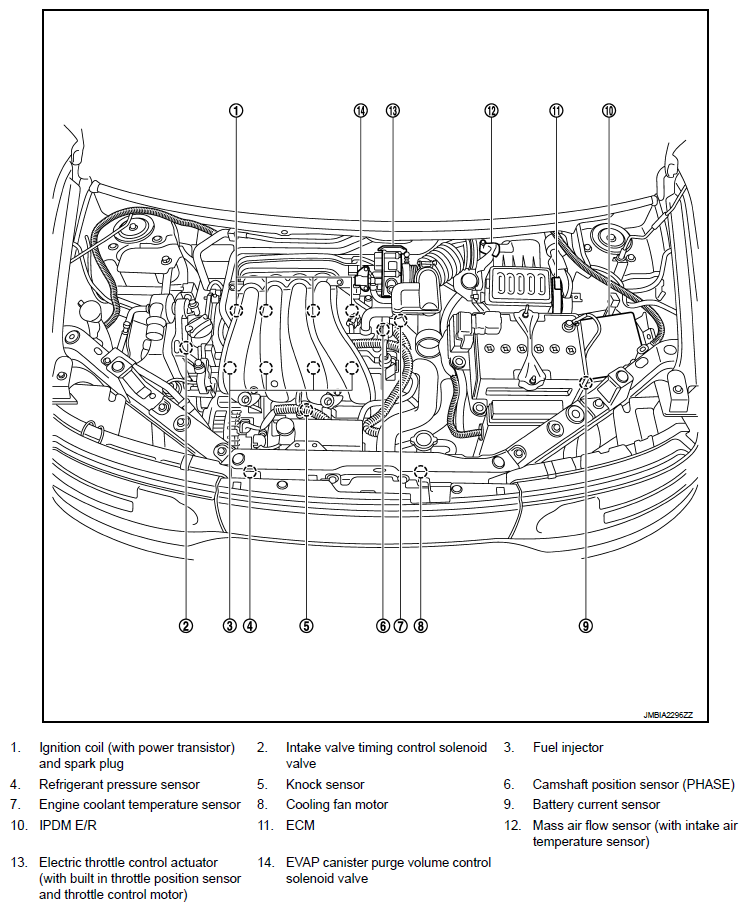

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

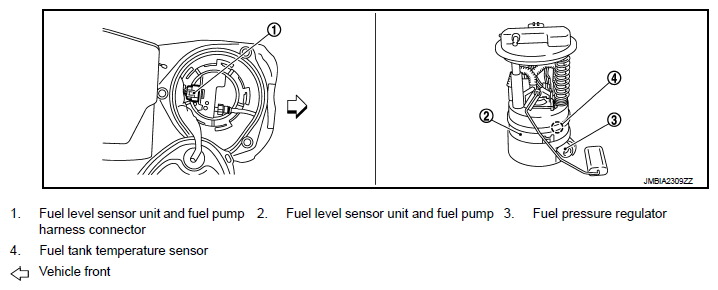

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

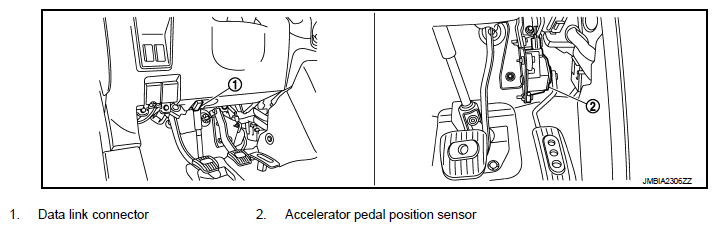

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

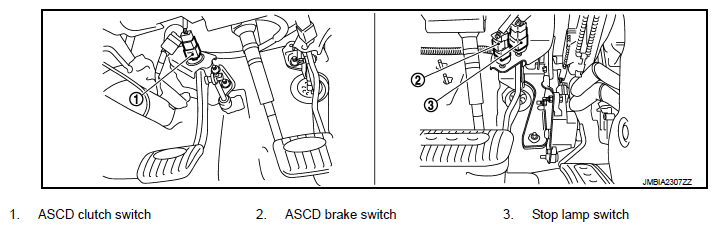

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

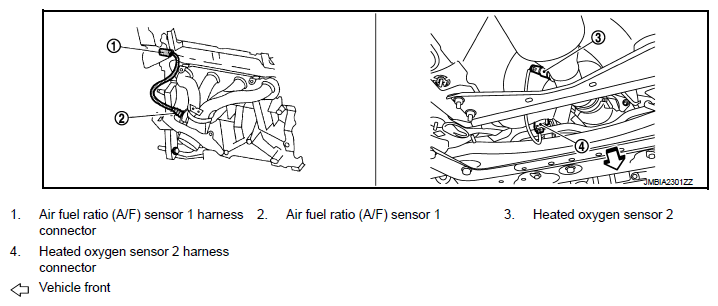

Fig 5: Identifying Automatic Speed Control Device Component Parts Location (5 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

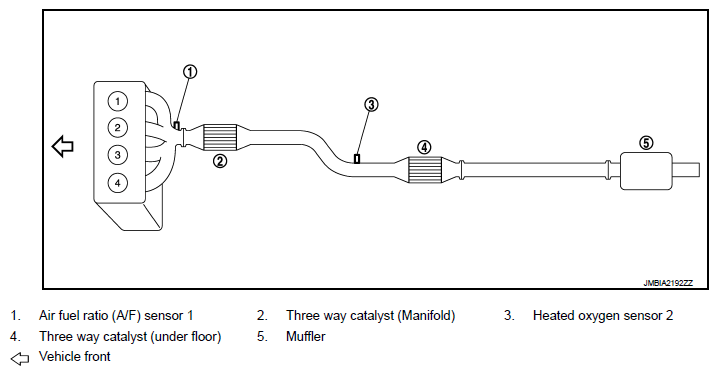

Fig 6: Identifying Automatic Speed Control Device Component Parts Location (6 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

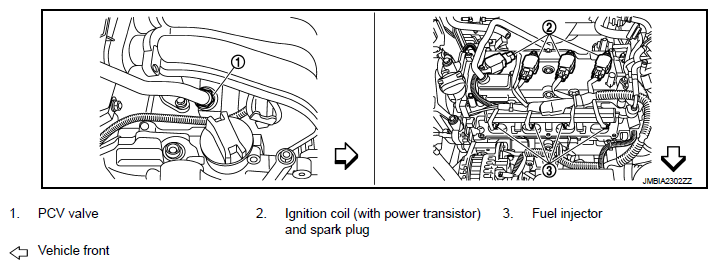

Fig 7: Identifying Automatic Speed Control Device Component Parts Location (7 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

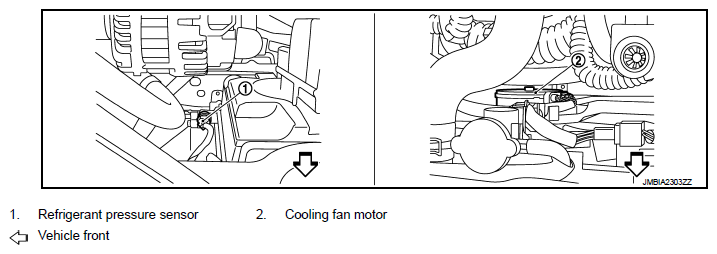

Fig 8: Identifying Automatic Speed Control Device Component Parts Location (8 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Automatic Speed Control Device Component Parts Location (9 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Automatic Speed Control Device Component Parts Location (10 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Automatic Speed Control Device Component Parts Location (11 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Automatic Speed Control Device Component Parts Location (12 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Automatic Speed Control Device Component Parts Location (13 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Automatic Speed Control Device Component Parts Location (14 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Automatic Speed Control Device Component Parts Location (15 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Automatic Speed Control Device Component Parts Location (16 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.
