IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING
    1. Attach timing light to No. 1 ignition coil (1) wire as shown in figure.

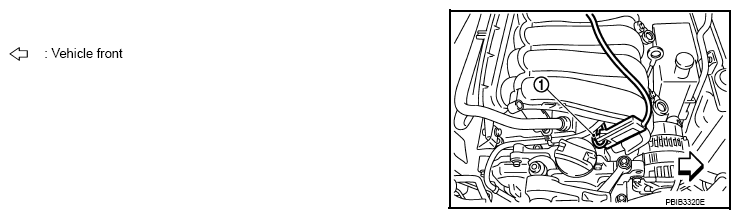

      Fig 1: Identifying No. 1 Ignition Coil
      G07104528Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check ignition timing.

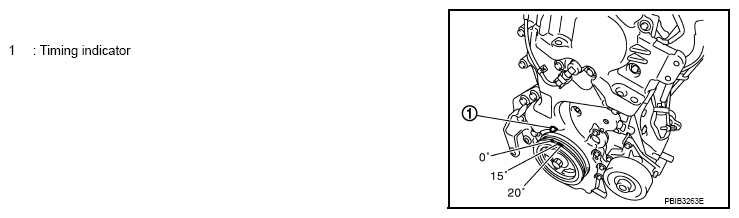

      Fig 2: Identifying Timing Indicator
      G07104529Courtesy of NISSAN MOTOR CO., U.S.A.

      INSPECTION END
