Component Parts Location

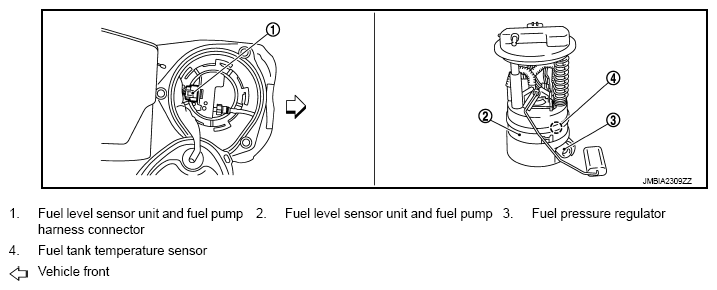

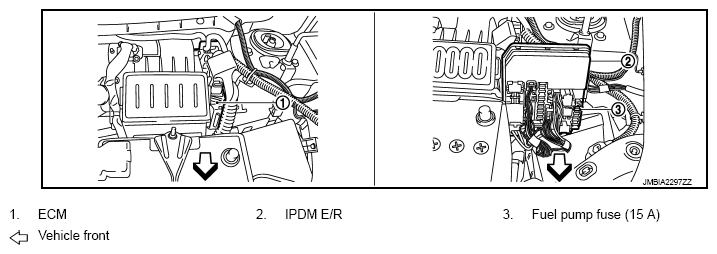

Fig 1: Air Conditioning CUT Control Components Location (1 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

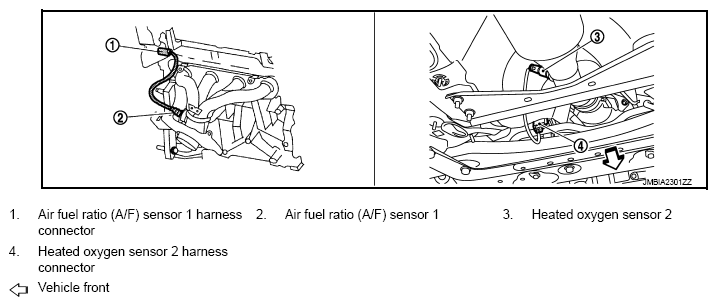

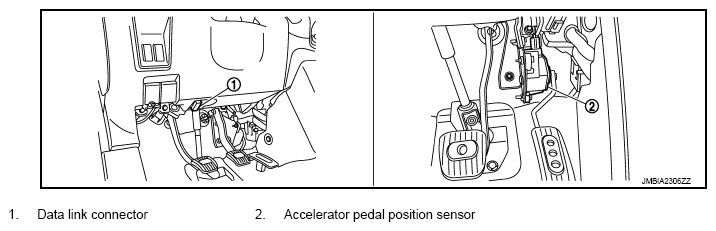

Fig 2: Air Conditioning CUT Control Components Location (2 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

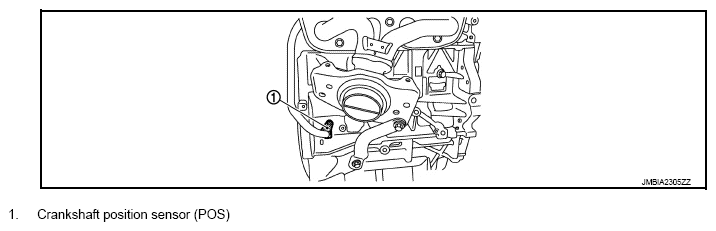

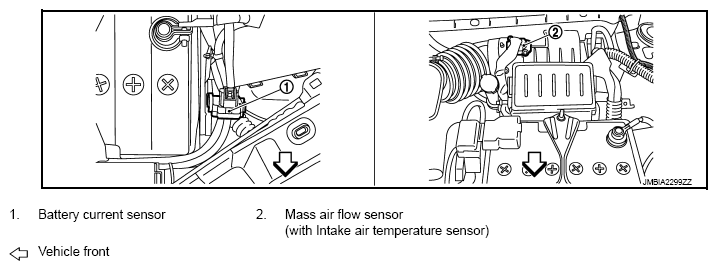

Fig 3: Air Conditioning CUT Control Components Location (3 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

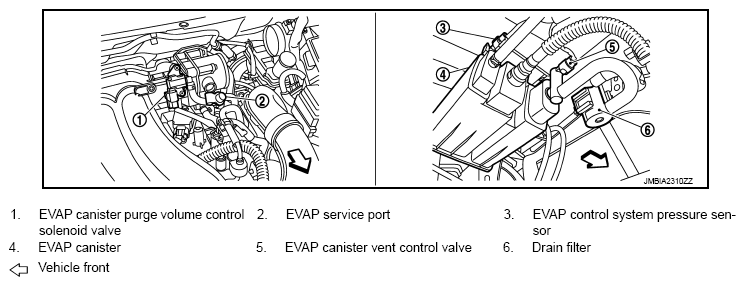

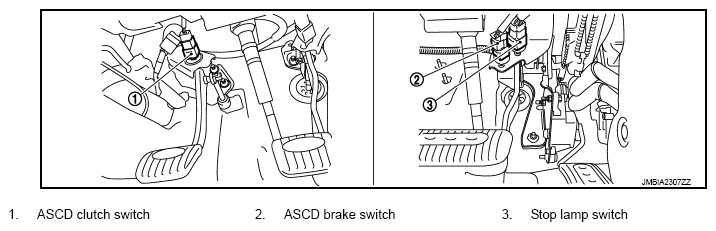

Fig 4: Air Conditioning CUT Control Components Location (4 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

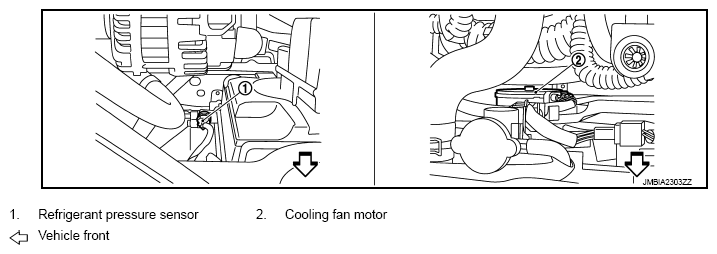

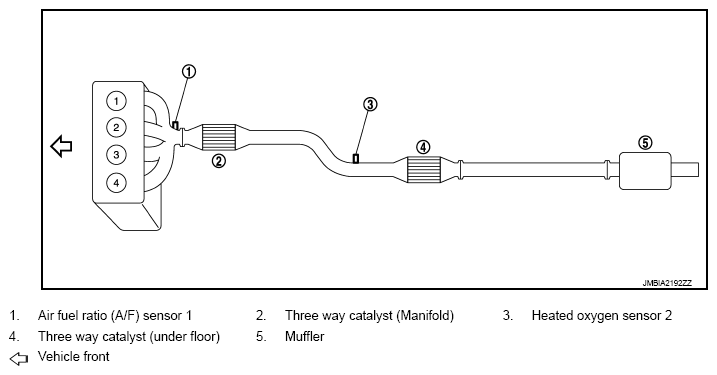

Fig 5: Air Conditioning CUT Control Components Location (5 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

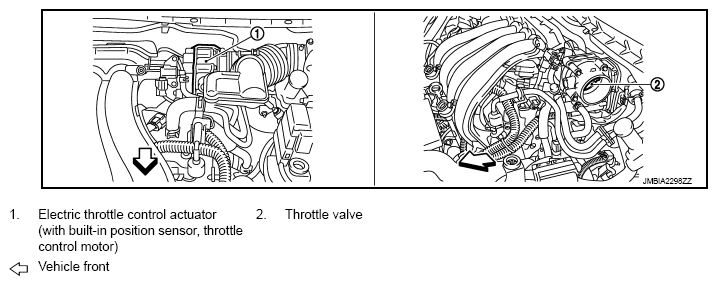

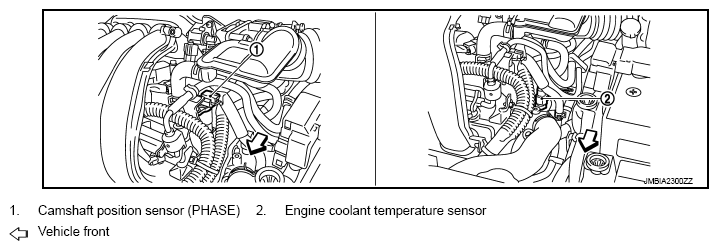

Fig 6: Air Conditioning CUT Control Components Location (6 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

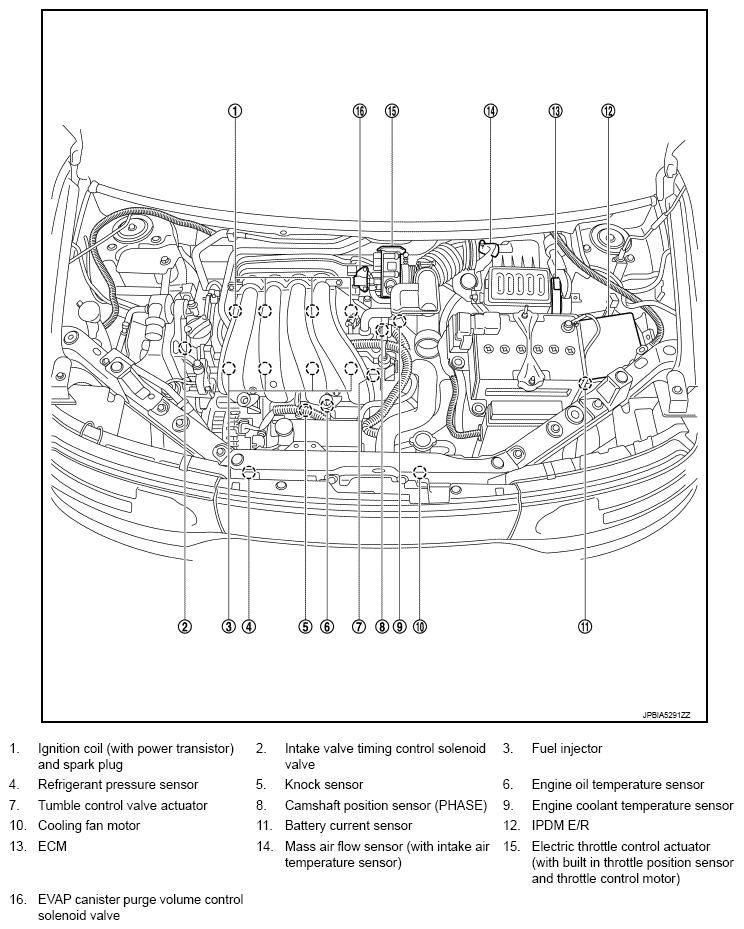

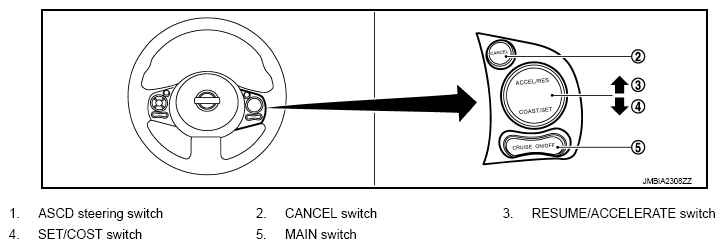

Fig 7: Air Conditioning CUT Control Components Location (7 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

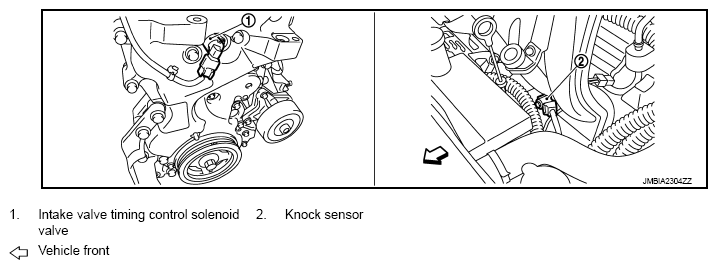

Fig 8: Air Conditioning CUT Control Components Location (8 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Air Conditioning CUT Control Components Location (9 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Air Conditioning CUT Control Components Location (10 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Air Conditioning CUT Control Components Location (11 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Air Conditioning CUT Control Components Location (12 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Air Conditioning CUT Control Components Location (13 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Air Conditioning CUT Control Components Location (14 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Air Conditioning CUT Control Components Location (15 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Air Conditioning CUT Control Components Location (16 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.
