Component Parts Location

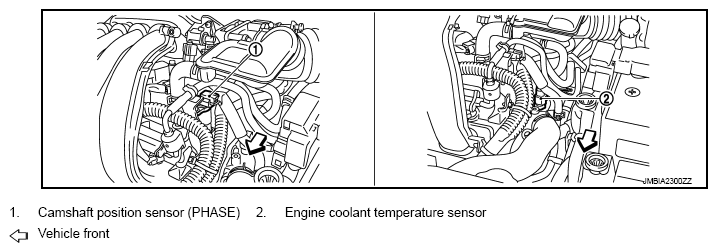

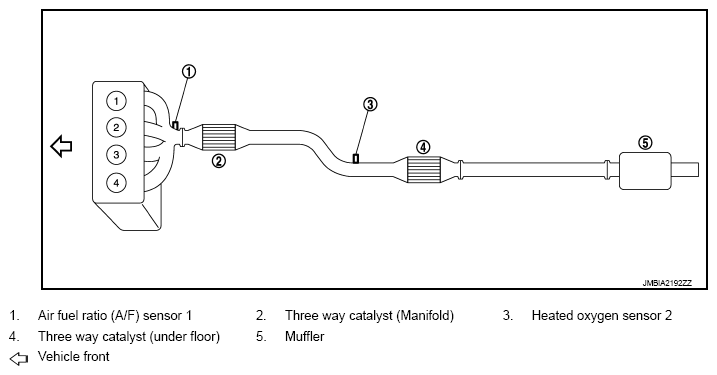

Fig 1: Automatic Speed Control Device (ASCD) Components Location (1 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

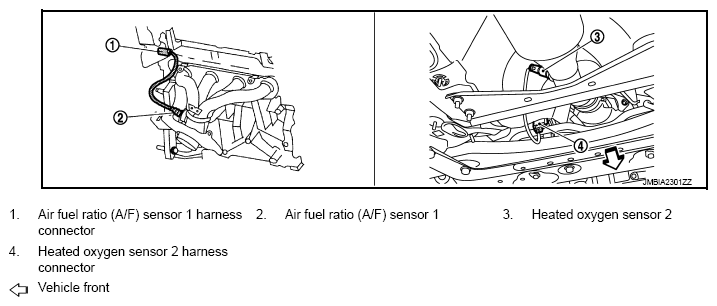

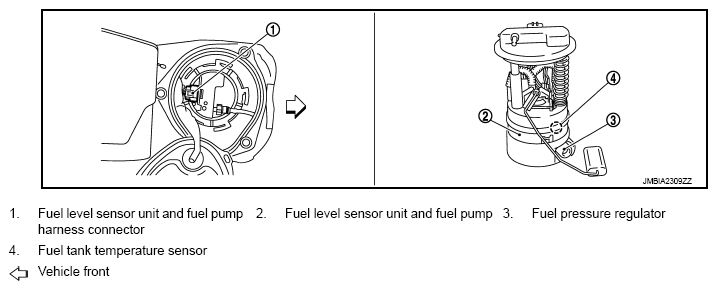

Fig 2: Automatic Speed Control Device (ASCD) Components Location (2 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

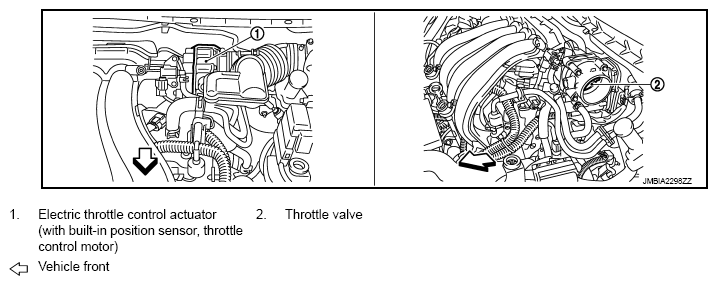

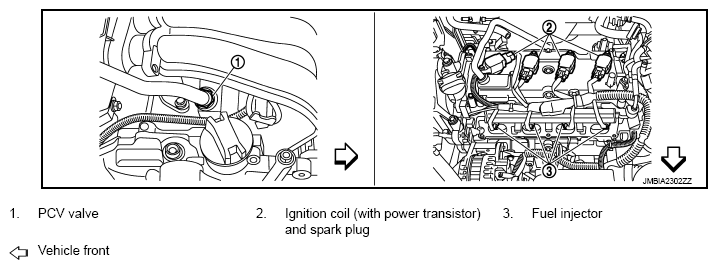

Fig 3: Automatic Speed Control Device (ASCD) Components Location (3 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

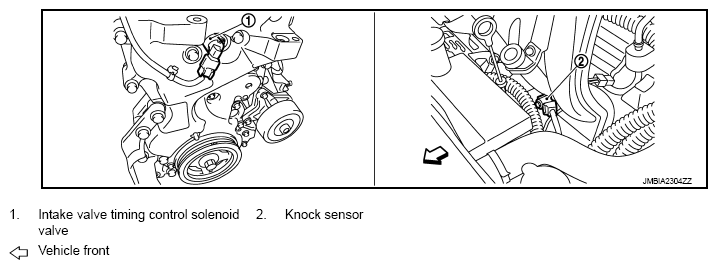

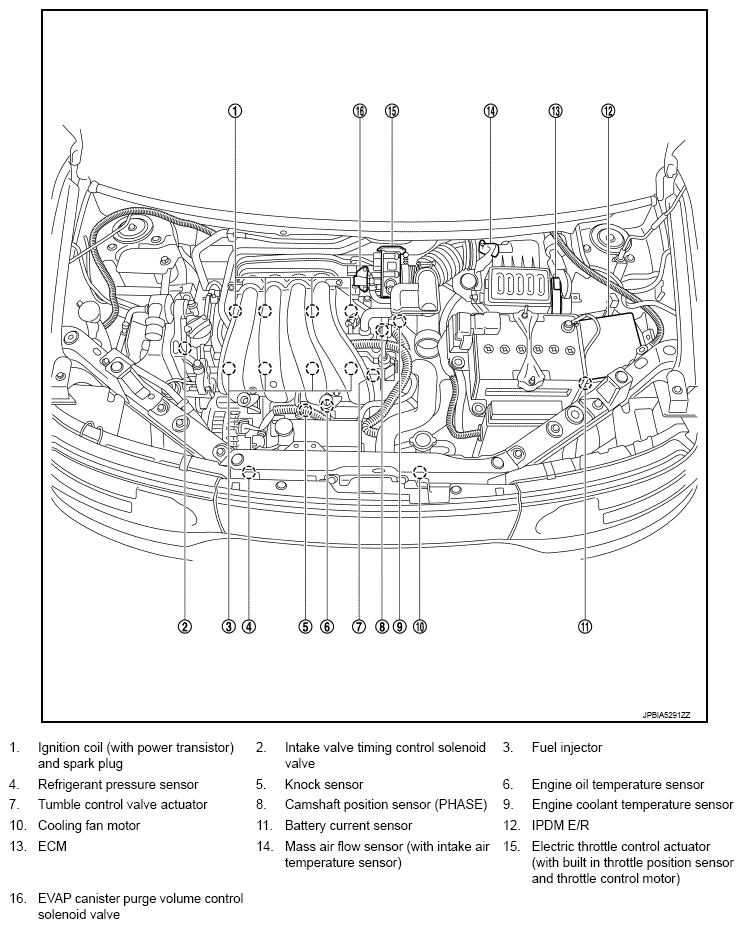

Fig 4: Automatic Speed Control Device (ASCD) Components Location (4 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

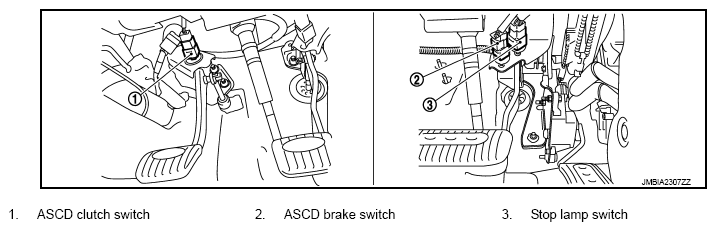

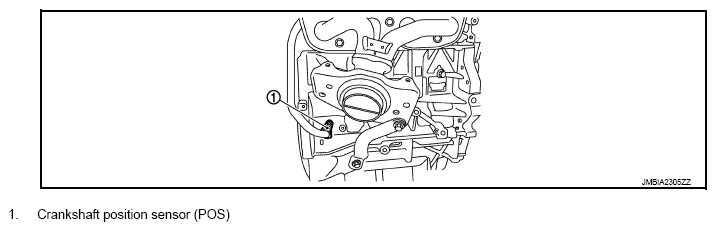

Fig 5: Automatic Speed Control Device (ASCD) Components Location (5 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

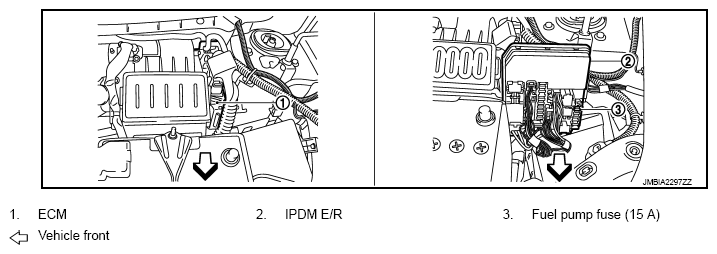

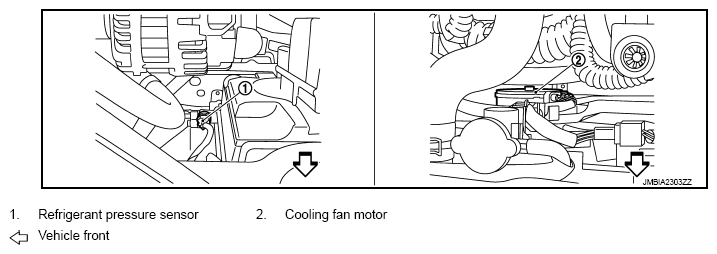

Fig 6: Automatic Speed Control Device (ASCD) Components Location (6 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

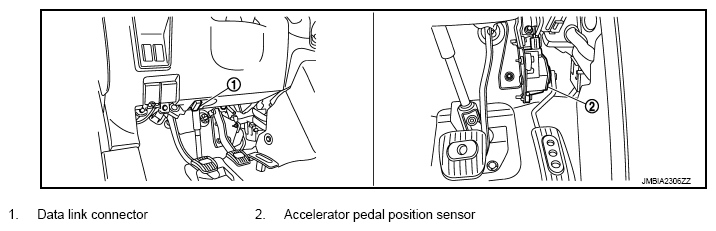

Fig 7: Automatic Speed Control Device (ASCD) Components Location (7 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

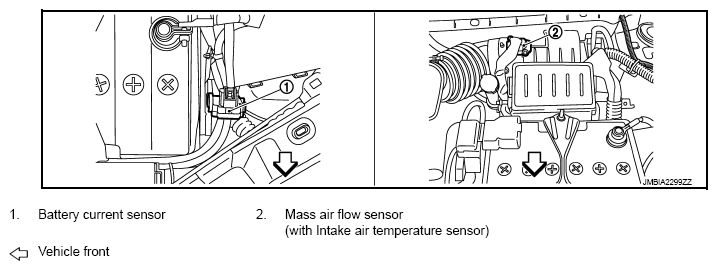

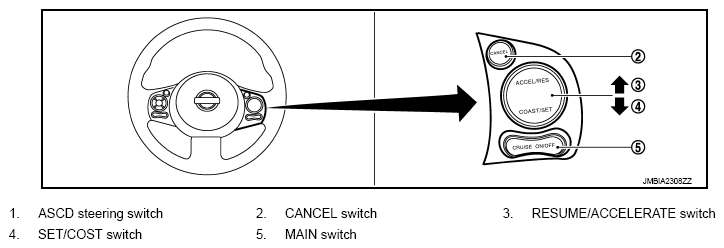

Fig 8: Automatic Speed Control Device (ASCD) Components Location (8 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Automatic Speed Control Device (ASCD) Components Location (9 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Automatic Speed Control Device (ASCD) Components Location (10 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Automatic Speed Control Device (ASCD) Components Location (11 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Automatic Speed Control Device (ASCD) Components Location (12 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Automatic Speed Control Device (ASCD) Components Location (13 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Automatic Speed Control Device (ASCD) Components Location (14 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Automatic Speed Control Device (ASCD) Components Location (15 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Automatic Speed Control Device (ASCD) Components Location (16 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.
