Component Parts Location

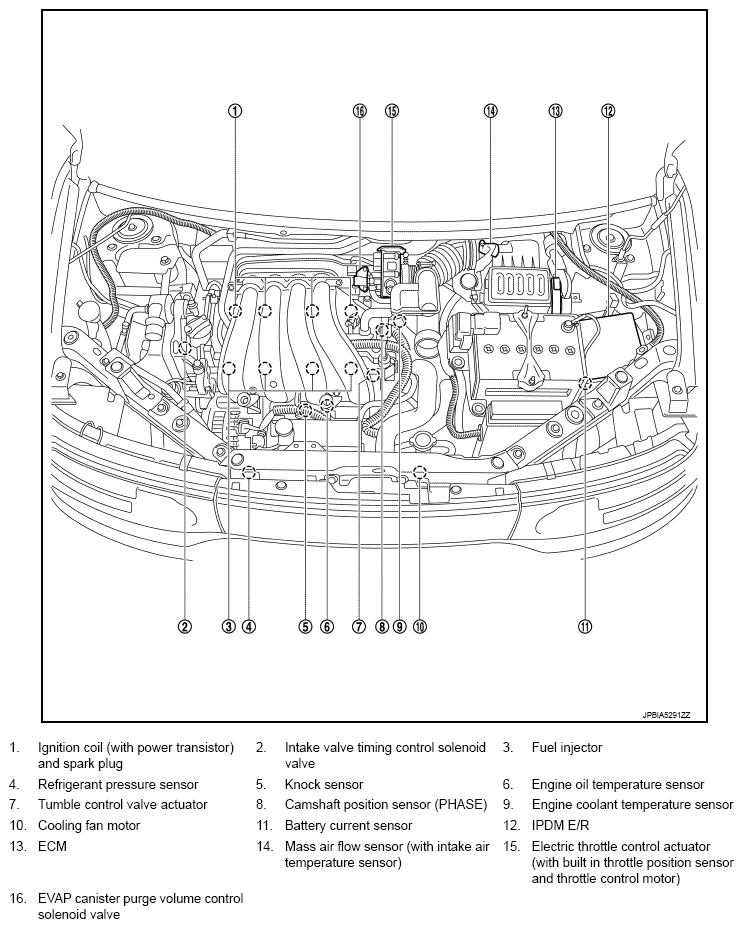

Fig 1: Intake Valve Timing Control Components Location (1 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

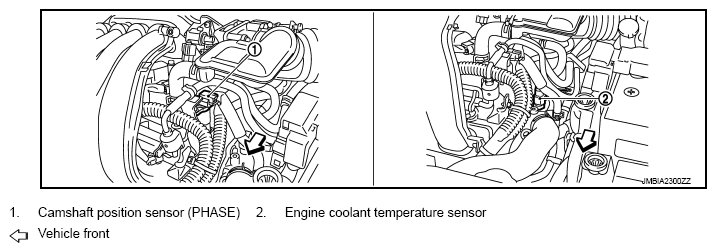

Fig 2: Intake Valve Timing Control Components Location (2 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

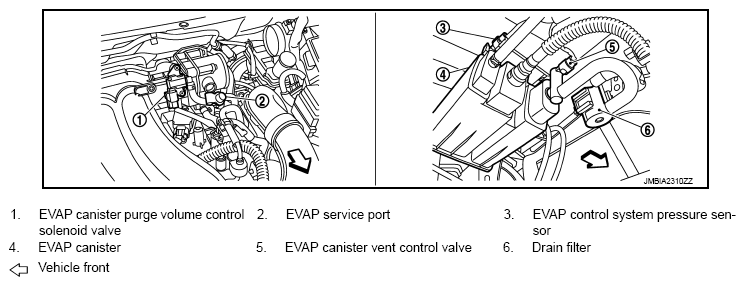

Fig 3: Intake Valve Timing Control Components Location (3 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Intake Valve Timing Control Components Location (4 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Intake Valve Timing Control Components Location (5 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Intake Valve Timing Control Components Location (6 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Intake Valve Timing Control Components Location (7 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Intake Valve Timing Control Components Location (8 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Intake Valve Timing Control Components Location (9 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Intake Valve Timing Control Components Location (10 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Intake Valve Timing Control Components Location (11 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Intake Valve Timing Control Components Location (12 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Intake Valve Timing Control Components Location (13 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Intake Valve Timing Control Components Location (14 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Intake Valve Timing Control Components Location (15 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Intake Valve Timing Control Components Location (16 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.
