Transmitter Wake-Up Operation

NOTE: New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II Tool J-50190 before ID registration can be performed. Use the following procedure when using the Transmitter Activation Tool J-45295.

With the ignition switch in OFF position, connect scan tool to the Data Link Connector (DLC). Turn ignition switch to ON position.
Display "WORK SUPPORT" screen, and select "ID REGIST".
With the Transmitter Activation Tool (J-45295) pushed against the left front tire air-valve, press the button for 5 seconds. See Figure. Sensor activation must be performed in the order listed: Left Front, Right Front, Right Rear, Left Rear.

As each sensor ID is activated, the TPMS warning light flashes is the pattern shown in Fig 1, and the scan tool indicator light changes from red to green.

Check that the turn signal lights blink twice when the transmitter wake-up procedure for all wheels is completed.
After completing wake up of all transmitters, make sure TPMS warning light goes out.

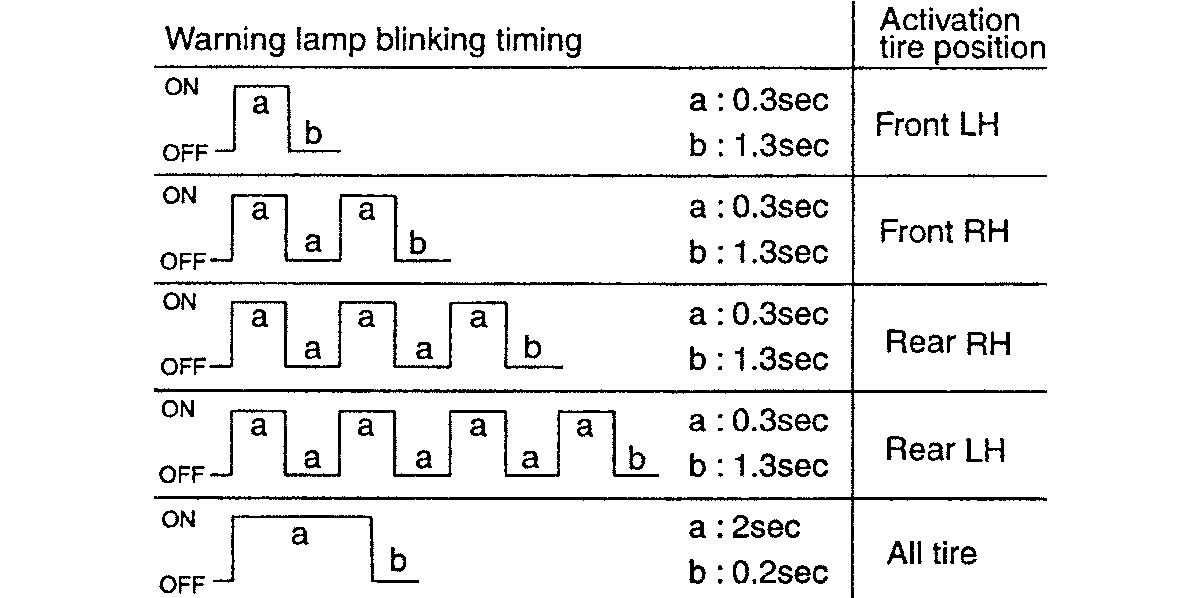

Fig 1: TPMS Warning Light Wake-Up Blink Timing Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
