Component Inspection (Cooling Fan Relay)

  1. CHECK COOLING FAN RELAY
    1. Disconnect cooling fan relays -2, -3 harness connectors.
    2. Check continuity between cooling fan relay -2, -3 terminals under the following conditions.
      CONTINUITY CHART

      Terminals Conditions Continuity
      3 and 5
      6 and 7      		 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

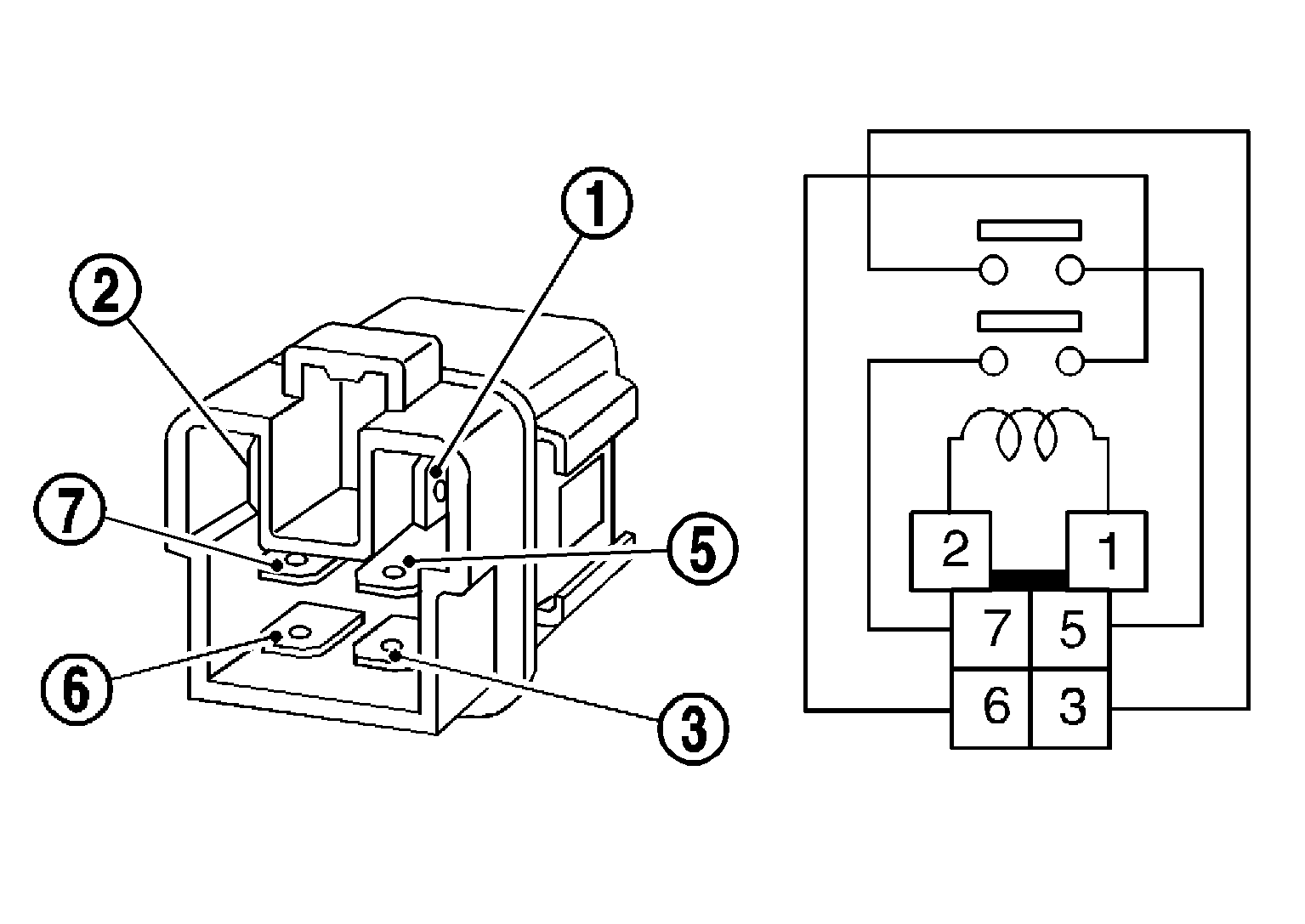

      Fig 1: Checking Continuity Between Cooling Fan Relay -2, 3 Terminals
      G04886596Courtesy of NISSAN MOTOR CO., U.S.A.

      Is the inspection result normal?

      YES >> INSPECTION END

      NO >> Replace cooling fan relay.
