Wiring Diagram-ENGINE CONTROL SYSTEM-

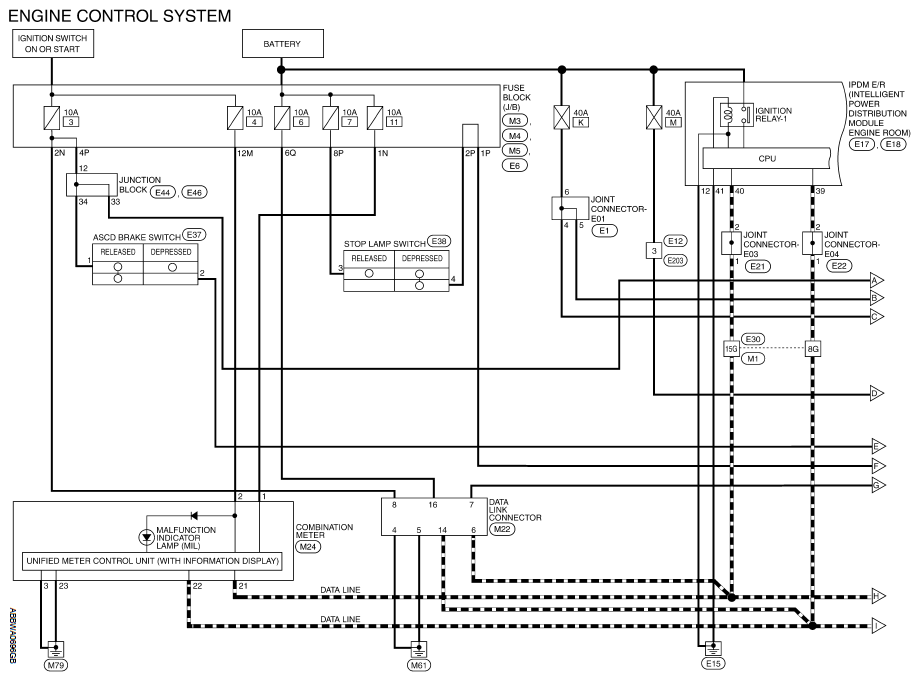

Fig 1: Engine Control System - Wiring Diagram (1 Of 8)
G06990239Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Engine Control System - Wiring Diagram (2 Of 8)
G06658494Courtesy of NISSAN MOTOR CO., U.S.A.

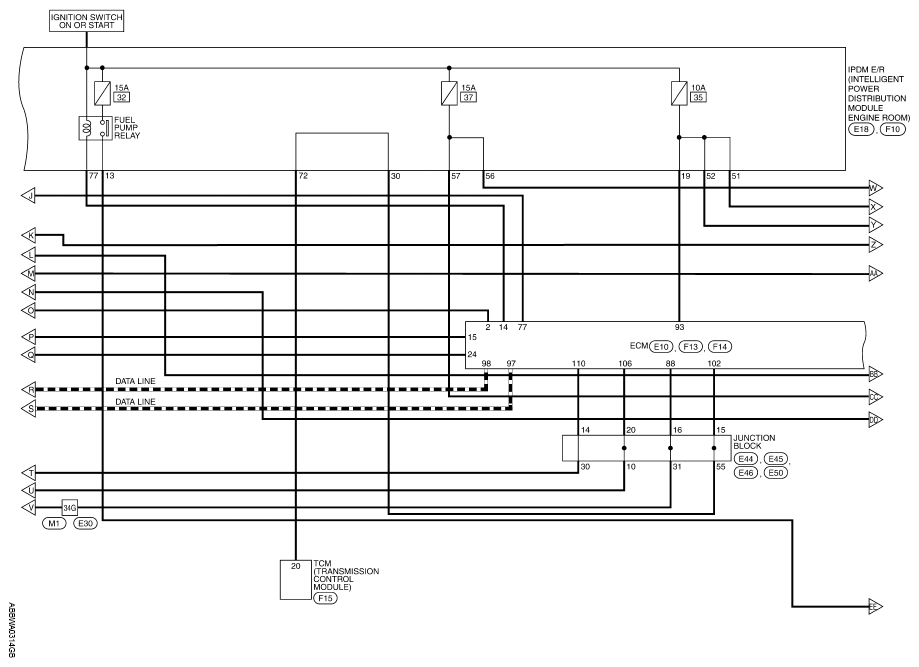

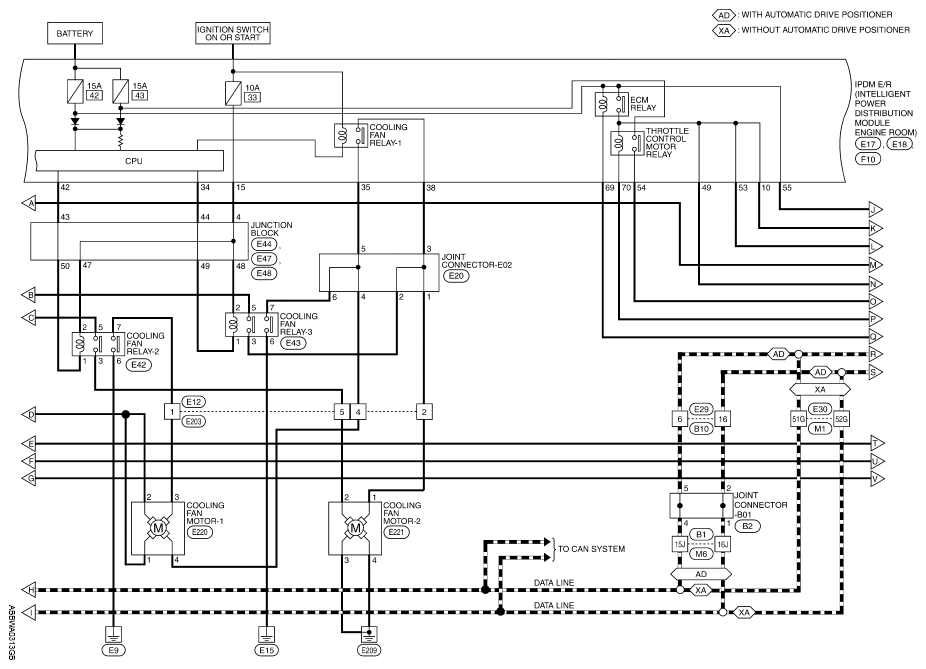

Fig 3: Engine Control System - Wiring Diagram (3 Of 8)
G06658495Courtesy of NISSAN MOTOR CO., U.S.A.

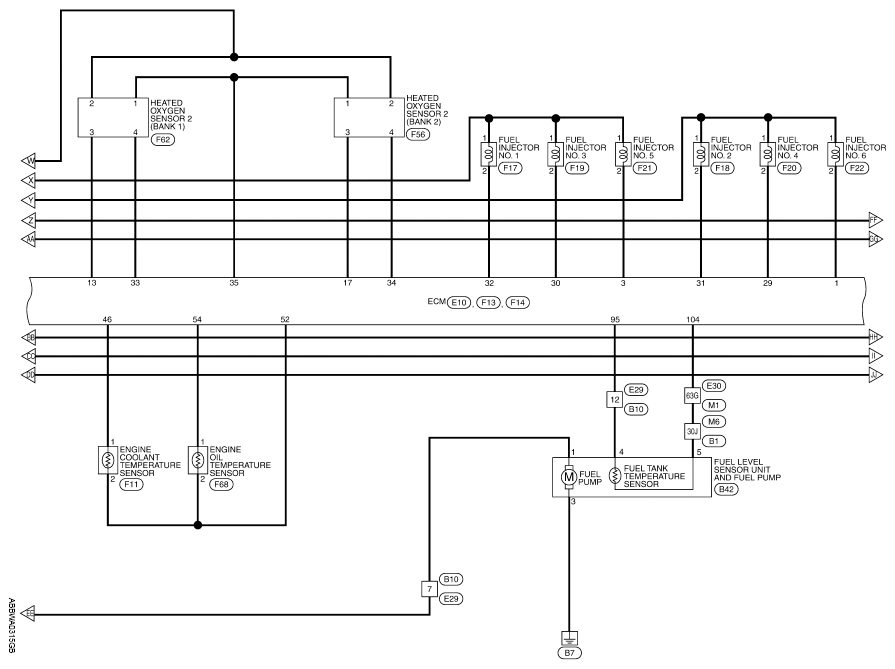

Fig 4: Engine Control System - Wiring Diagram (4 Of 8)
G06658496Courtesy of NISSAN MOTOR CO., U.S.A.

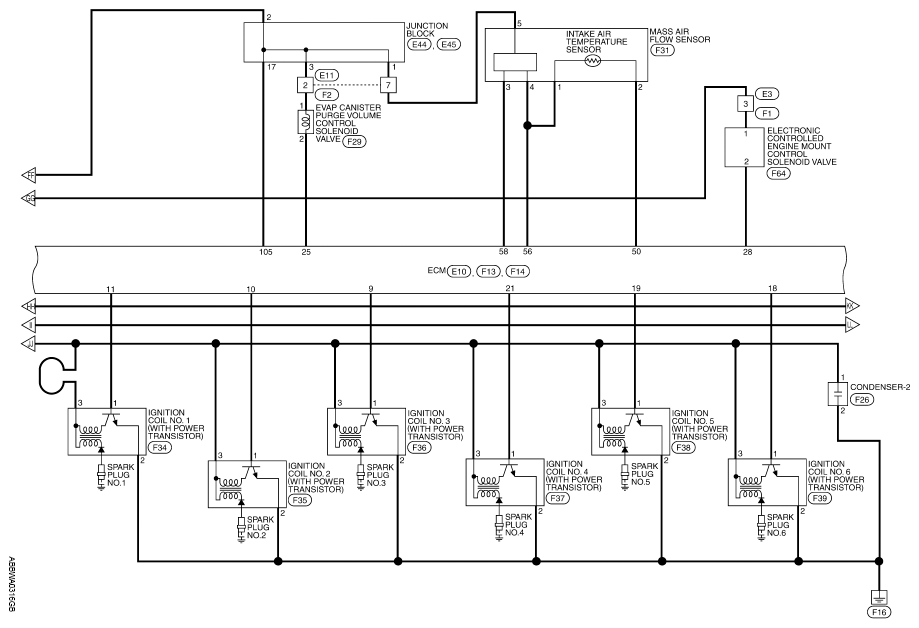

Fig 5: Engine Control System - Wiring Diagram (5 Of 8)
G06658497Courtesy of NISSAN MOTOR CO., U.S.A.

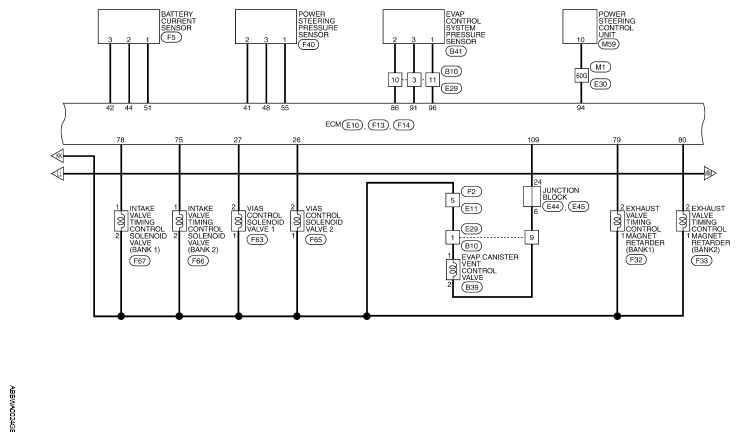

Fig 6: Engine Control System - Wiring Diagram (6 Of 8)
G05870047Courtesy of NISSAN MOTOR CO., U.S.A.

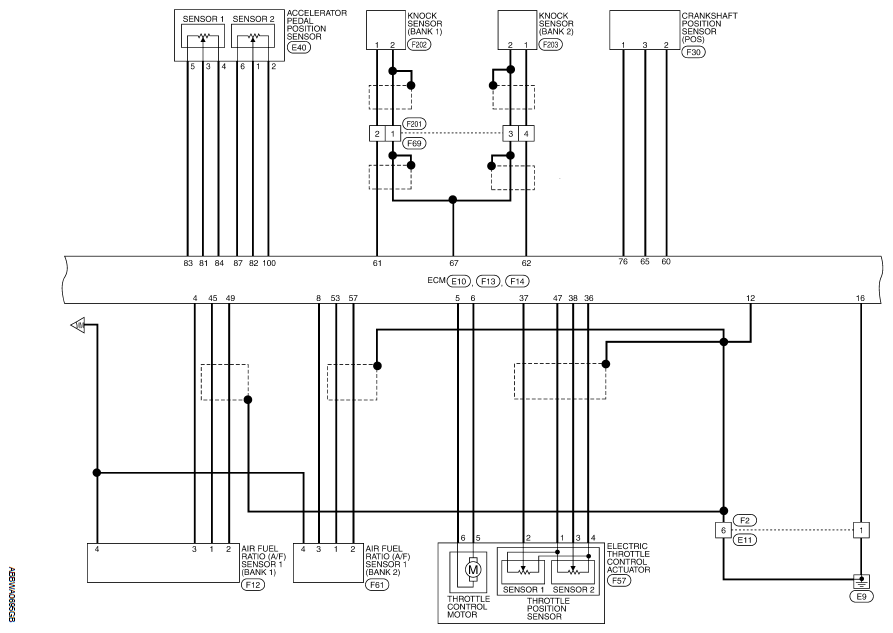

Fig 7: Engine Control System - Wiring Diagram (7 Of 8)
G06990245Courtesy of NISSAN MOTOR CO., U.S.A.

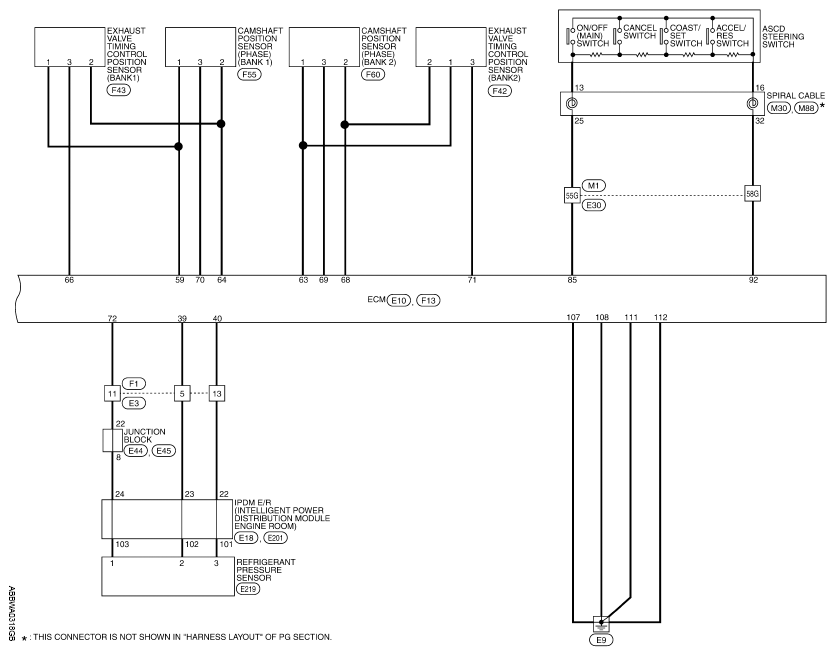

Fig 8: Engine Control System - Wiring Diagram (8 Of 8)
G06658500Courtesy of NISSAN MOTOR CO., U.S.A.

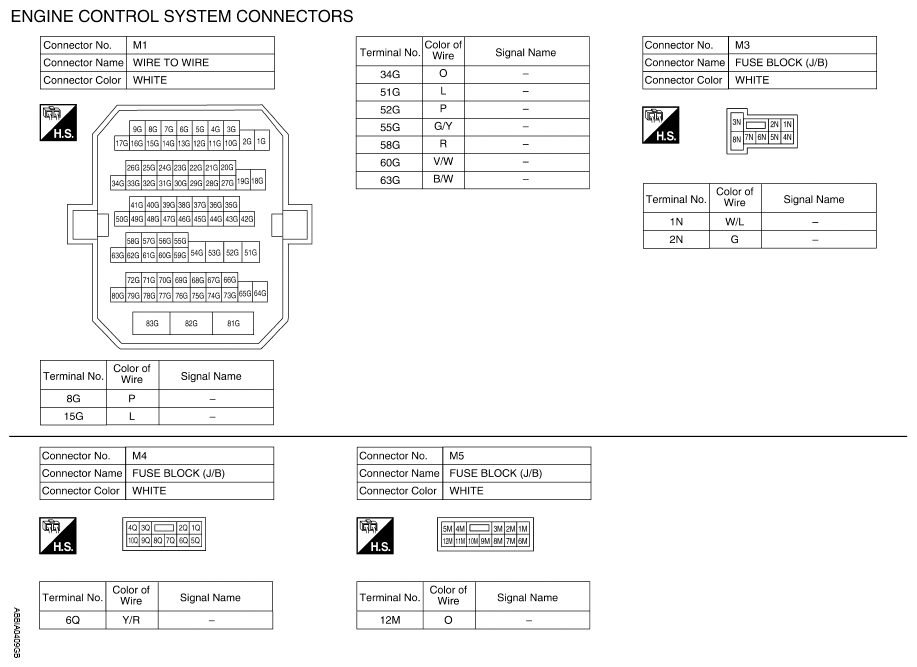

Fig 9: Identifying Engine Control System Connectors (1 Of 19)
G06658501Courtesy of NISSAN MOTOR CO., U.S.A.

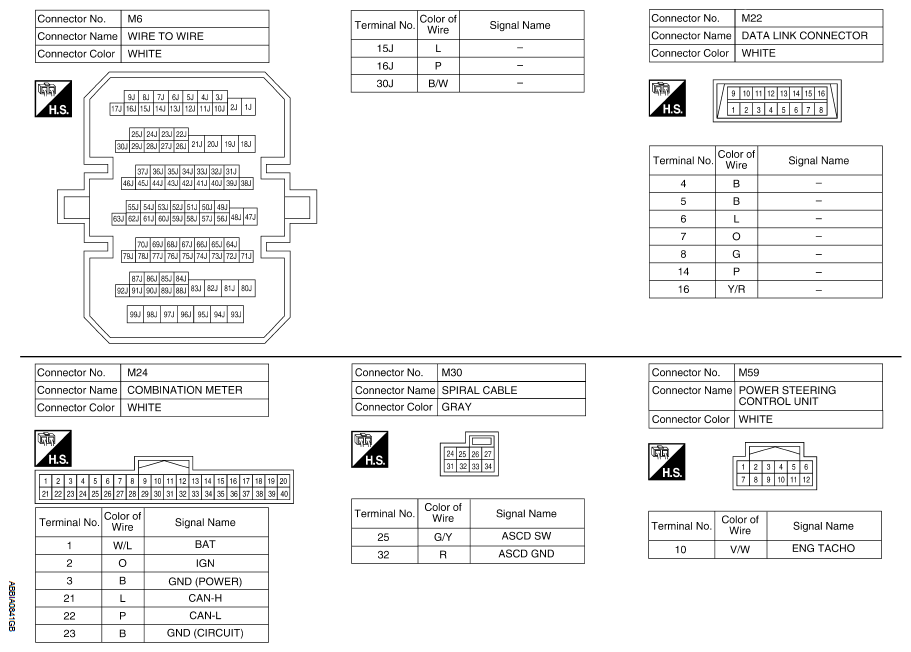

Fig 10: Identifying Engine Control System Connectors (2 Of 19)
G06990248Courtesy of NISSAN MOTOR CO., U.S.A.

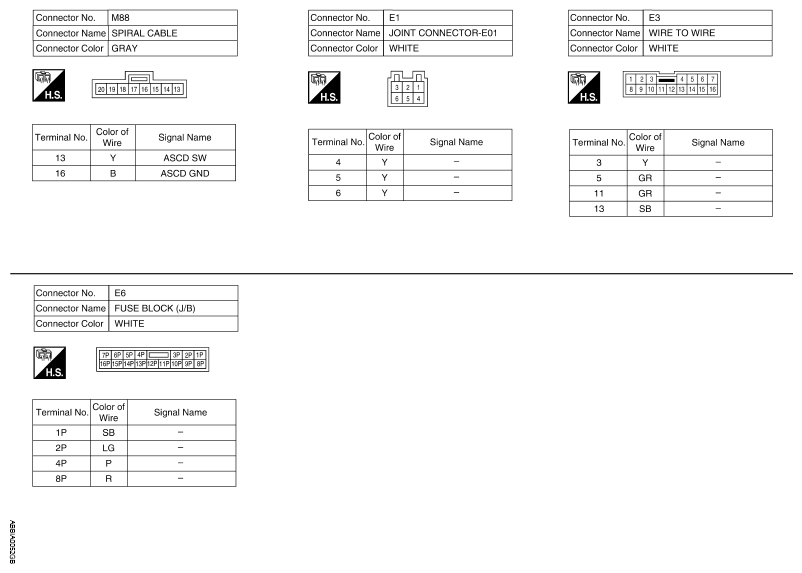

Fig 11: Identifying Engine Control System Connectors (3 Of 19)
G05870052Courtesy of NISSAN MOTOR CO., U.S.A.

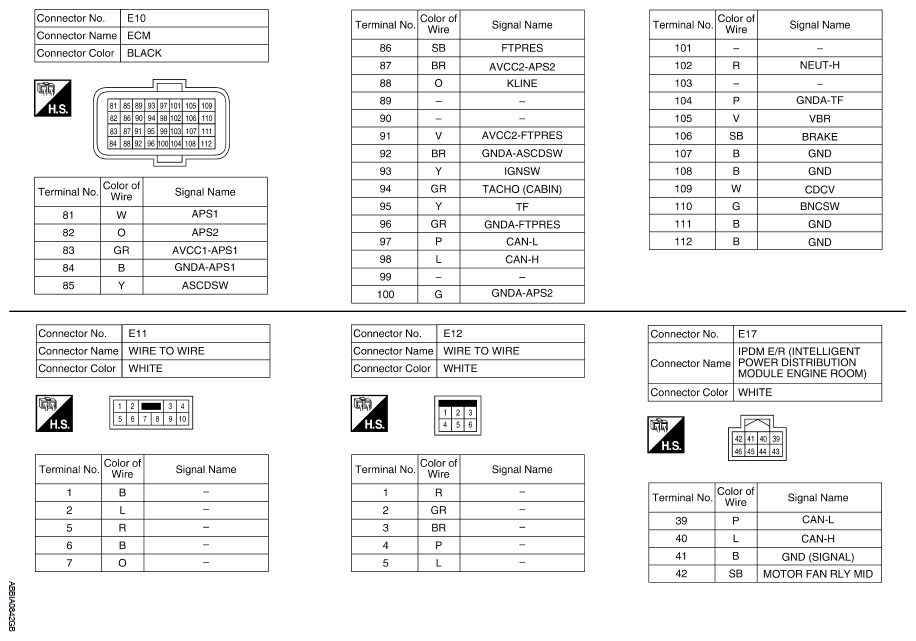

Fig 12: Identifying Engine Control System Connectors (4 Of 19)
G06990250Courtesy of NISSAN MOTOR CO., U.S.A.

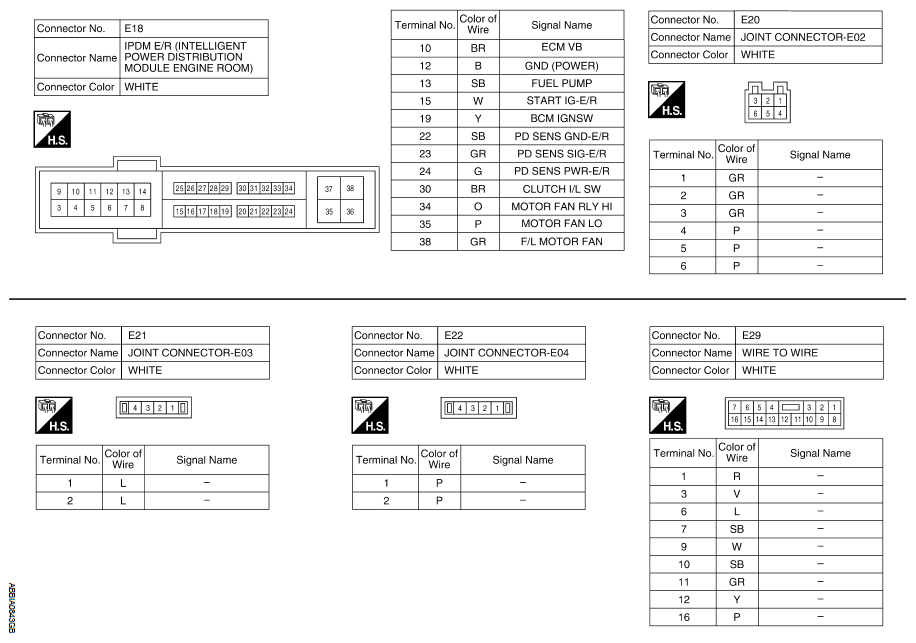

Fig 13: Identifying Engine Control System Connectors (5 Of 19)
G06990251Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Identifying Engine Control System Connectors (6 Of 19)
G06658506Courtesy of NISSAN MOTOR CO., U.S.A.

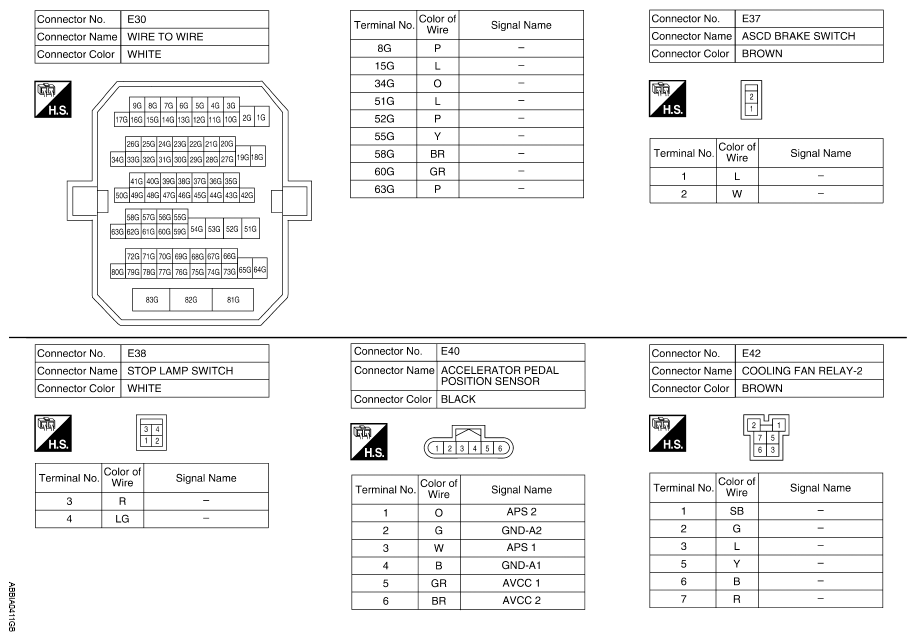

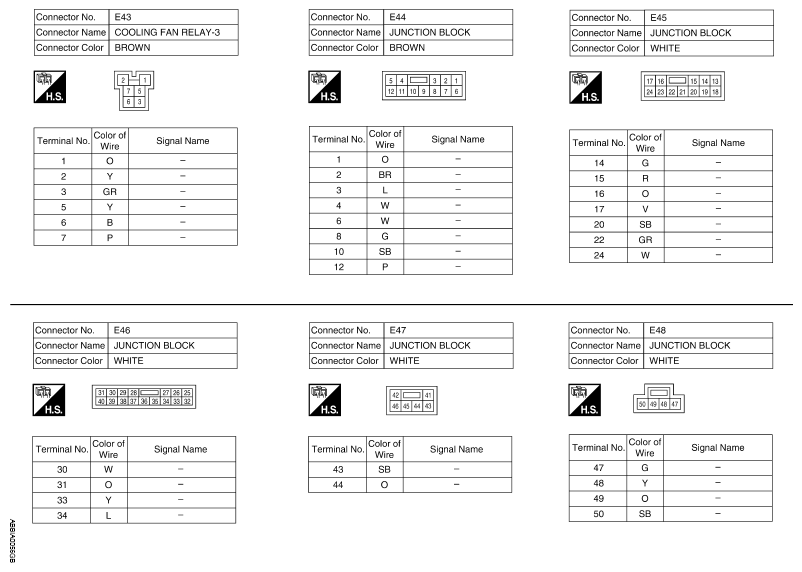

Fig 15: Identifying Engine Control System Connectors (7 Of 19)
G05870056Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 16: Identifying Engine Control System Connectors (8 Of 19)
G06990254Courtesy of NISSAN MOTOR CO., U.S.A.

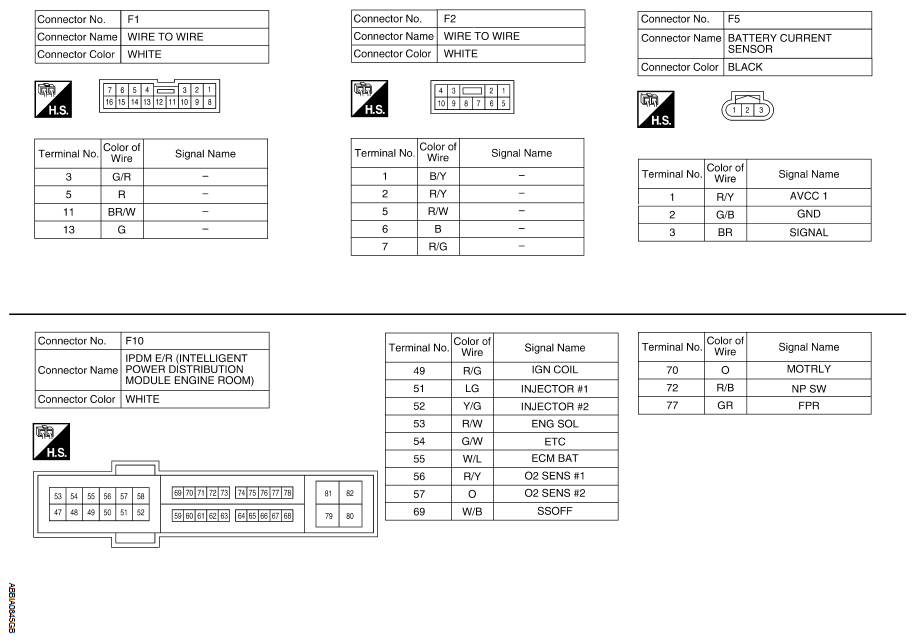

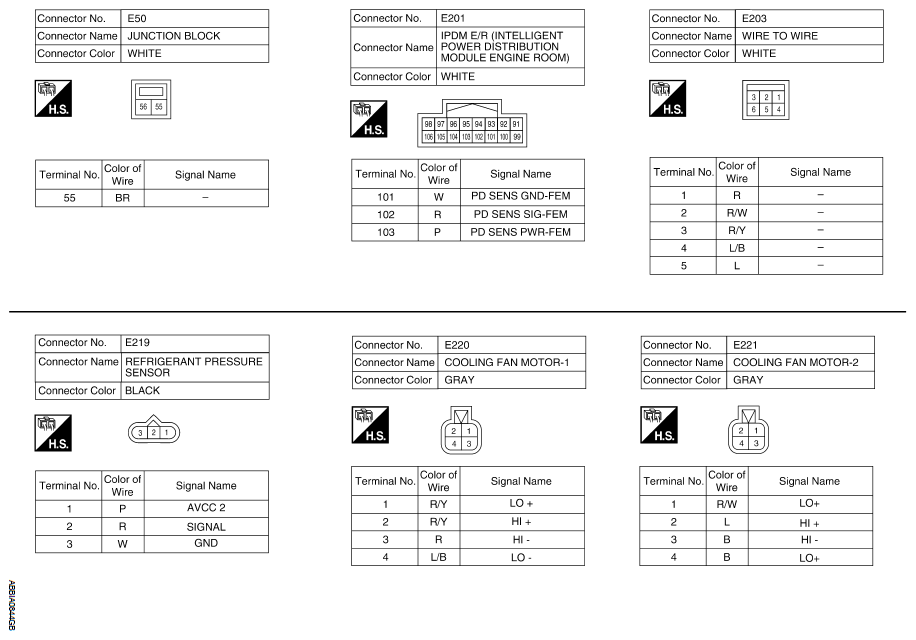

Fig 17: Identifying Engine Control System Connectors (9 Of 19)
G06990255Courtesy of NISSAN MOTOR CO., U.S.A.

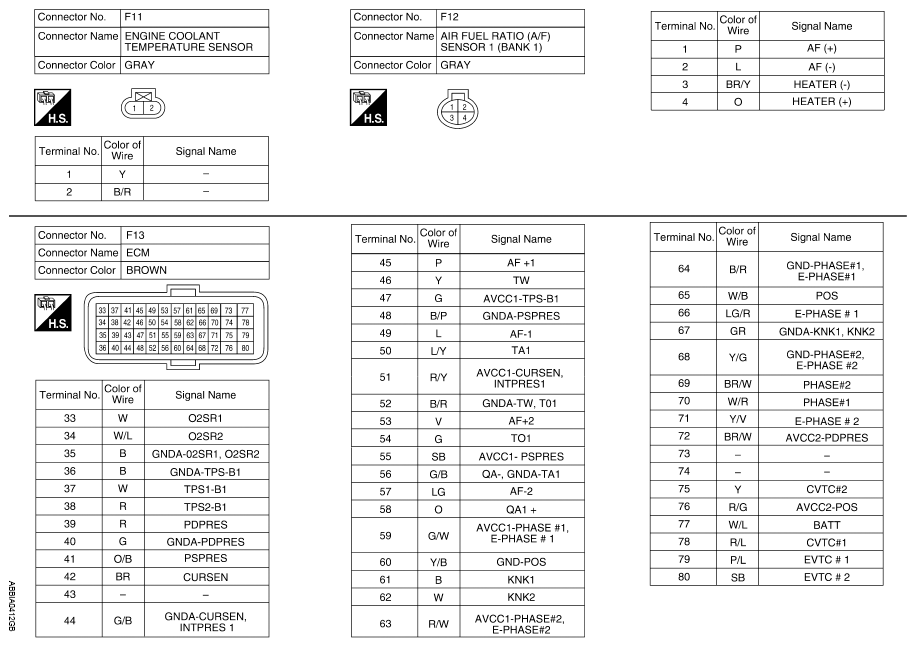

Fig 18: Identifying Engine Control System Connectors (10 Of 19)
G06658510Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying Engine Control System Connectors (11 Of 19)
G06990257Courtesy of NISSAN MOTOR CO., U.S.A.

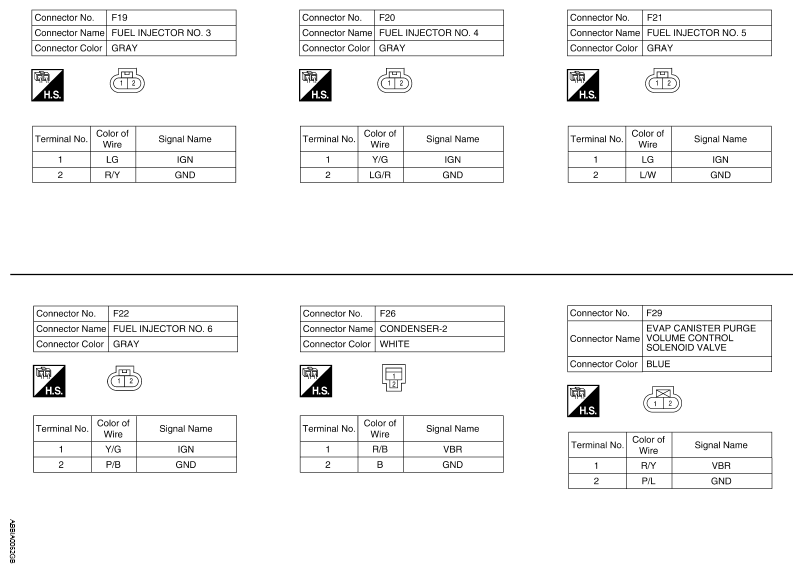

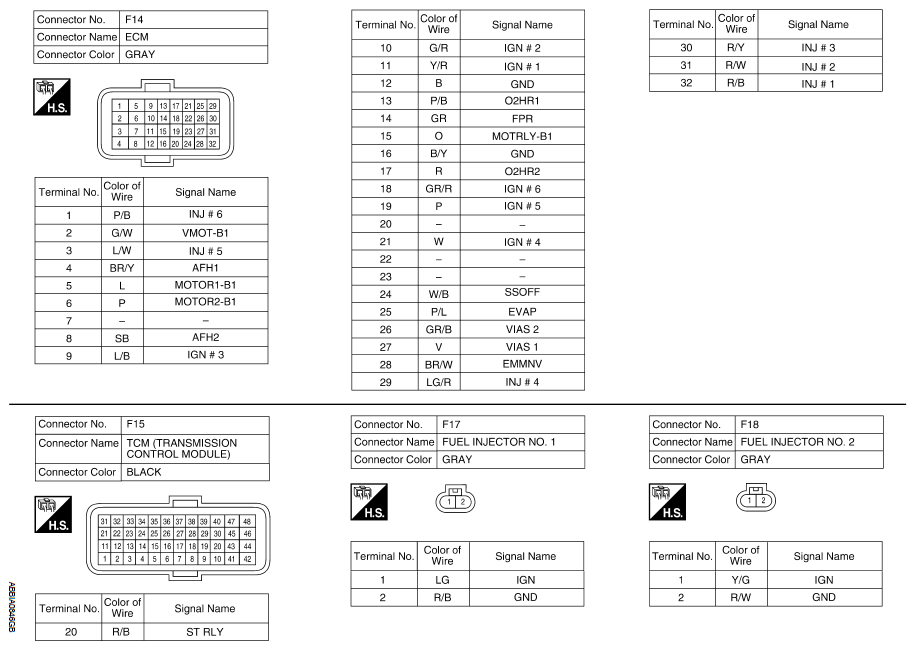

Fig 20: Identifying Engine Control System Connectors (12 Of 19)
G05870061Courtesy of NISSAN MOTOR CO., U.S.A.

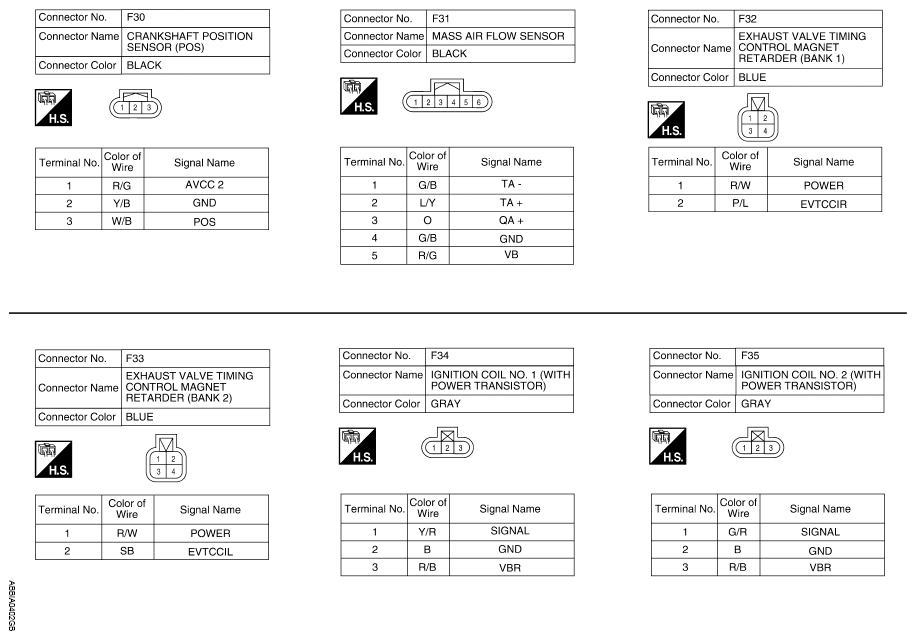

Fig 21: Identifying Engine Control System Connectors (13 Of 19)
G06658513Courtesy of NISSAN MOTOR CO., U.S.A.

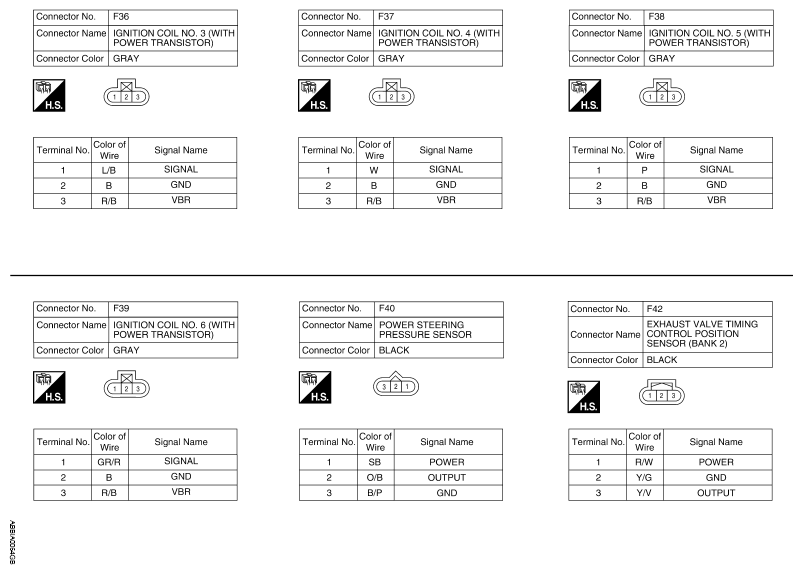

Fig 22: Identifying Engine Control System Connectors (14 Of 19)
G05870063Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 23: Identifying Engine Control System Connectors (15 Of 19)
G05870064Courtesy of NISSAN MOTOR CO., U.S.A.

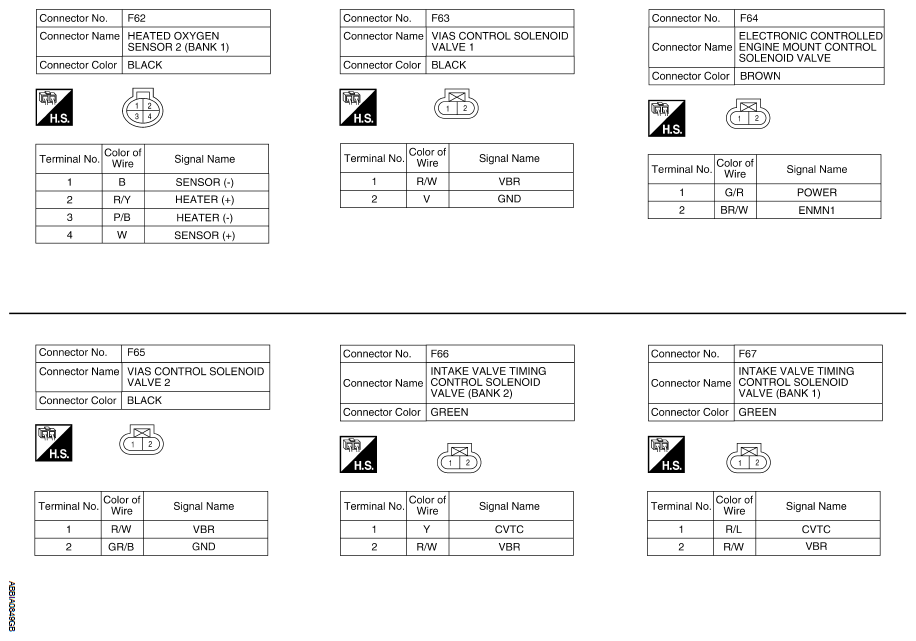

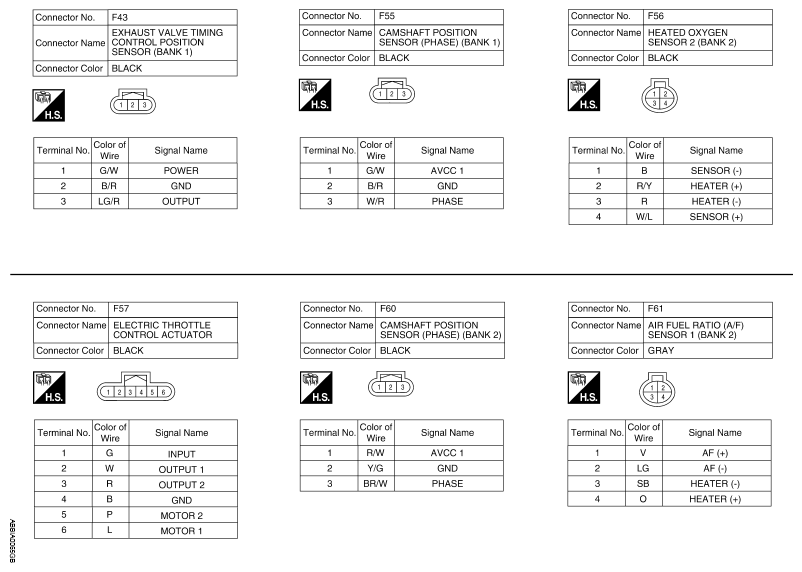

Fig 24: Identifying Engine Control System Connectors (16 Of 19)
G06990262Courtesy of NISSAN MOTOR CO., U.S.A.

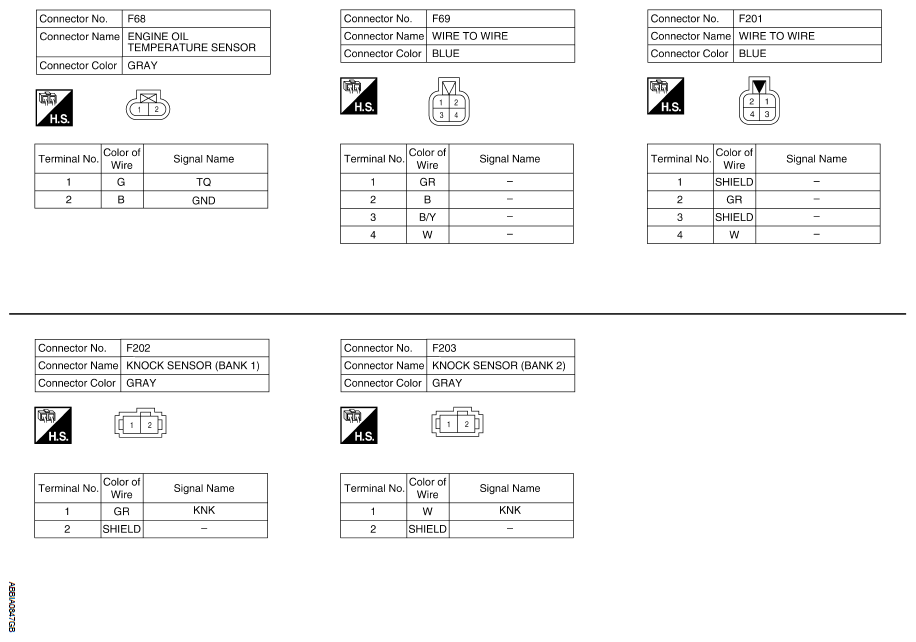

Fig 25: Identifying Engine Control System Connectors (17 Of 19)
G06990263Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 26: Identifying Engine Control System Connectors (18 Of 19)
G05870067Courtesy of NISSAN MOTOR CO., U.S.A.

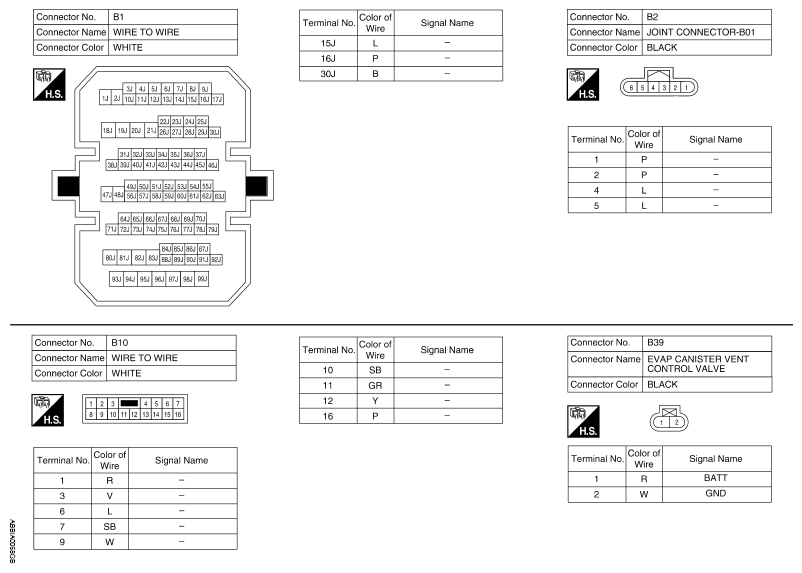

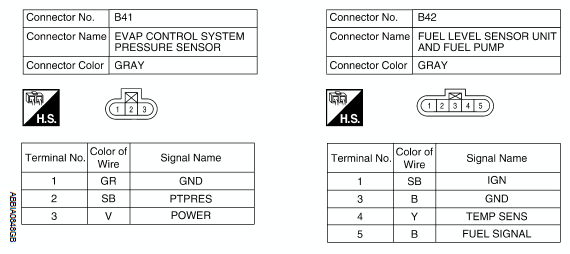

Fig 27: Identifying Engine Control System Connectors (19 Of 19)
G06990265Courtesy of NISSAN MOTOR CO., U.S.A.
