Component Parts Location

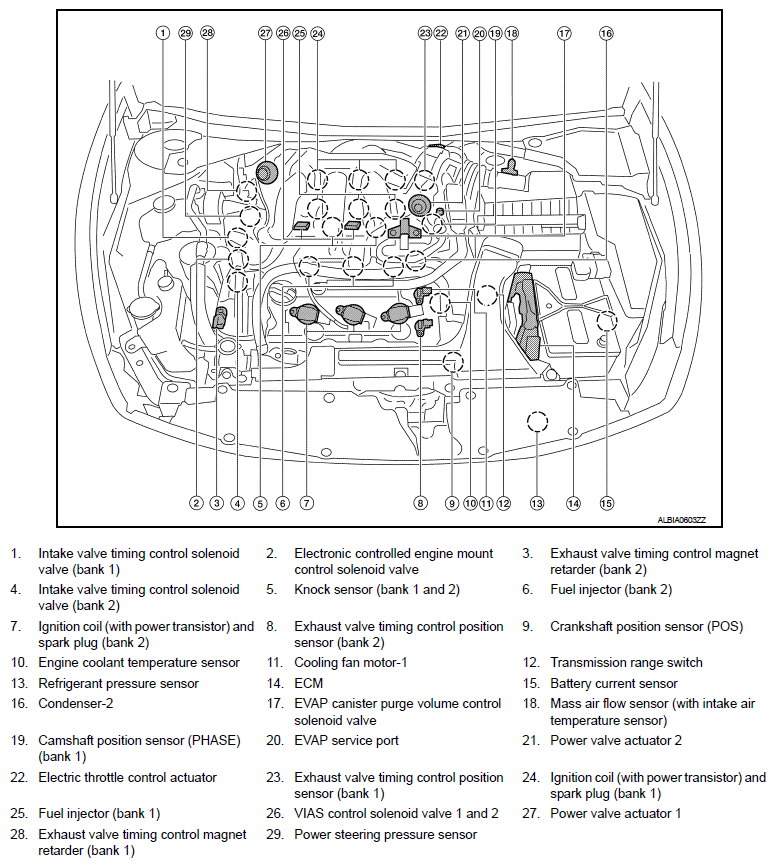

Fig 1: Identifying Cooling Fan Control System Component Parts Location (1 Of 2)
G06989831Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Cooling Fan Control System Component Parts Location (2 Of 2)
G06989832Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Cooling Fan Control System Three Way Catalyst Converter And Muffler
G06557631Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Cooling Fan Control System Component Parts Location (1 Of 4)
G06989834Courtesy of NISSAN MOTOR CO., U.S.A.

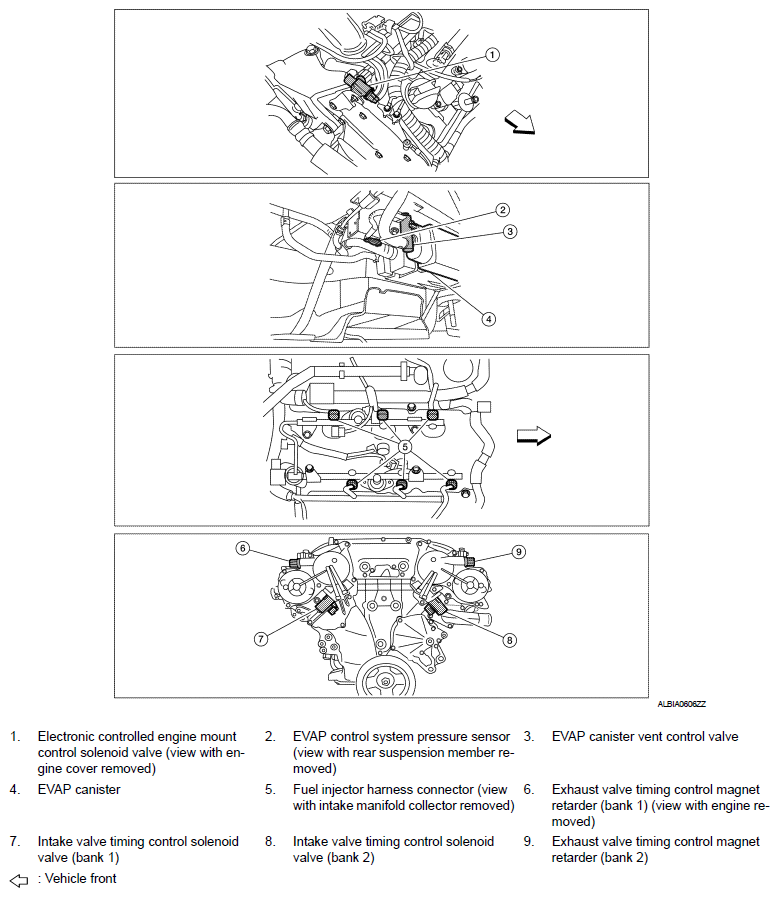

Fig 5: Identifying Cooling Fan Control System Component Parts Location (2 Of 4)
G06989835Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Cooling Fan Control System Component Parts Location (3 Of 4)
G06989836Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Cooling Fan Control System Component Parts Location (4 Of 4)
G06989837Courtesy of NISSAN MOTOR CO., U.S.A.
