Component Parts Location

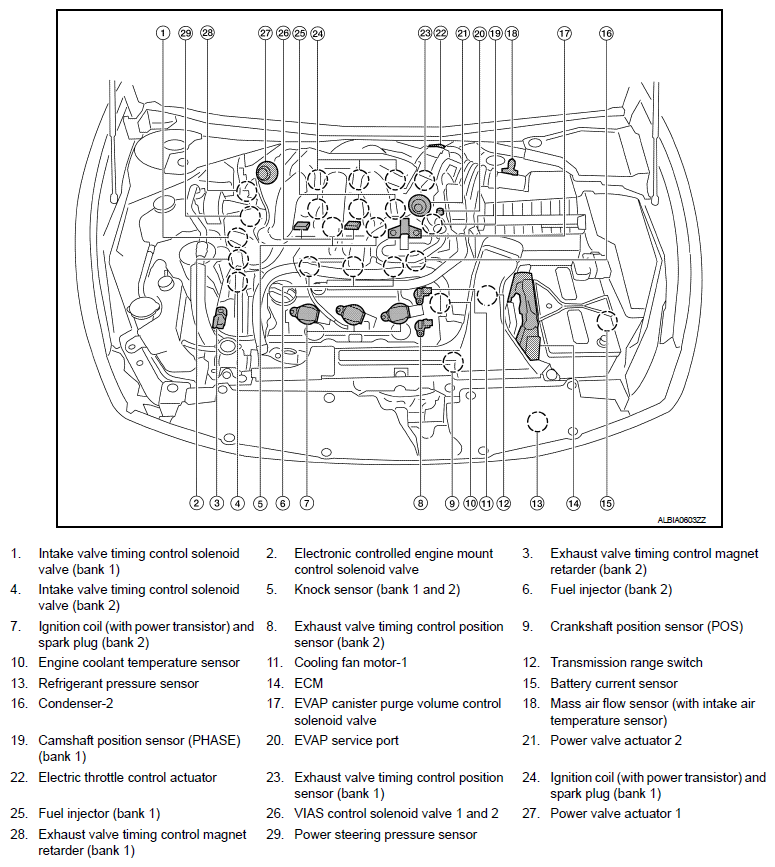

Fig 1: Identifying Exhaust Valve Timing Control System Component Parts Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

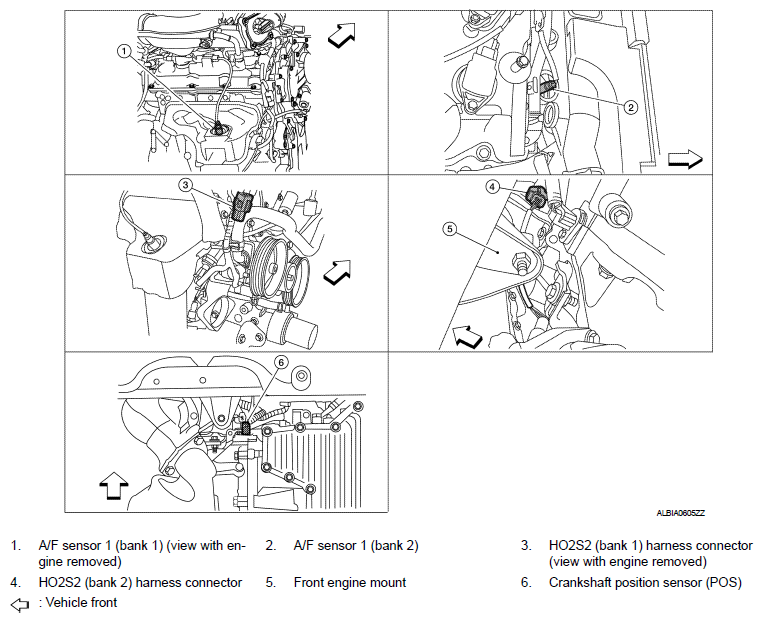

Fig 2: Identifying Exhaust Valve Timing Control System Component Parts Location (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Exhaust Valve Timing Control System Three Way Catalyst Converter And Muffler

Courtesy of NISSAN MOTOR CO., U.S.A.

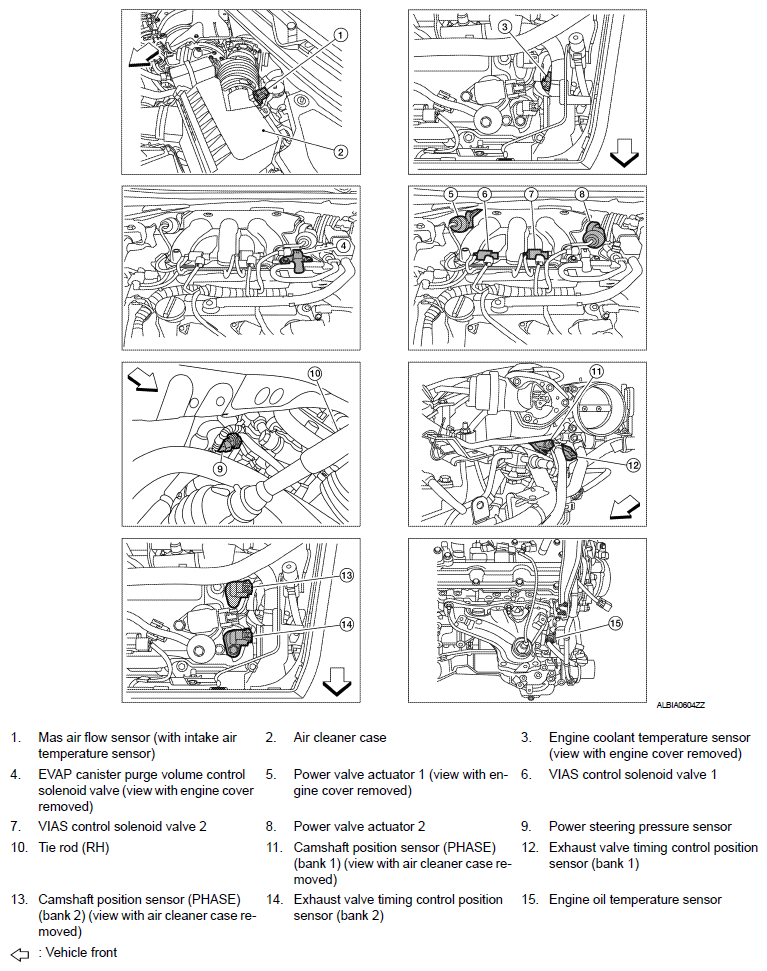

Fig 4: Identifying Exhaust Valve Timing Control System Component Parts Location (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

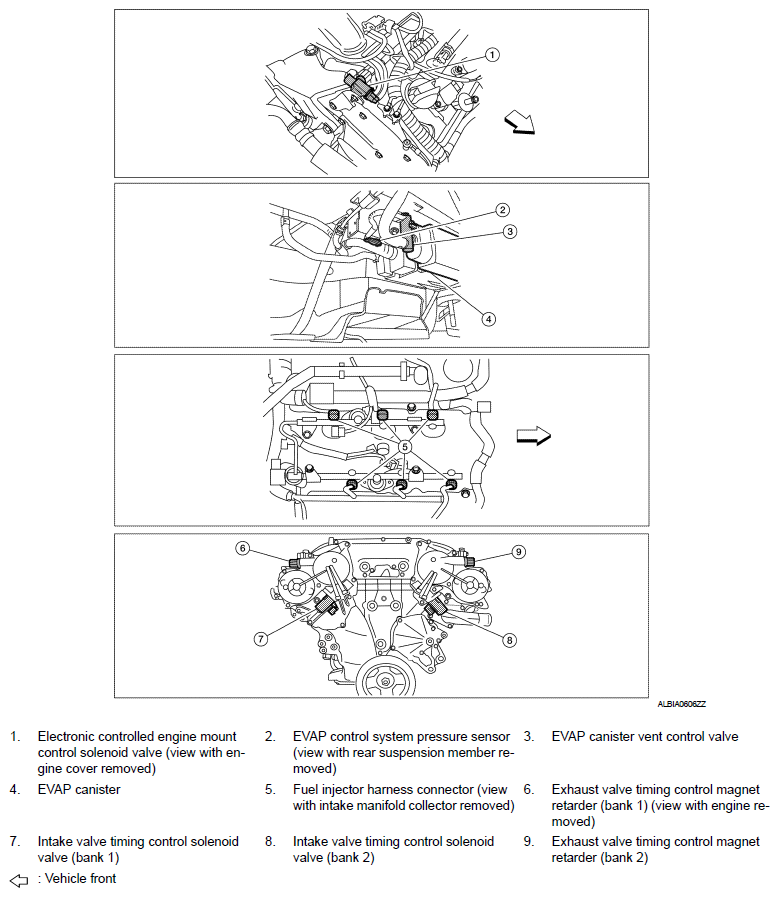

Fig 5: Identifying Exhaust Valve Timing Control System Component Parts Location (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

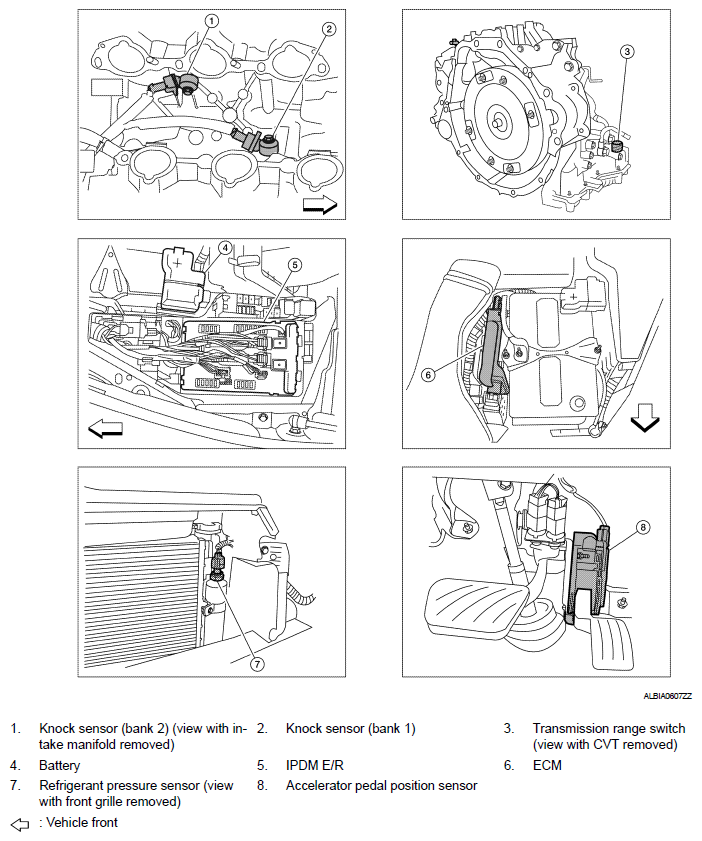

Fig 6: Identifying Exhaust Valve Timing Control System Component Parts Location (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Exhaust Valve Timing Control System Component Parts Location (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
