System Description: System: Schematic

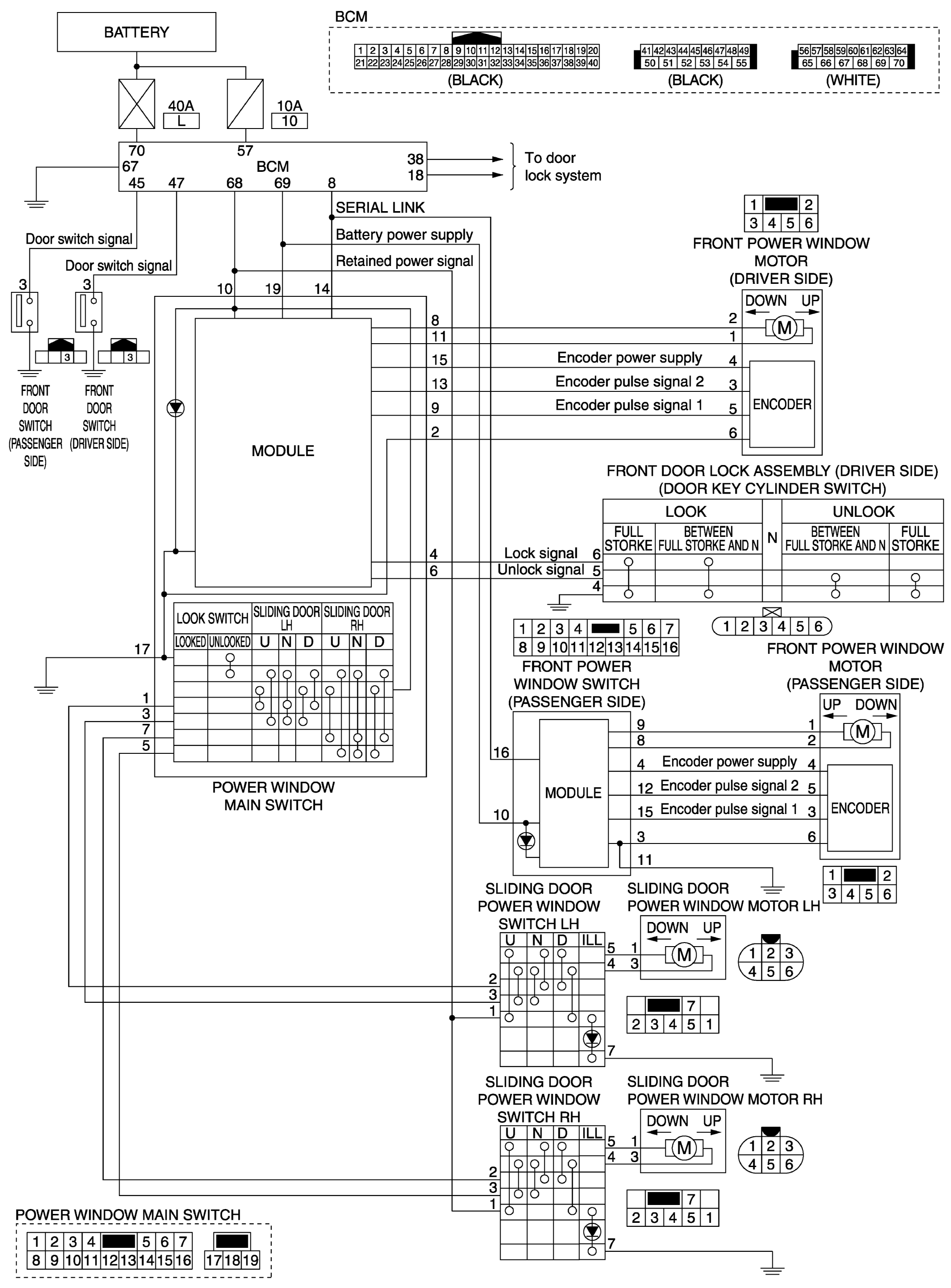

Fig 1: Power Window Control System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
