System - Engine Mechanical & Other

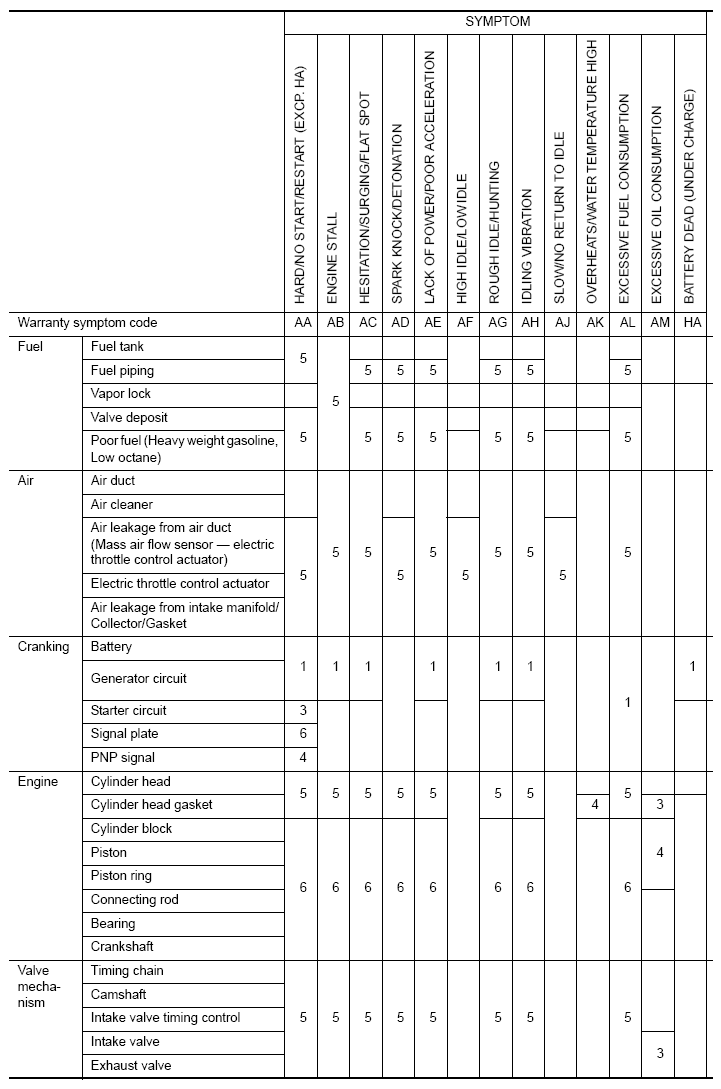

Fig 1: Engine Mechanical & Other Symptom Chart (1 Of 2)
G07051293Courtesy of NISSAN MOTOR CO., U.S.A.

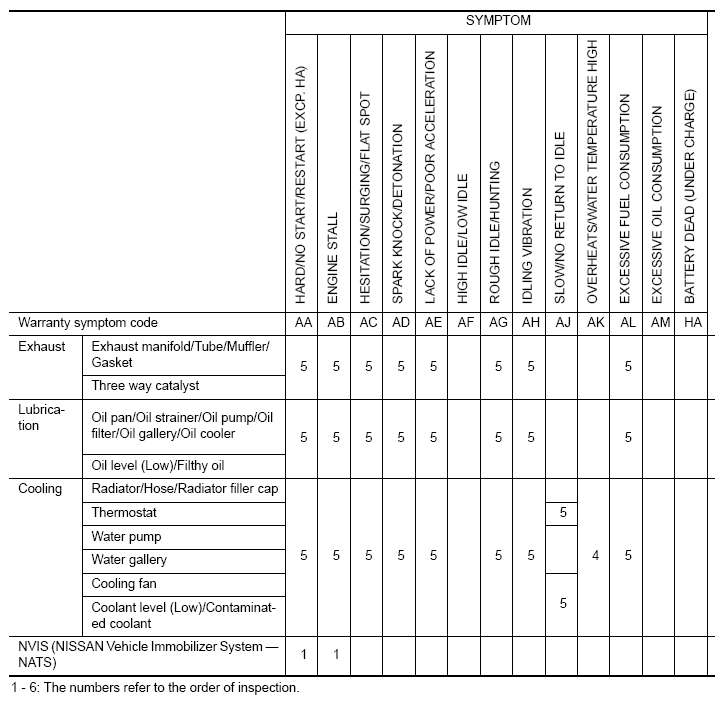

Fig 2: Engine Mechanical & Other Symptom Chart (2 Of 2)
G07051294Courtesy of NISSAN MOTOR CO., U.S.A.
