System Description: System: Schematic

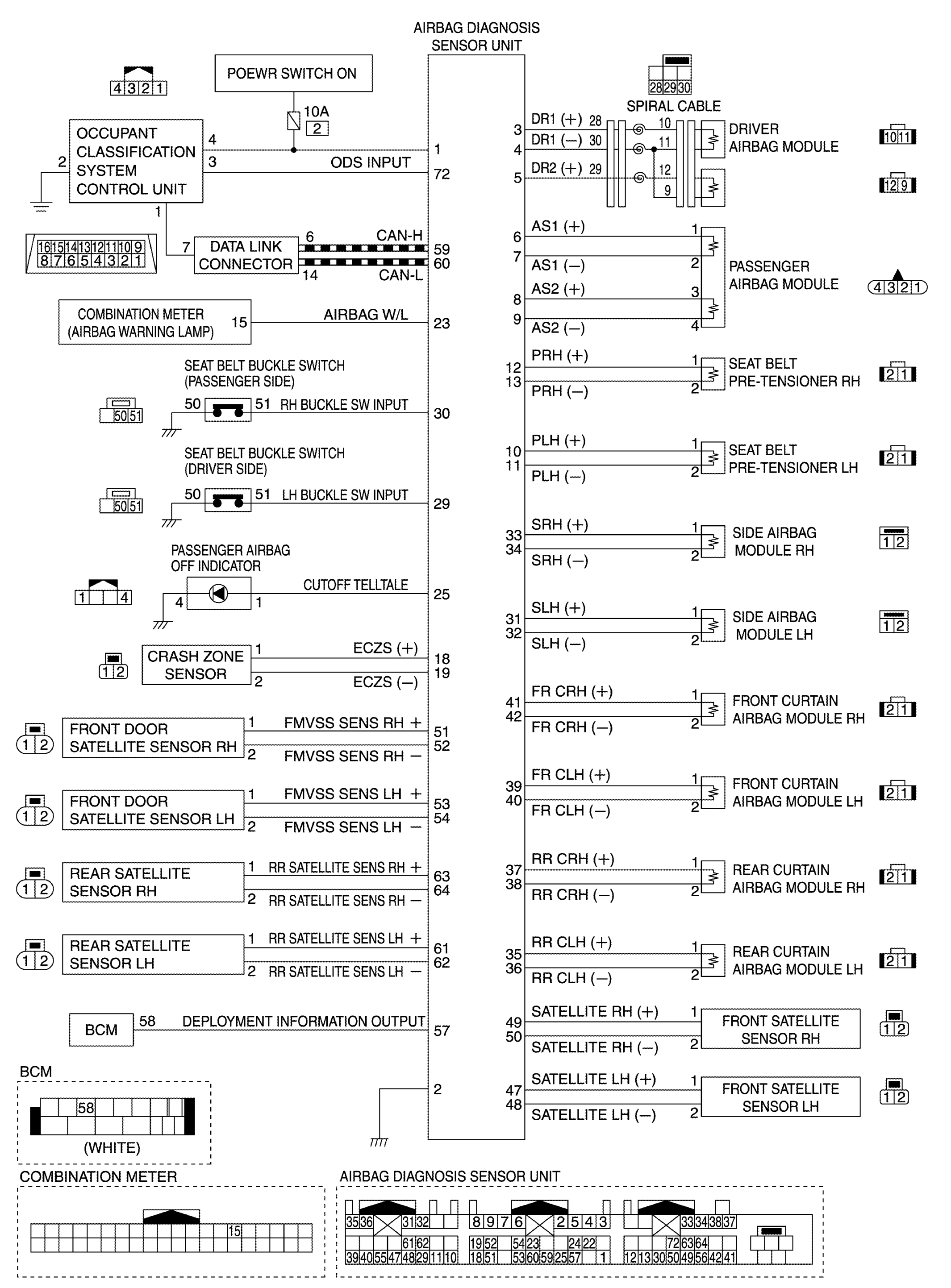

Fig 1: SRS Airbag Control System Schematic

G07051414

Courtesy of NISSAN MOTOR CO., U.S.A.
