Component Function Check

1. p to the normal operating temperature.
2. Perform "VIAS S/V-1" in "ACTIVE TEST" mode with CONSULT.
3. Turn VIAS control solenoid valve 1 "ON" and "OFF", and check that power valve actuator 1 rod moves.

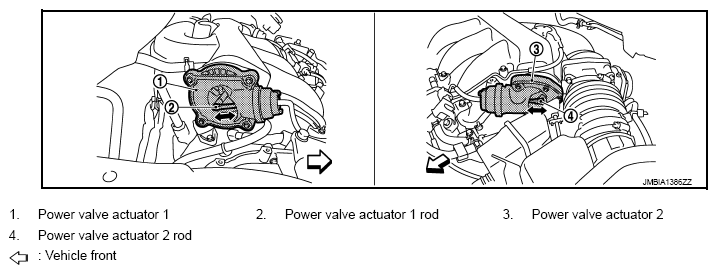

   Fig 1: Checking Power Valve Actuator 1 Rod Moves - With Consult

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT

1. Start engine and warm it up to the normal operating temperature.
2. Rev engine quickly up to approximately 5, 000 RPM.
3. Check that power valve actuator 1 rod moves.

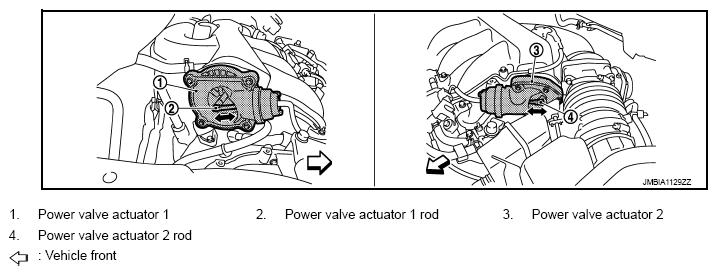

   Fig 2: Checking Power Valve Actuator 1 Rod Moves - Without Consult

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is the inspection result normal?

   YES: GO TO 2.

   NO: "DIAGNOSIS PROCEDURE ".

With CONSULT

1. Perform "VIAS S/V-2" in "ACTIVE TEST" mode with CONSULT.
2. Turn VIAS control solenoid valve 2 "ON" and "OFF", and check that power valve actuator 2 rod moves.

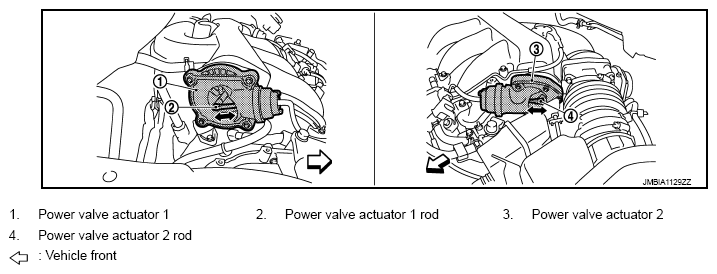

   Fig 3: Checking Power Valve Actuator 2 Rod Moves - With Consult

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT

1. When revving engine up to 5, 000 RPM quickly.
2. Rev engine quickly up to approximately 5, 000 RPM.
3. Check that power valve actuator 2 rod moves.
   Fig 4: Checking Power Valve Actuator 2 Rod Moves - Without Consult

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: "DIAGNOSIS PROCEDURE ".
