Remote Keyless Entry Receiver Check

1. Turn ignition switch OFF.
2. Check remote keyless entry receiver connector and ground signal with oscilloscope.
   REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL



   Terminals			Keyfob condition	Signal (Reference value)
   (+)		(-)
   Remote keyless entry receiver connector	Terminal
   M15	2	Ground	No function	Courtesy of NISSAN MOTOR CO., U.S.A.
   			Any button is pressed	Courtesy of NISSAN MOTOR CO., U.S.A.

   Fig 1: Checking Remote Keyless Entry Receiver Connector And Ground Signal With Oscilloscope

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: Remote keyless entry receiver circuit is OK.

   NG: GO TO 2.

1. Disconnect remote keyless entry receiver connector.
2. Check voltage between remote keyless entry receiver connector M15 terminal 4 and ground.
   VOLTAGE AND CONTINUITY SPECIFICATIONS



   Terminals			Voltage (V) (Approx.)
   (+)		(-)
   Remote keyless entry receiver connector	Terminal
   M15	4	Ground	4.5

   Fig 2: Checking Voltage Between Remote Keyless Entry Receiver Connector M15 Terminal 4 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: GO TO  4.

   NG: GO TO 3.

1. Disconnect BCM connector.
2. Check continuity between BCM connector M18 (A) terminal 19 and remote keyless entry receiver connector M15 (B) terminal 4.
   VOLTAGE AND CONTINUITY SPECIFICATIONS



   A		B		Continuity
   BCM connector	Terminal	Remote keyless entry receiver connector	Terminal
   M18	19	M15	4	Yes

3. Check continuity between BCM connector (A) M18 terminal 19 and ground.
   VOLTAGE AND CONTINUITY SPECIFICATIONS



   A		Ground	Continuity
   BCM connector	Terminal
   M18	19		No

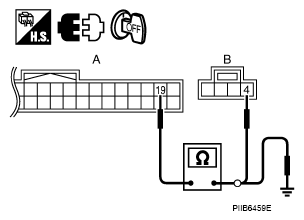

   Fig 3: Checking Continuity Between BCM Connector (A) M18 Terminal 19 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

   NG: Repair or replace the harness.

Check continuity between remote keyless entry receiver connector M15 terminal 1 and ground.

Fig 4: Checking Continuity Between Remote Keyless Entry Receiver Connector M15 Terminal 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO  6.

NG: GO TO 5.

Check continuity between BCM connector M18 (A) terminal 18 and remote keyless entry receiver connector M15 (B) terminal 1.

OK or NG

OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

NG: Repair or replace the harness.

Fig 5: Checking Continuity Between BCM Connector M18 (A) Terminal 18 And Remote Keyless Entry Receiver Connector M15 (B) Terminal 1

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Check continuity between BCM connector M18 (A) terminal 20 and remote keyless entry receiver connector M15 (B) terminal 2.
   VOLTAGE AND CONTINUITY SPECIFICATIONS



   A		B		Continuity
   BCM connector	Terminal	Remote keyless entry receiver connector	Terminal
   M18	20	M15	2	Yes

2. Check continuity between BCM connector (A) M18 terminal 20 and ground.
   VOLTAGE AND CONTINUITY SPECIFICATIONS



   A		Ground	Continuity
   BCM connector	Terminal
   M18	20		No

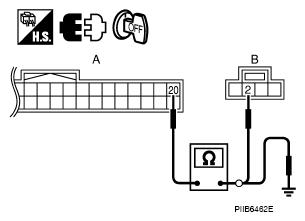

   Fig 6: Checking Continuity Between BCM Connector Terminals And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: Replace remote keyless entry receiver. Refer to "REMOVAL AND INSTALLATION OF REMOTE KEYLESS ENTRY RECEIVER ".

   NG: Repair or replace harness.
