Control Cable Components

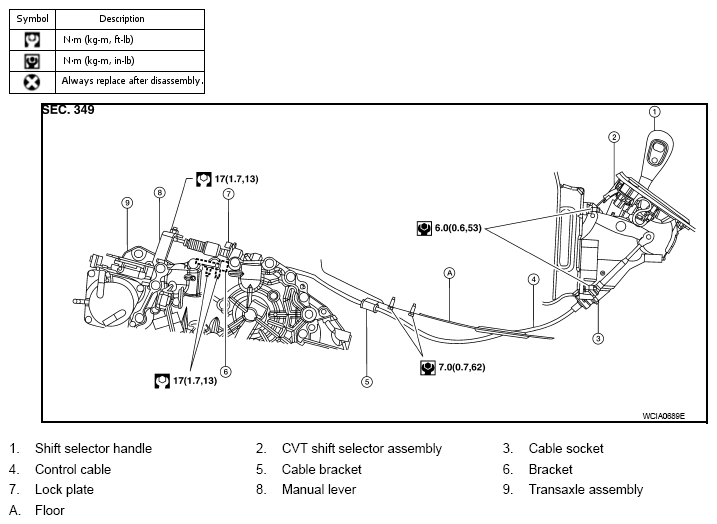

Fig 1: Exploded View Of Control Cable Components With Torque Specifications
G07139214Courtesy of NISSAN MOTOR CO., U.S.A.
