Intelligent Key Battery Replacement: Notes

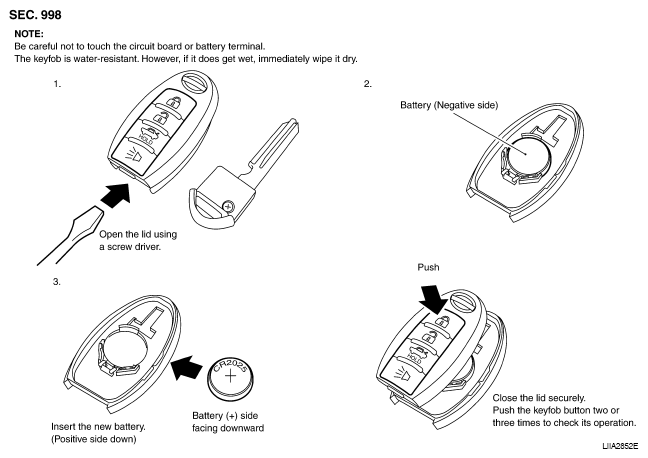

Fig 1: Removing Intelligent Key Battery
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
