Exploded View (QR25DE Battery Tray)

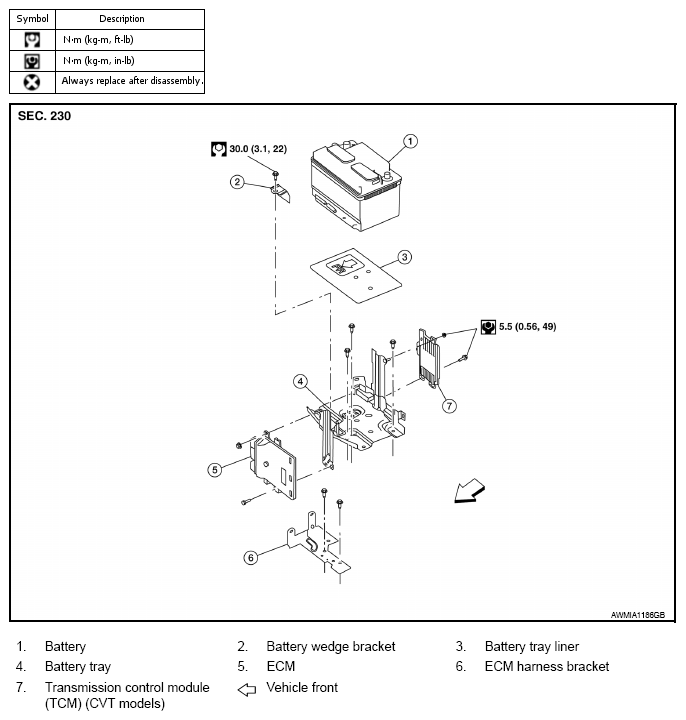

Fig 1: Exploded View Of Battery Tray With Torque Specifications
G07143136Courtesy of NISSAN MOTOR CO., U.S.A.
