Service Information
>>
Instrument Panel Assembly
>>
Component Parts
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts

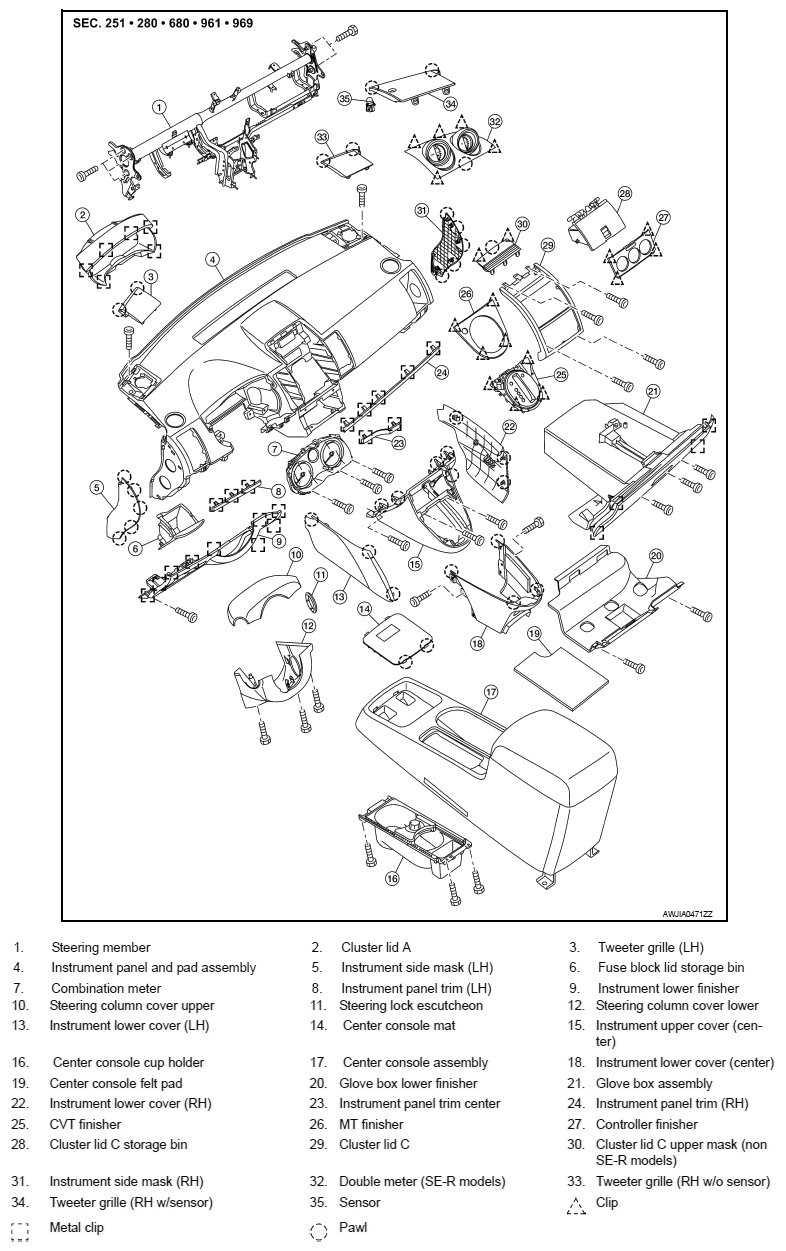

Fig 1: Exploded View Of Instrument Panel Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
