Center Console Assembly

Removal

1. Remove center console mat and remove screws (A).

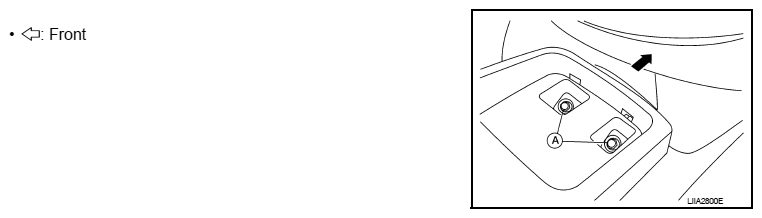

   Fig 1: Identifying Center Console Mat And Screws

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Open center console lid, remove center console felt pad and remove the center console assembly screws (A).
   Fig 2: Identifying Center Console Assembly Screws

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove the center console assembly.
   1. Pull parking brake control handle up engaging the parking brake.
   2. Position the center console assembly so the following connectors can be disconnected:
      • Heated seat switches, if equipped
      • Power socket, if equipped
      • USB port, if equipped
      • Auxilliary port, if equipped
   3. Remove the center console assembly.

Installation

Installation is in the reverse order of removal.
