Removal and Installation: Notes

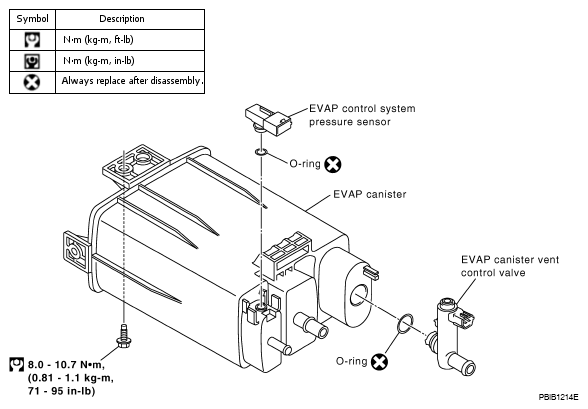

Fig 1: Exploded View Of Evaporative Emission System With Torque Specifications
G07137779Courtesy of NISSAN MOTOR CO., U.S.A.
