Removal and Installation: Installation

Installation is in the reverse order of removal.

EVAP Canister

1. Check the connection for damage or any foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a "click" sound is heard.
3. After connecting, make sure that the connection is secure.
   • Pull the tube and the connector to make sure they are securely connected.

Fuel Tank Band

• Install them in the proper position by referring to the identification stamp mark "R" and "L" on the end.

Fuel Filler Hose

• Insert fuel filler hose (1) to the length (A) below on the fuel tank (3).

  Fuel filler hose installation on fuel tank (A) : 35mm (1.38 in)

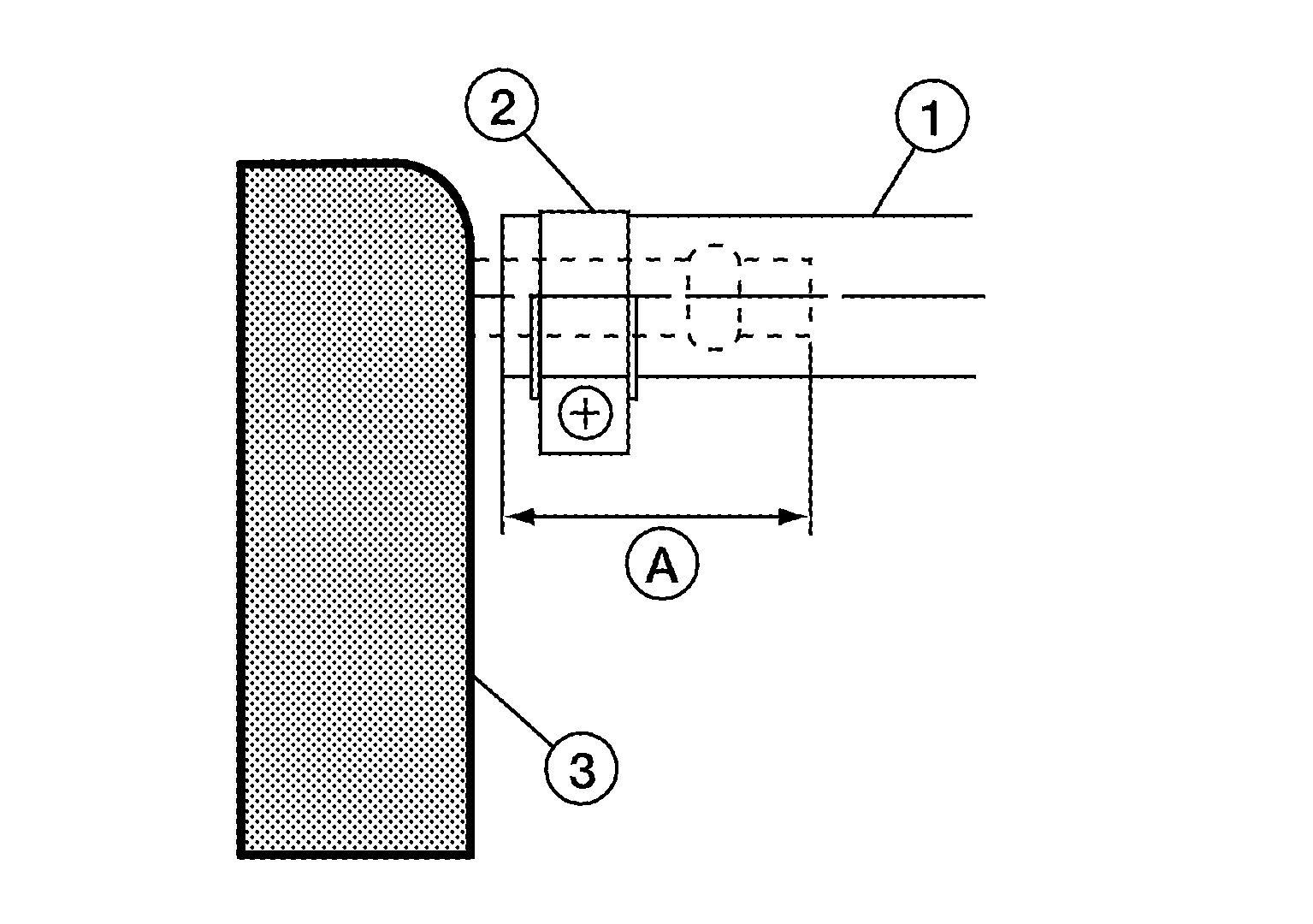

  Fig 1: Inserting Fuel Filler Hose

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Be sure hose clamp (2) is not placed on swelled area of fuel filler hose (1).

EVAP Hose

1. Check connections for damage or foreign material.
2. Align the matching quick connector (A) with the center of EVAP hose (1), and insert quick connector (A) straight until it clicks.
3. After connecting, pull on quick connector (A) and EVAP hose (1) by hand. Make sure connections are secure.
   Fig 2: Aligning Matching Quick Connector With Center Of EVAP Hose

   Courtesy of NISSAN MOTOR CO., U.S.A.
