Mode 6 - 2011 NISSAN: Juke

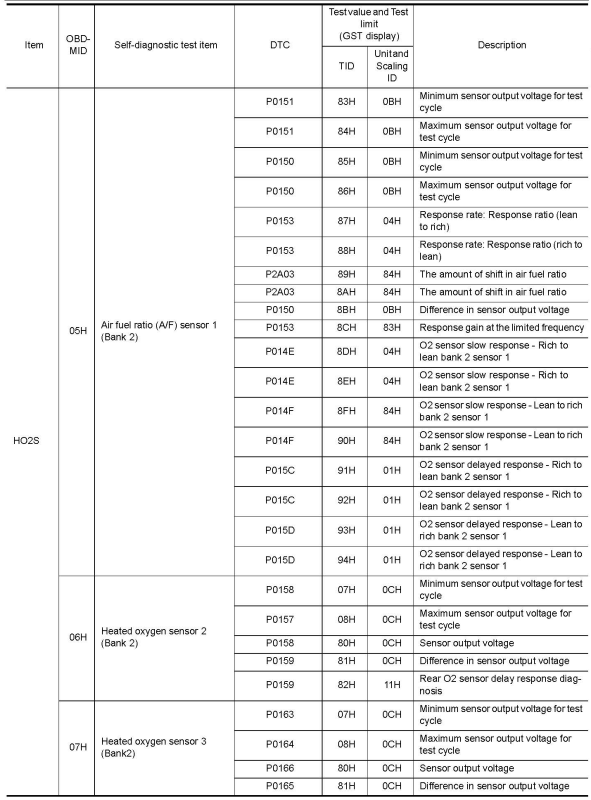

Fig 1: Mode $06 Data For Juke (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

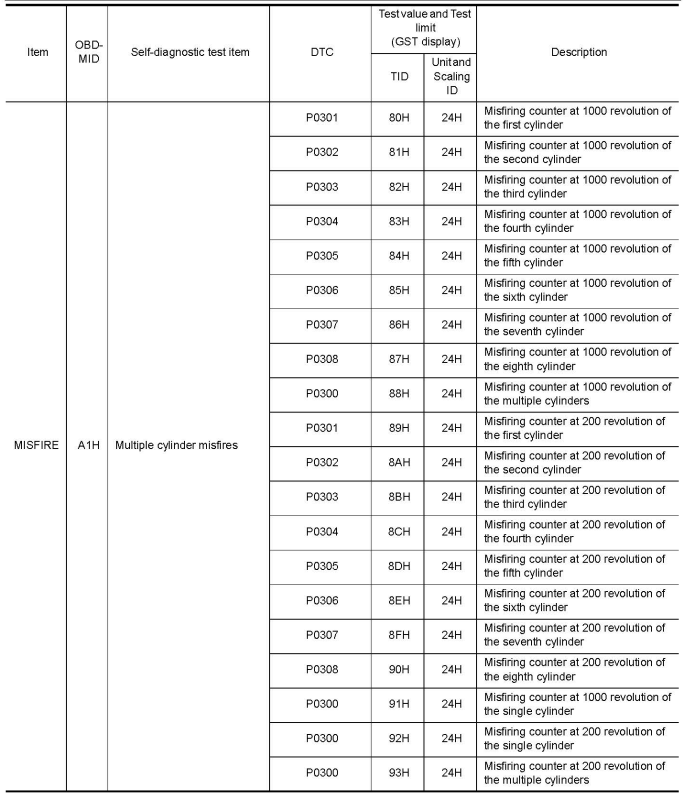

Fig 2: Mode $06 Data For Juke (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

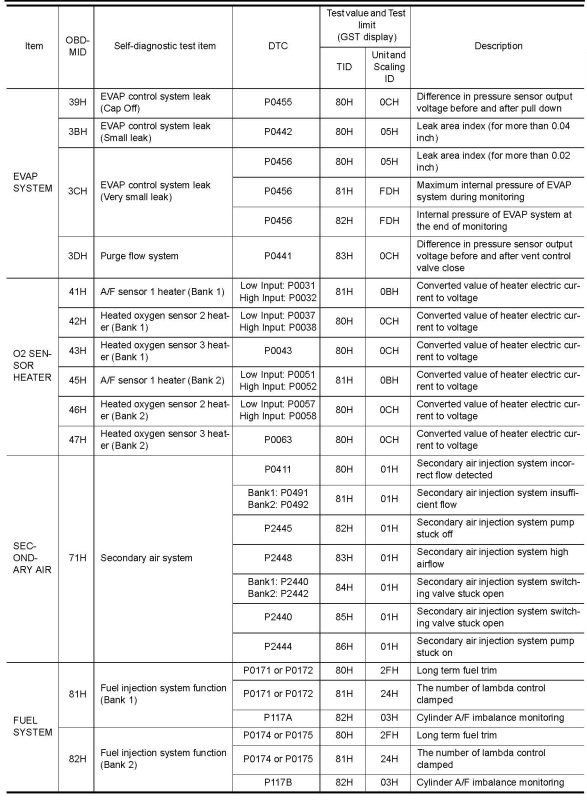

Fig 3: Mode $06 Data For Juke (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

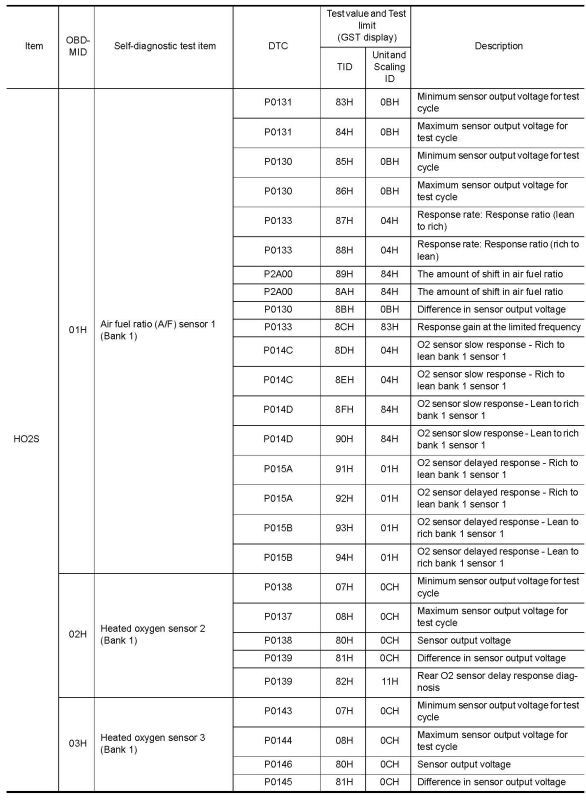

Fig 4: Mode $06 Data For Juke (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

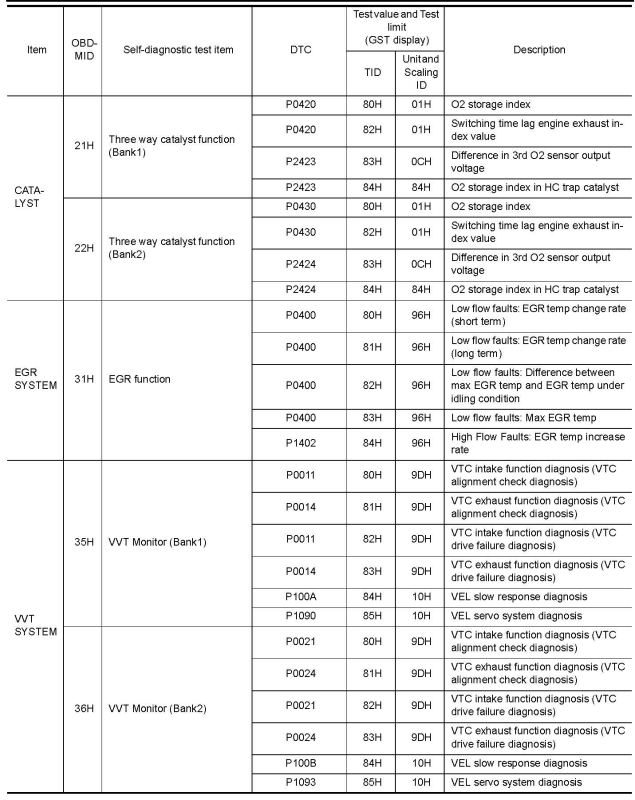

Fig 5: Mode $06 Data For Juke (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

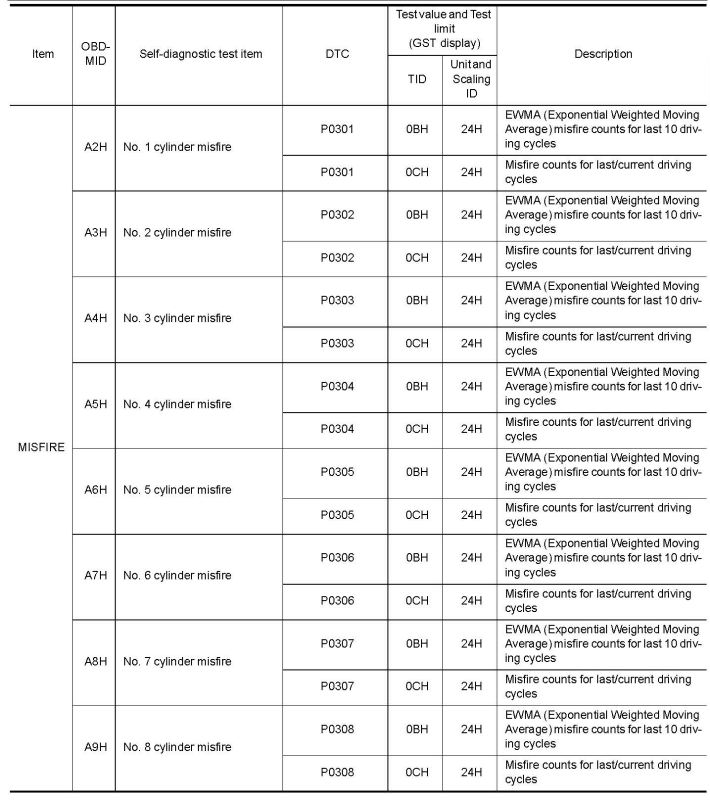

Fig 6: Mode $06 Data For Juke (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
