DTC P2101 Electric Throttle Control Function: Wiring Diagram

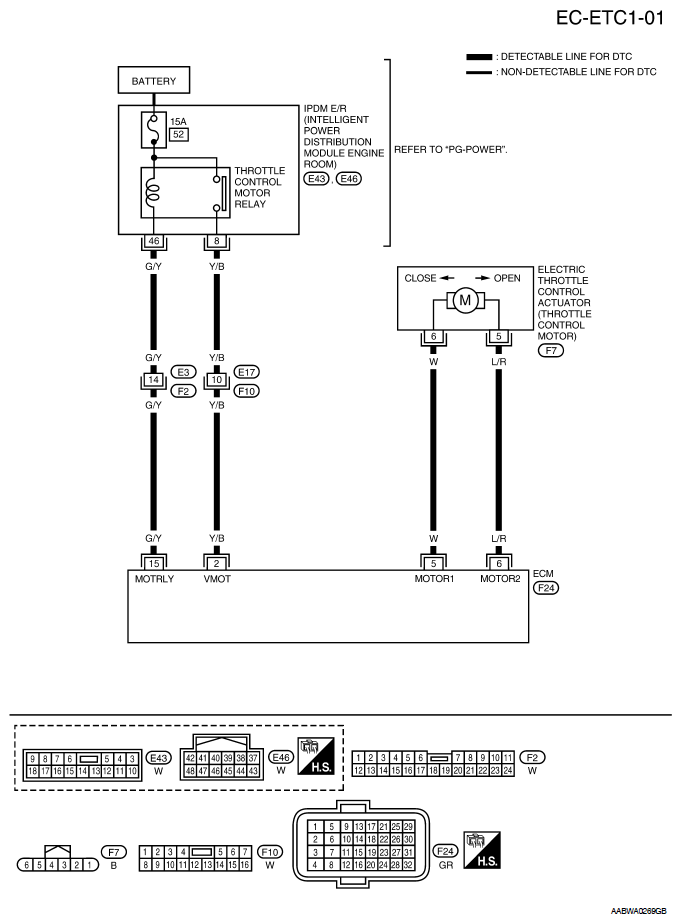

Fig 1: EC-ETC1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-III.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINAL AND WIRE COLOR REFERENCE CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

Y/B

Throttle control motor power supply

[Ignition switch: ON]

BATTERY VOLTAGE (11 - 14 V)

Throttle control motor (Open)

[Ignition switch: ON]

Engine stopped
Selector lever: D (CVT), 1st (M/T)
Accelerator pedal: Fully depressed

0 - 14 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

L/R

Throttle control motor (Close)

[Ignition switch: ON]

Engine stopped
Selector lever: D (CVT), 1st (M/T)
Accelerator pedal: Fully released

0 - 14 V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

G/Y

Throttle control motor relay

[Ignition switch: OFF]

BATTERY VOLTAGE (11 - 14 V)

[Ignition switch: ON]

0 - 1.0 V

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
