Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector (1).
- Accelerator pedal (2)
Fig 1: Location Of Data Link Connector And Accelerator Pedal
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation information.
(*: Regarding GST screens in this information, sample screens are shown in the figure.)

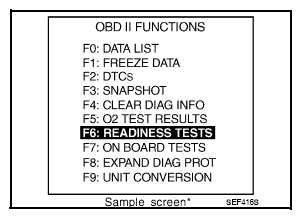

Fig 2: GST Sample Screens Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Instructions of the tool maker.

Fig 3: Generic Scan Tool Screen Display - READINESS TESTS
Courtesy of NISSAN MOTOR CO., U.S.A.
