System - Engine Mechanical&Other

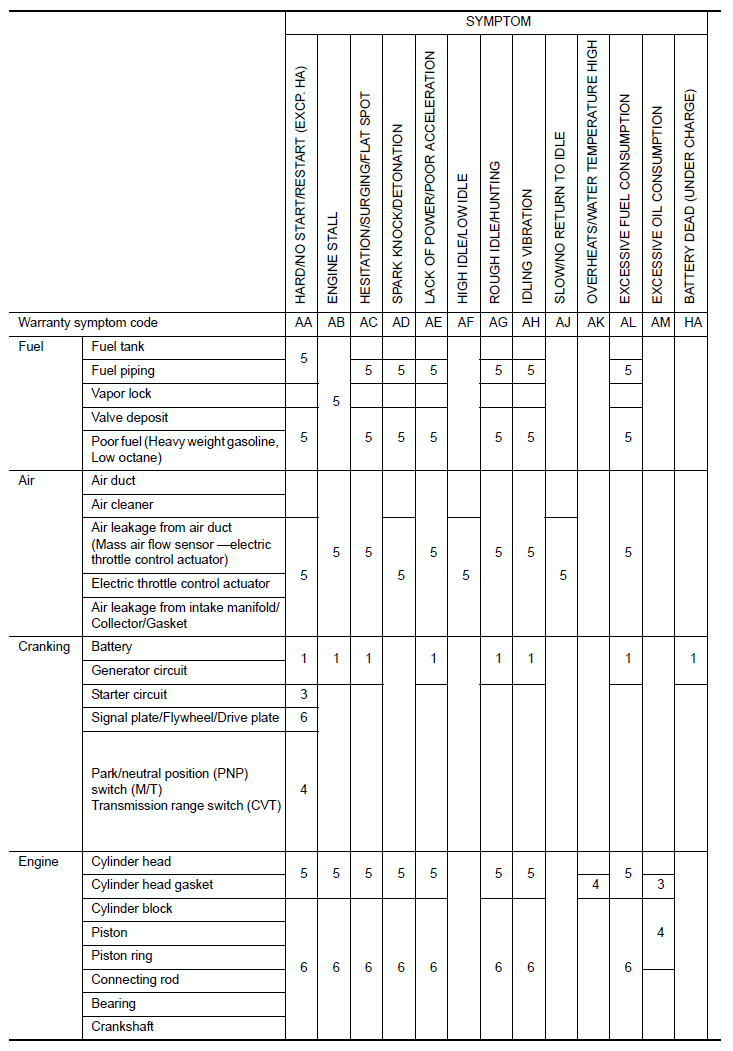

Fig 1: Engine Mechanical&Other Symptom Matrix Chart (1 Of 2)
G07143965Courtesy of NISSAN MOTOR CO., U.S.A.

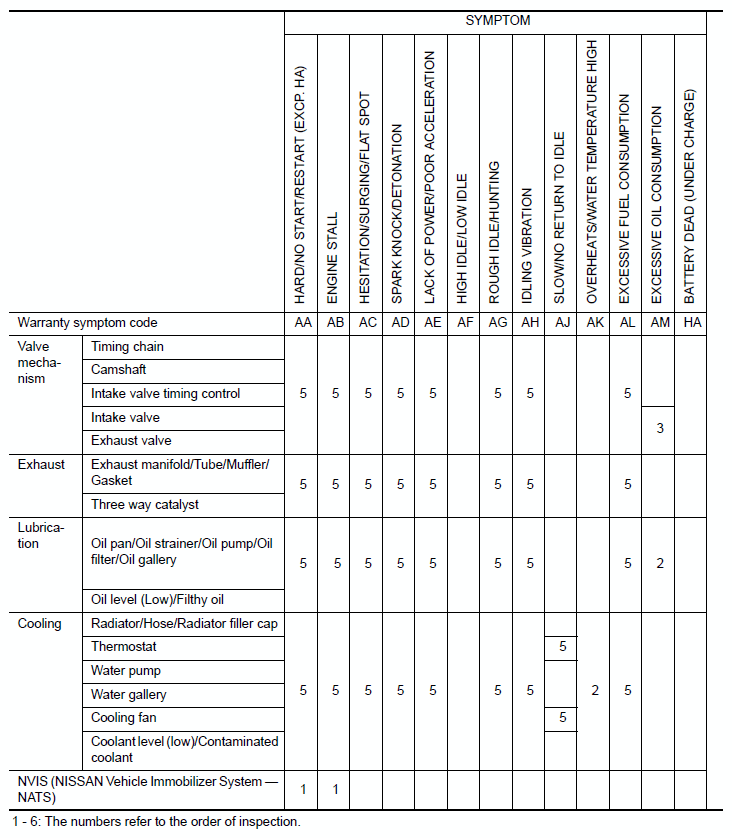

Fig 2: Engine Mechanical&Other Symptom Matrix Chart (2 Of 2)
G07143966Courtesy of NISSAN MOTOR CO., U.S.A.

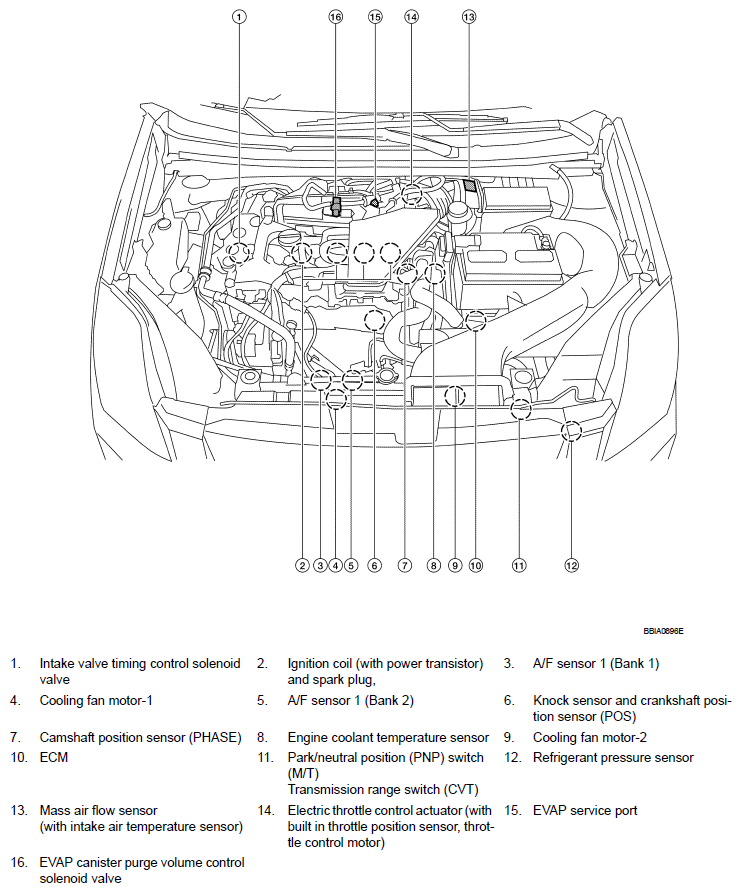

Fig 3: Location Of Engine Control Component Parts Location (1 Of 6)
G07143967Courtesy of NISSAN MOTOR CO., U.S.A.

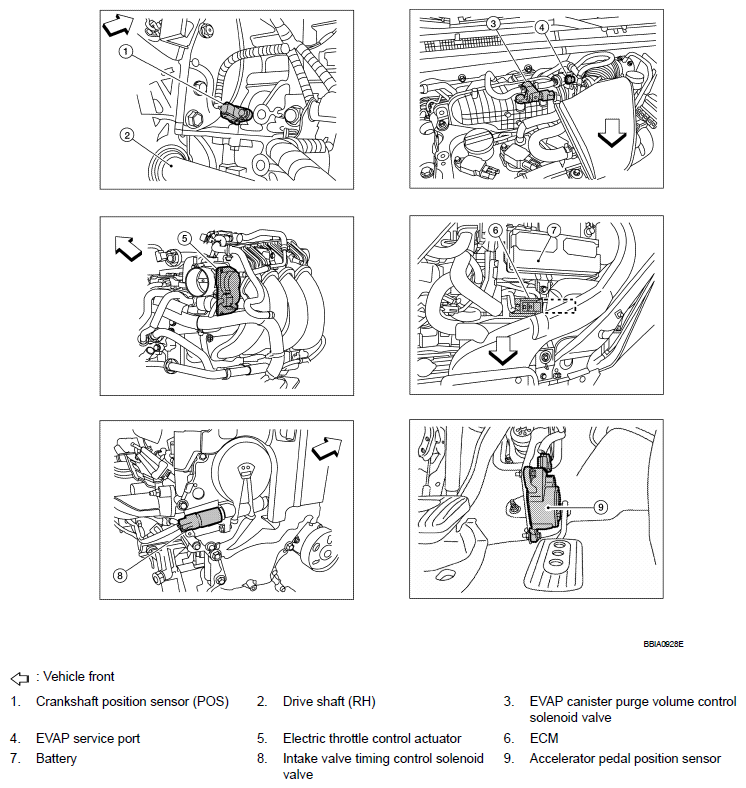

Fig 4: Location Of Engine Control Component Parts Location (2 Of 6)
G07143968Courtesy of NISSAN MOTOR CO., U.S.A.

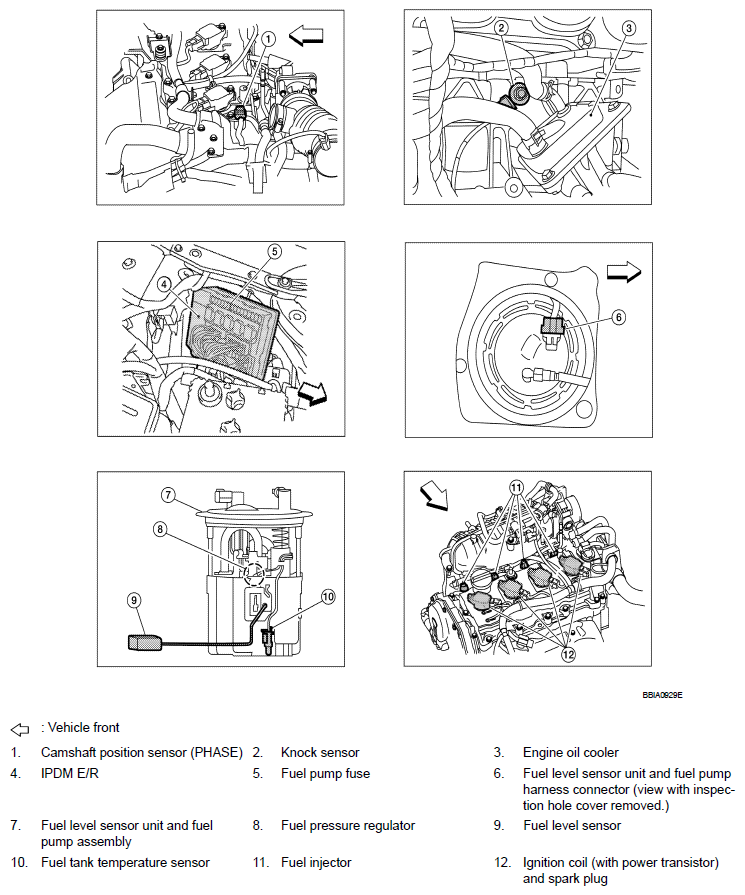

Fig 5: Location Of Engine Control Component Parts Location (3 Of 6)
G07143969Courtesy of NISSAN MOTOR CO., U.S.A.

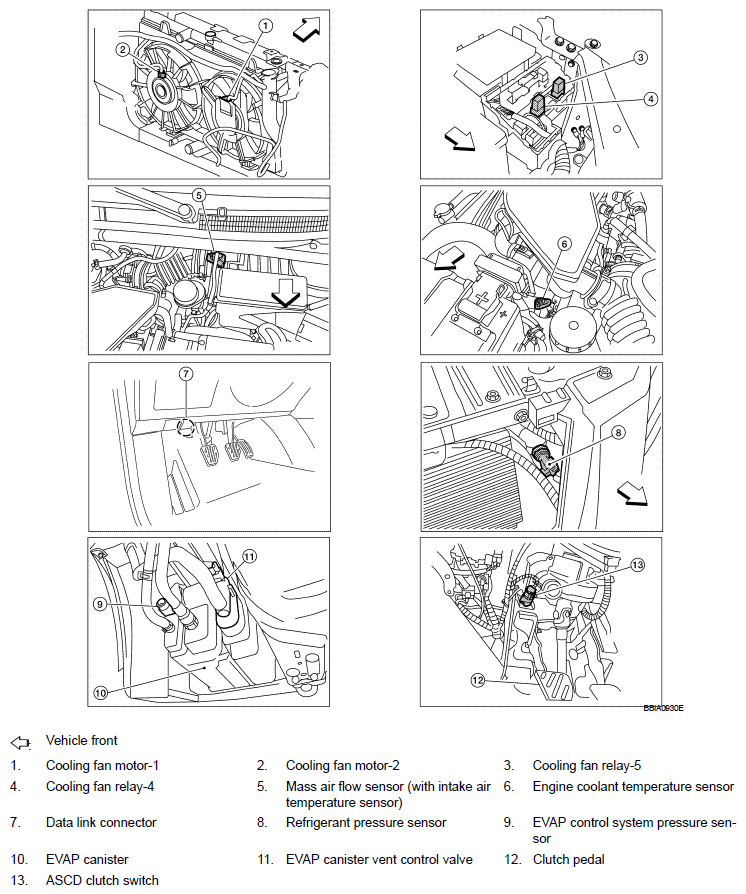

Fig 6: Location Of Engine Control Component Parts Location (4 Of 6)
G07143970Courtesy of NISSAN MOTOR CO., U.S.A.

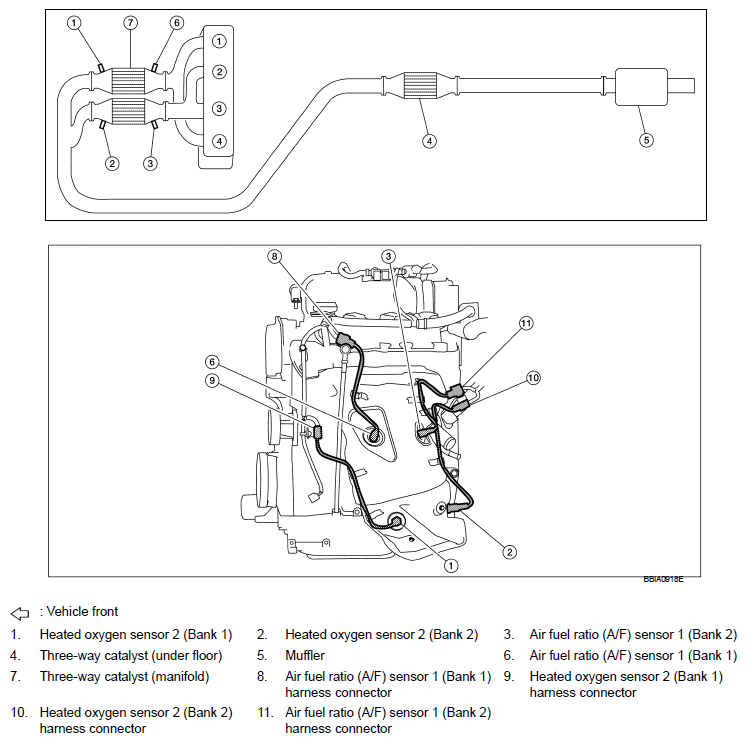

Fig 7: Location Of Engine Control Component Parts Location (5 Of 6)
G07143971Courtesy of NISSAN MOTOR CO., U.S.A.

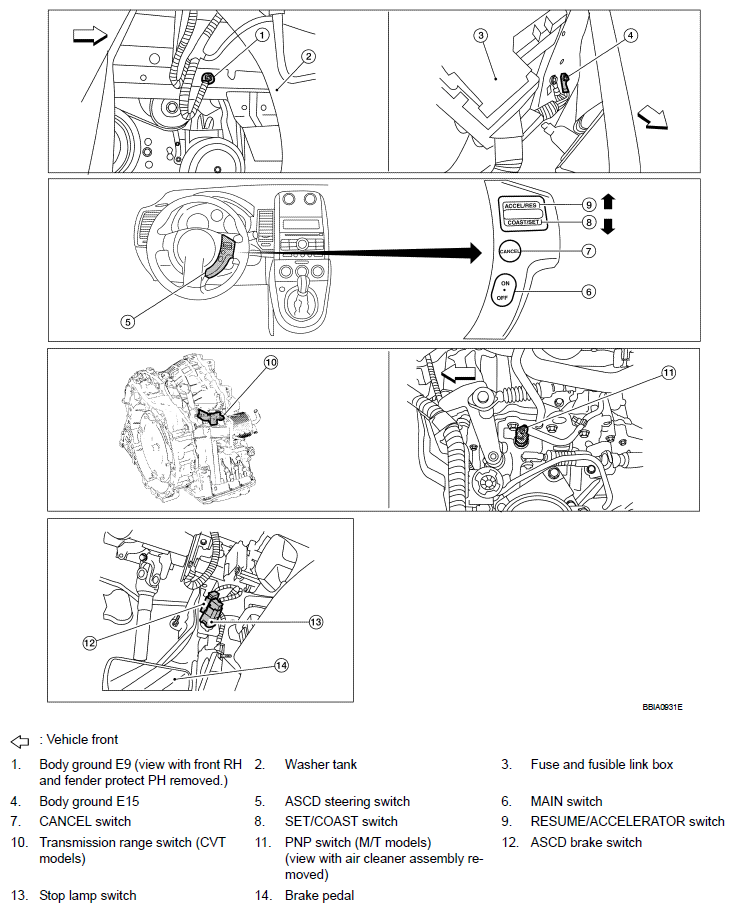

Fig 8: Location Of Engine Control Component Parts Location (6 Of 6)
G07143972Courtesy of NISSAN MOTOR CO., U.S.A.
