Vacuum Hose Drawing

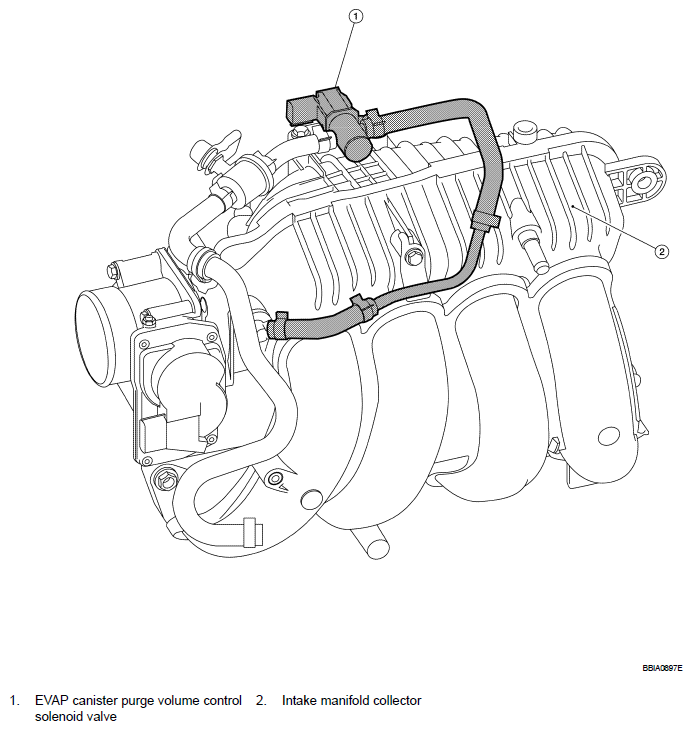

Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve And Intake Manifold Collector

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
Refer to "SCHEMATIC " for Vacuum Control System.
