Front Suspension Assembly: Component

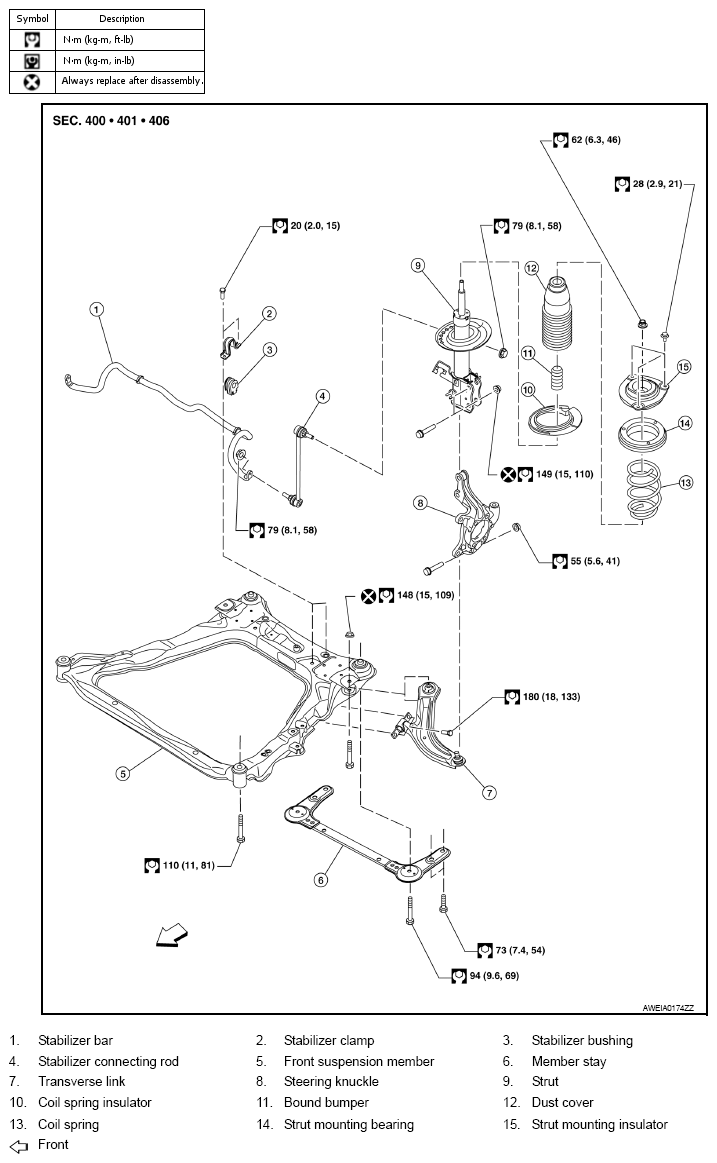

Fig 1: Exploded View Of Front Suspension Assembly Components With Torque Specifications
G07139358Courtesy of NISSAN MOTOR CO., U.S.A.
