Rear Suspension Assembly: Component

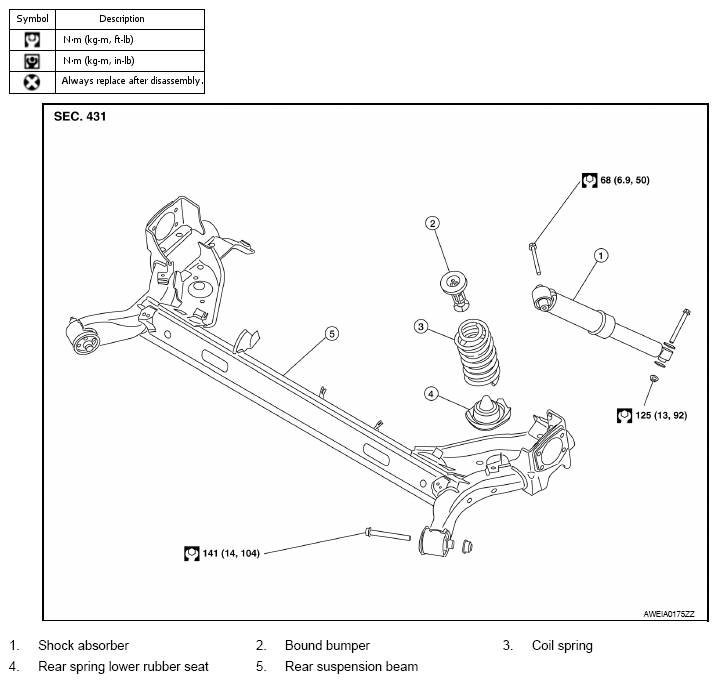

Fig 1: Exploded View Of Rear Suspension Assembly Components With Torque Specifications
G07139383Courtesy of NISSAN MOTOR CO., U.S.A.
