Connector Terminal Identification - Coupe

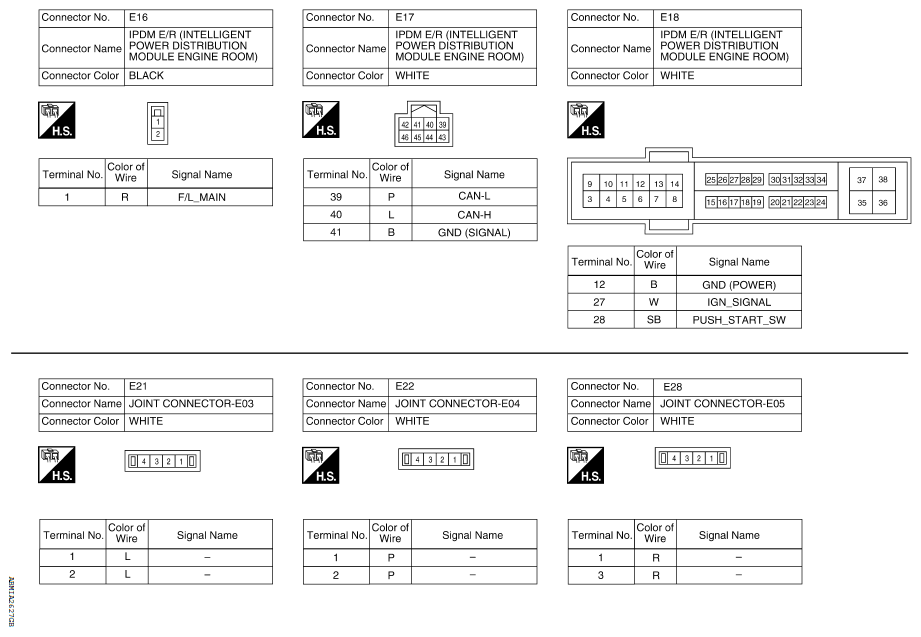

Fig 1: Identifying Power Distribution System Connectors - Coupe (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

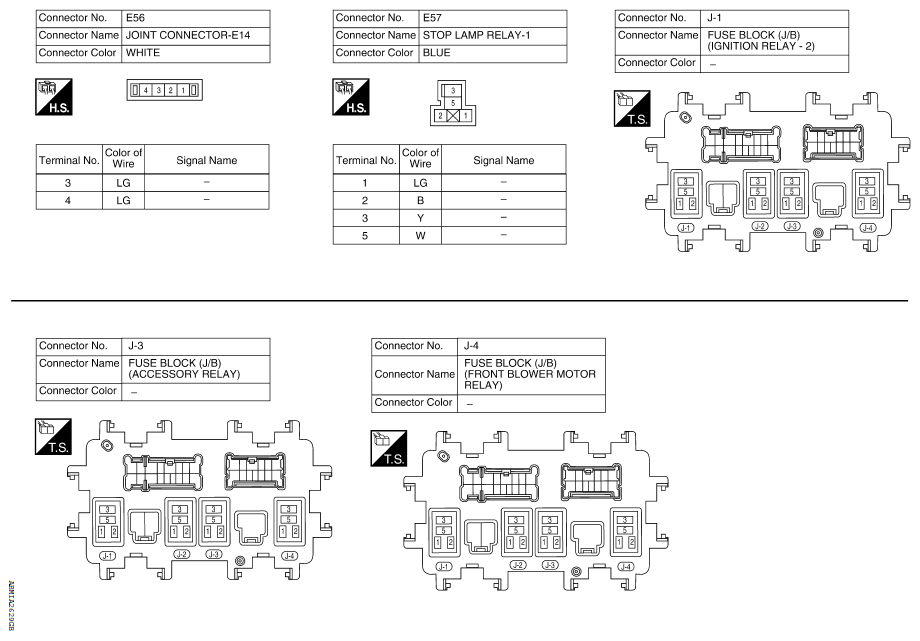

Fig 2: Identifying Power Distribution System Connectors - Coupe (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

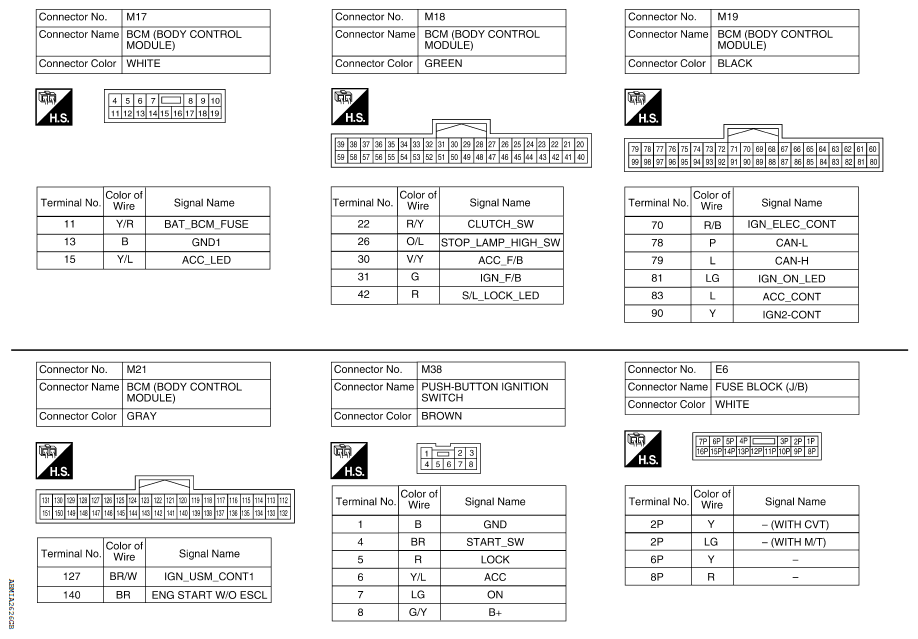

Fig 3: Identifying Power Distribution System Connectors - Coupe (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

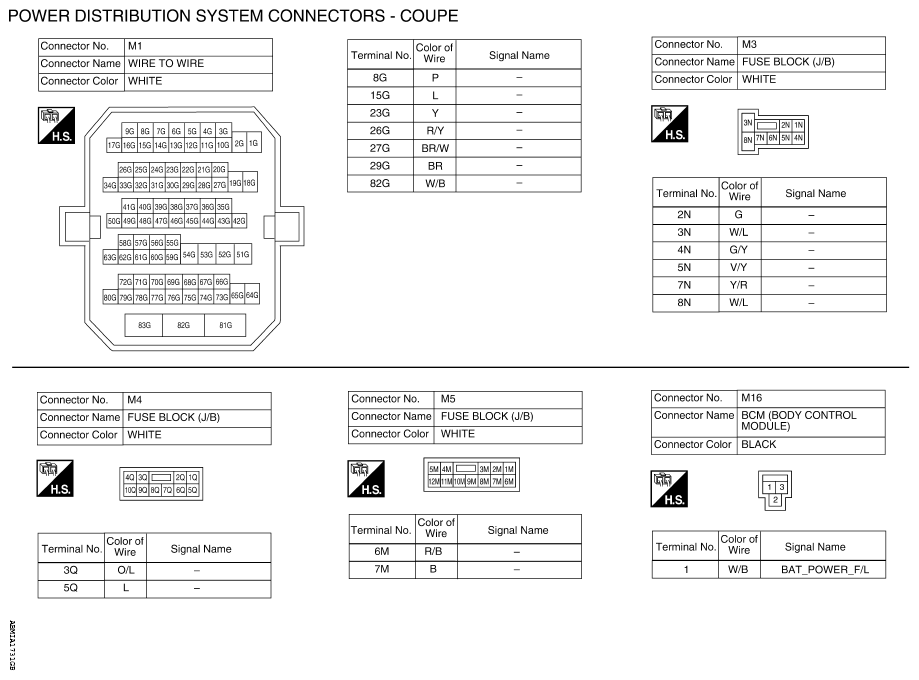

Fig 4: Identifying Power Distribution System Connectors - Coupe (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

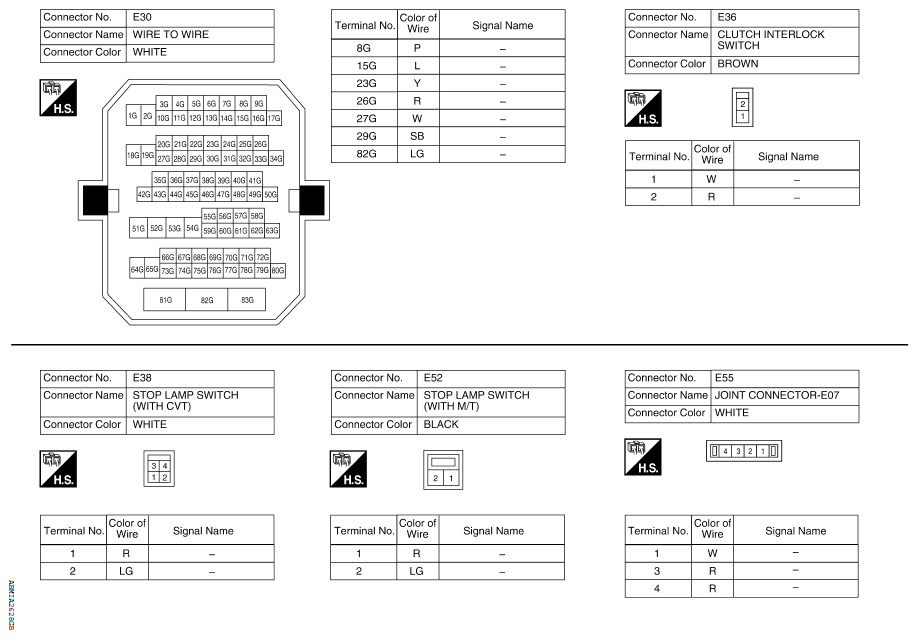

Fig 5: Identifying Power Distribution System Connectors - Coupe (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
