Component Parts Location

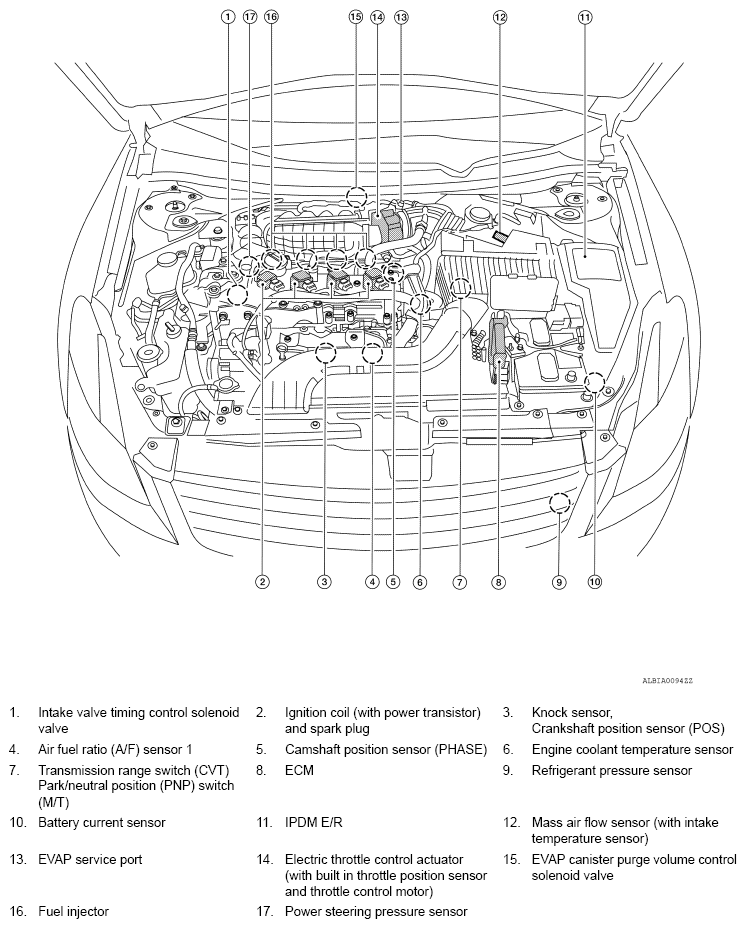

Fig 1: Intake Valve Timing Control Component Parts Location (1 Of 7)
G08432898Courtesy of NISSAN NORTH AMERICA, INC.

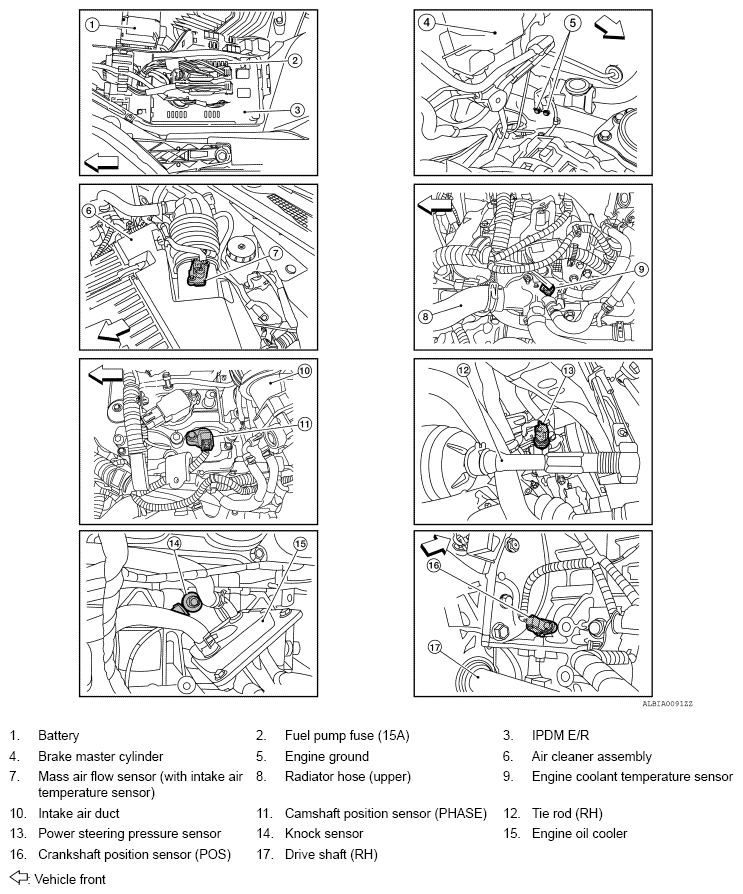

Fig 2: Intake Valve Timing Control Component Parts Location (2 Of 7)
G08432899Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intake Valve Timing Control Component Parts Location (3 Of 7)
G04887769Courtesy of NISSAN NORTH AMERICA, INC.

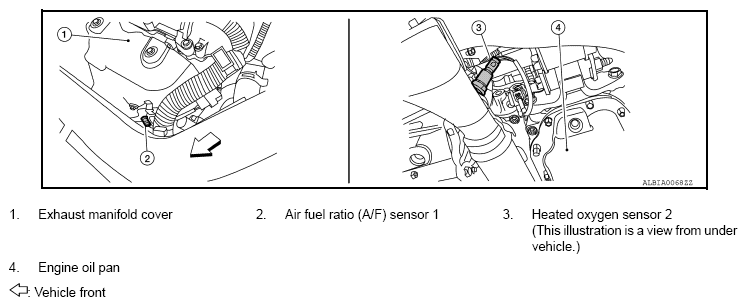

Fig 4: Intake Valve Timing Control Component Parts Location (4 Of 7)
G08432901Courtesy of NISSAN NORTH AMERICA, INC.

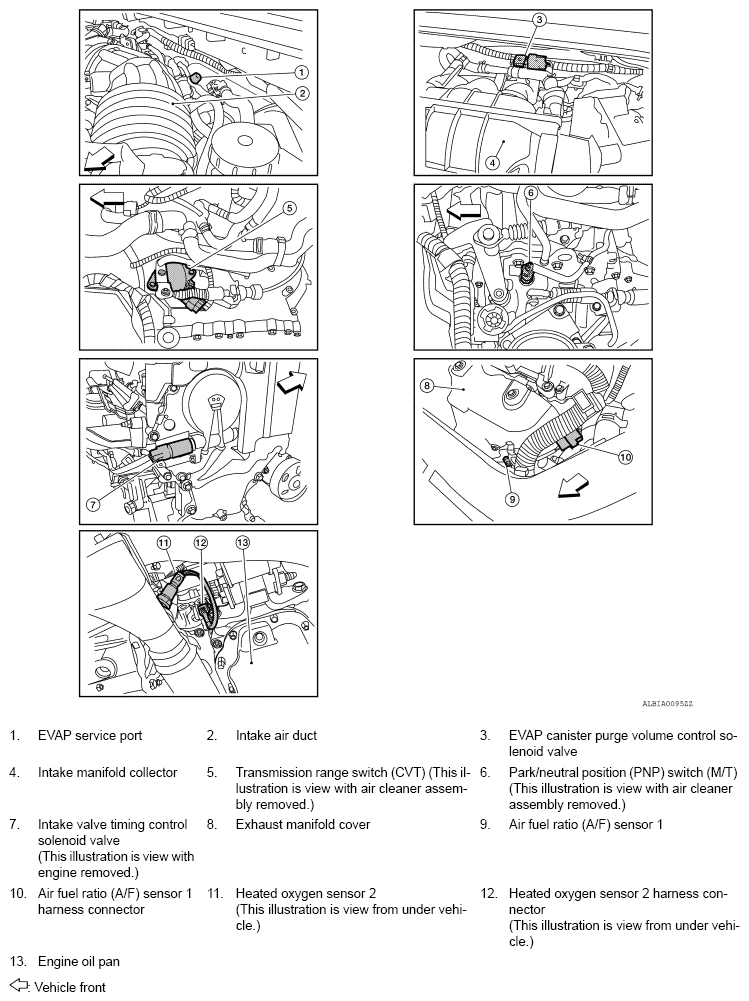

Fig 5: Intake Valve Timing Control Component Parts Location (5 Of 7)
G08432902Courtesy of NISSAN NORTH AMERICA, INC.

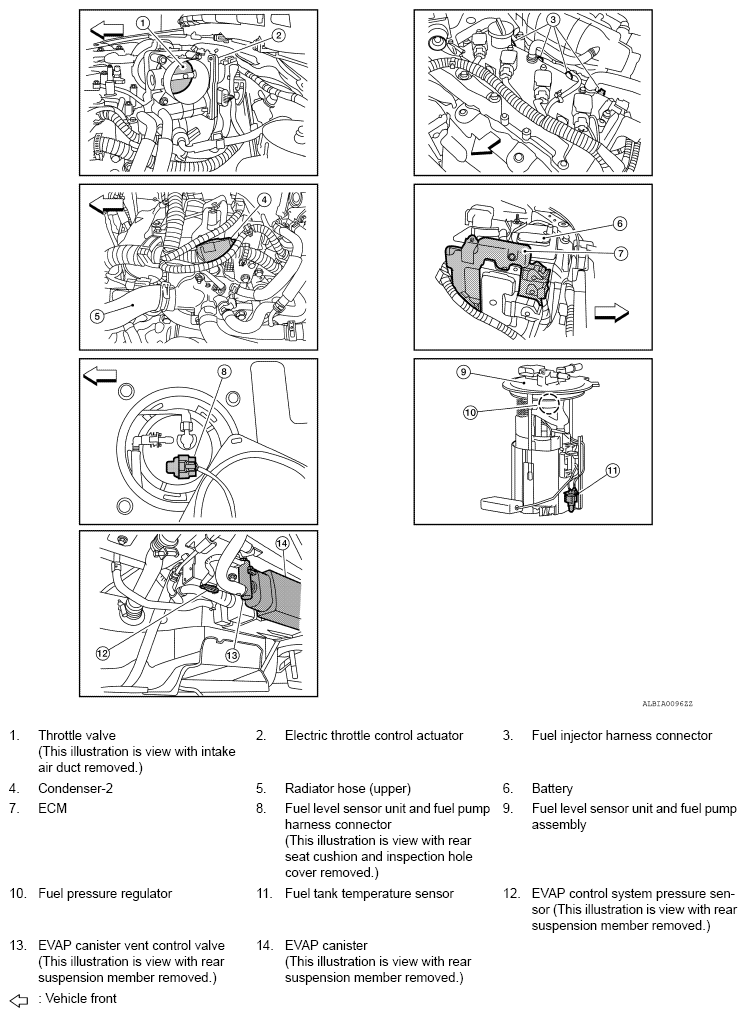

Fig 6: Intake Valve Timing Control Component Parts Location (6 Of 7)
G08432903Courtesy of NISSAN NORTH AMERICA, INC.

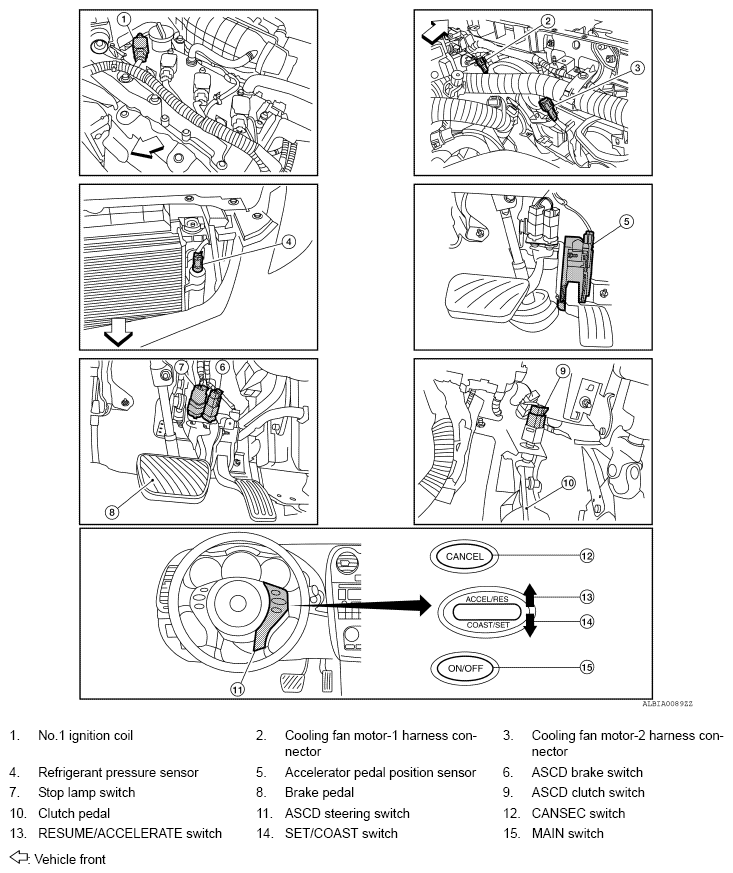

Fig 7: Intake Valve Timing Control Component Parts Location (7 Of 7)
G08432904Courtesy of NISSAN NORTH AMERICA, INC.
