Connector Terminal Identification

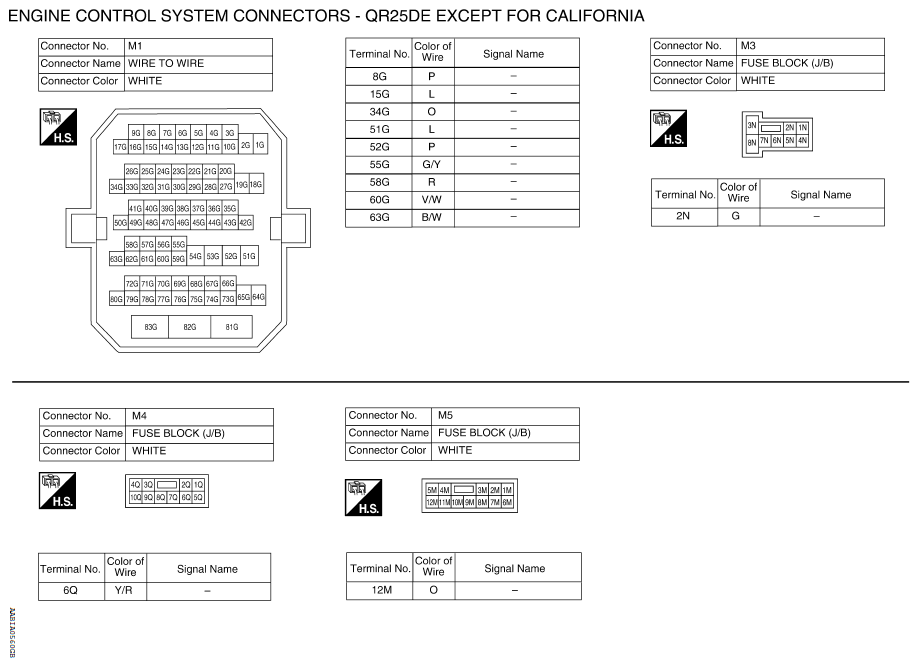

Fig 1: Identifying Engine Control System Connectors - QR25DE Except For California (1 Of 16)
G07001470Courtesy of NISSAN NORTH AMERICA, INC.

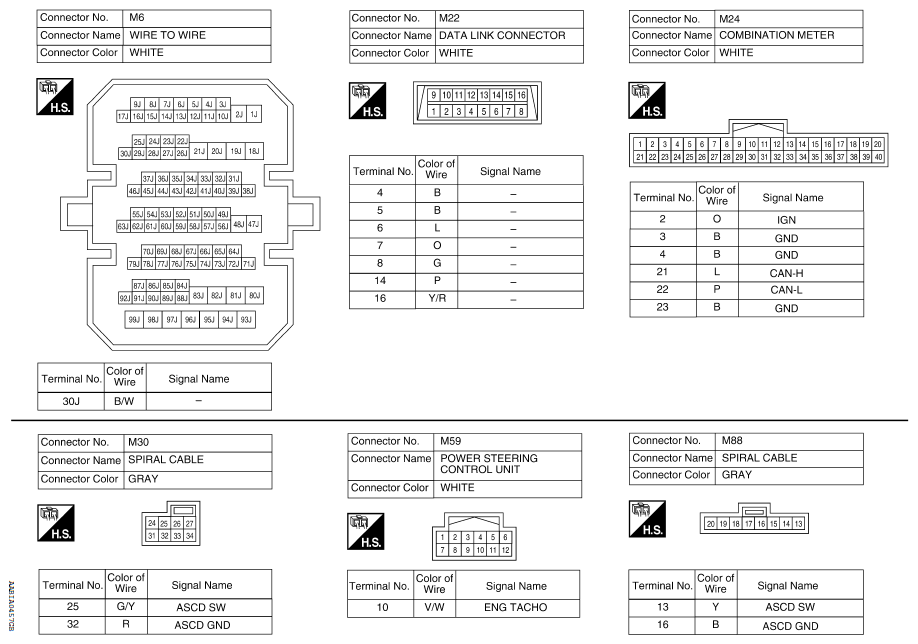

Fig 2: Identifying Engine Control System Connectors - QR25DE Except For California (2 Of 16)
G07001471Courtesy of NISSAN NORTH AMERICA, INC.

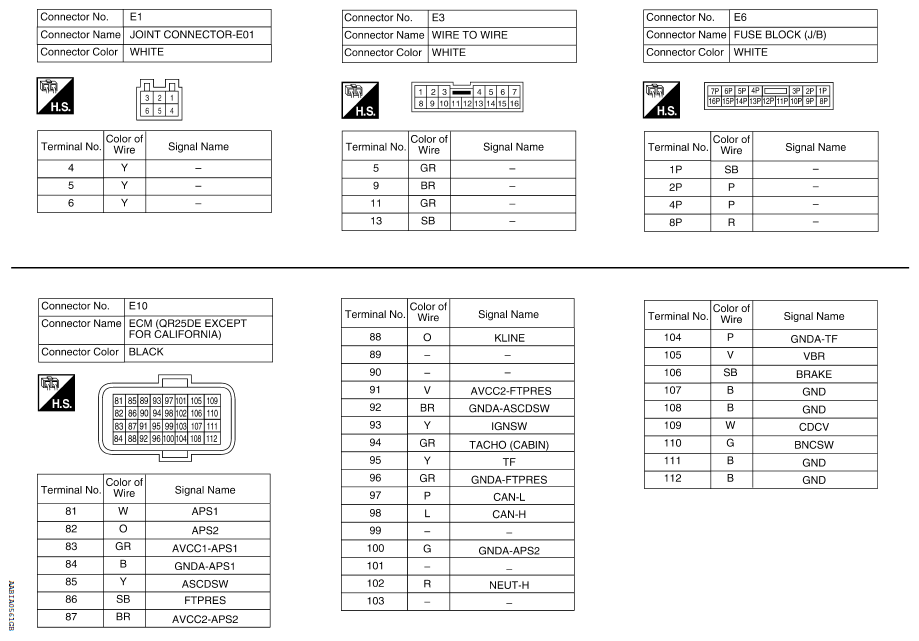

Fig 3: Identifying Engine Control System Connectors - QR25DE Except For California (3 Of 16)
G07001472Courtesy of NISSAN NORTH AMERICA, INC.

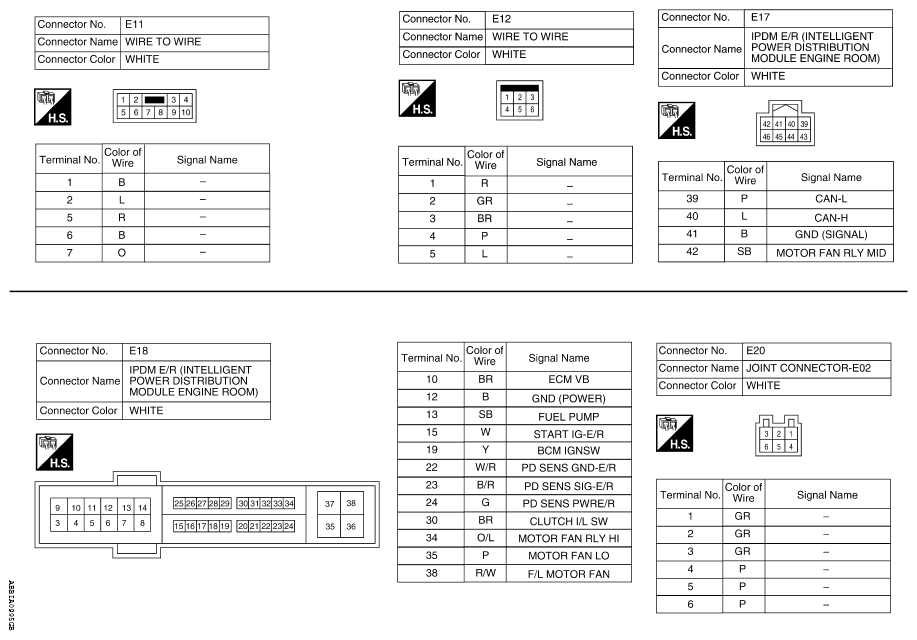

Fig 4: Identifying Engine Control System Connectors - QR25DE Except For California (4 Of 16)
G08112808Courtesy of NISSAN NORTH AMERICA, INC.

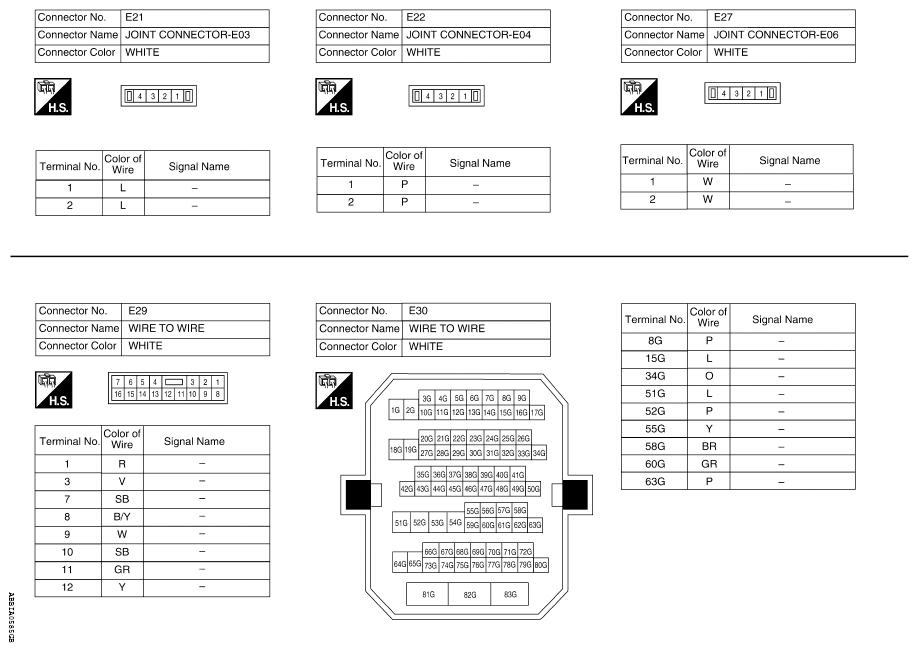

Fig 5: Identifying Engine Control System Connectors - QR25DE Except For California (5 Of 16)
G06557561Courtesy of NISSAN NORTH AMERICA, INC.

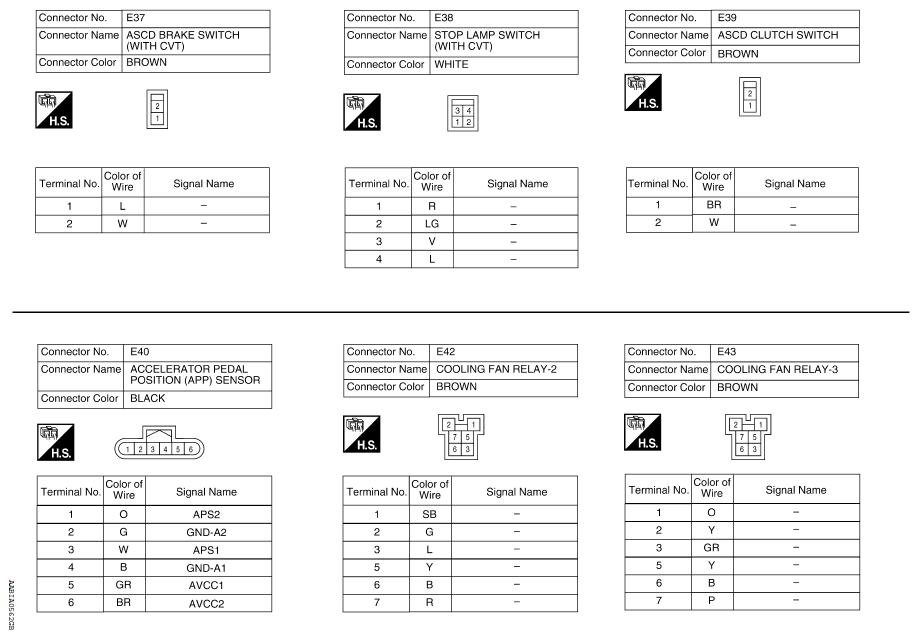

Fig 6: Identifying Engine Control System Connectors - QR25DE Except For California (6 Of 16)
G07001475Courtesy of NISSAN NORTH AMERICA, INC.

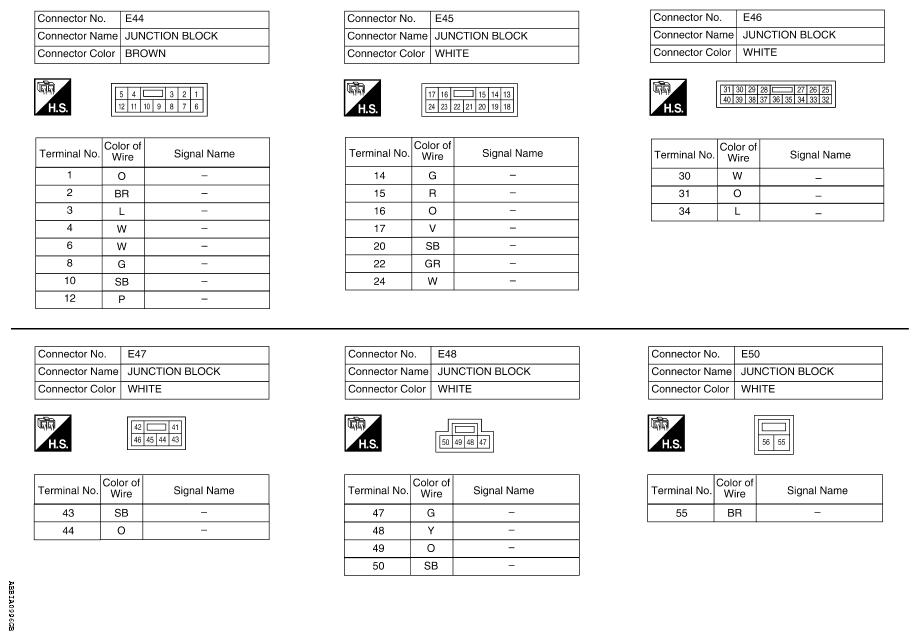

Fig 7: Identifying Engine Control System Connectors - QR25DE Except For California (7 Of 16)
G08112811Courtesy of NISSAN NORTH AMERICA, INC.

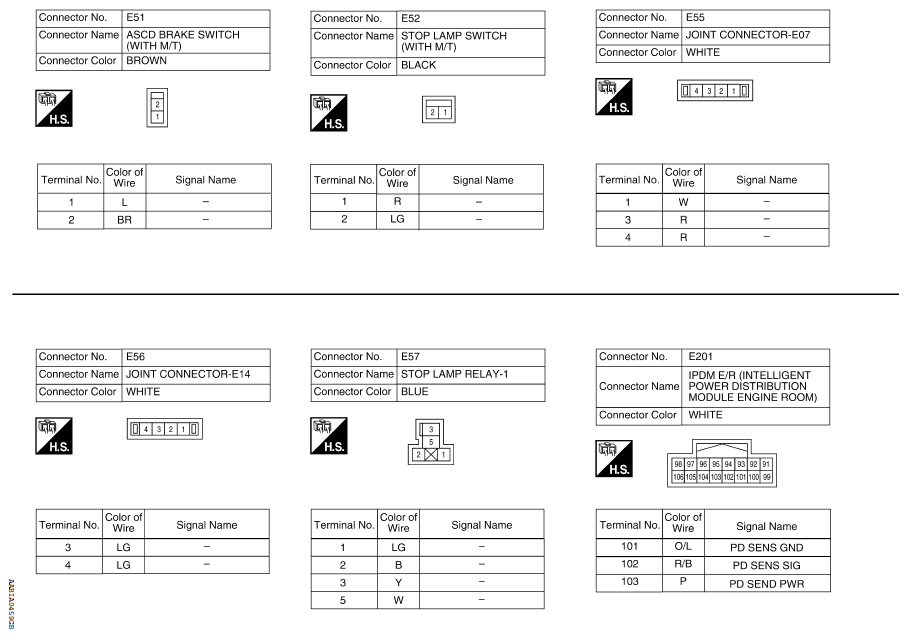

Fig 8: Identifying Engine Control System Connectors - QR25DE Except For California (8 Of 16)
G07001477Courtesy of NISSAN NORTH AMERICA, INC.

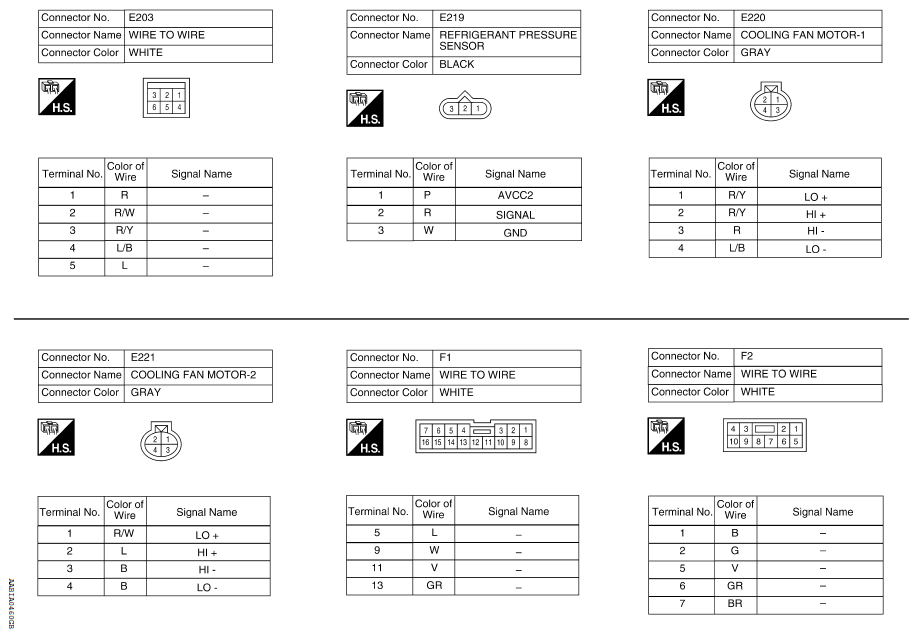

Fig 9: Identifying Engine Control System Connectors - QR25DE Except For California (9 Of 16)
G07001478Courtesy of NISSAN NORTH AMERICA, INC.

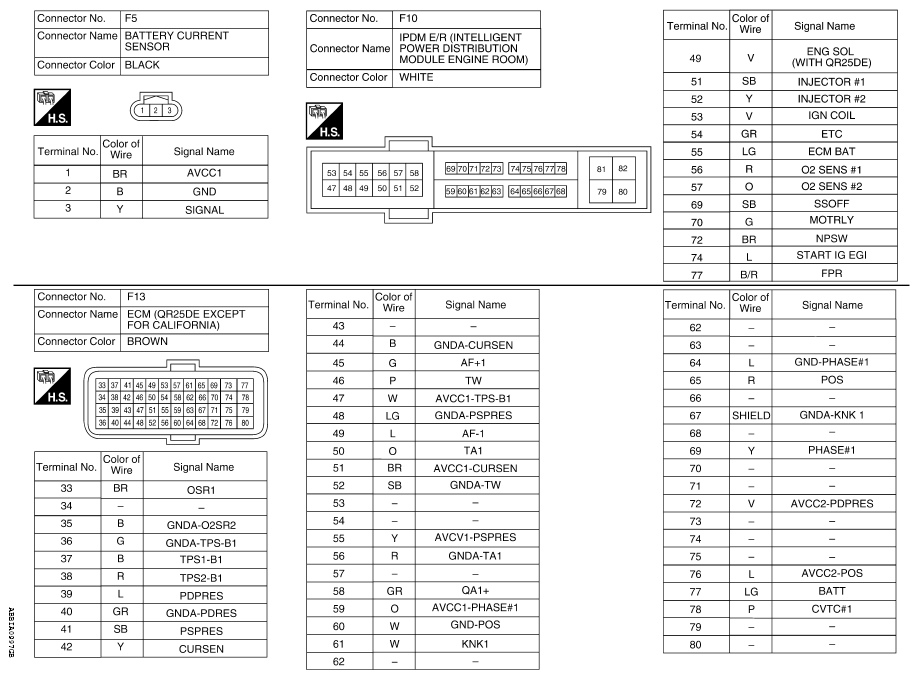

Fig 10: Identifying Engine Control System Connectors - QR25DE Except For California (10 Of 16)
G08112814Courtesy of NISSAN NORTH AMERICA, INC.

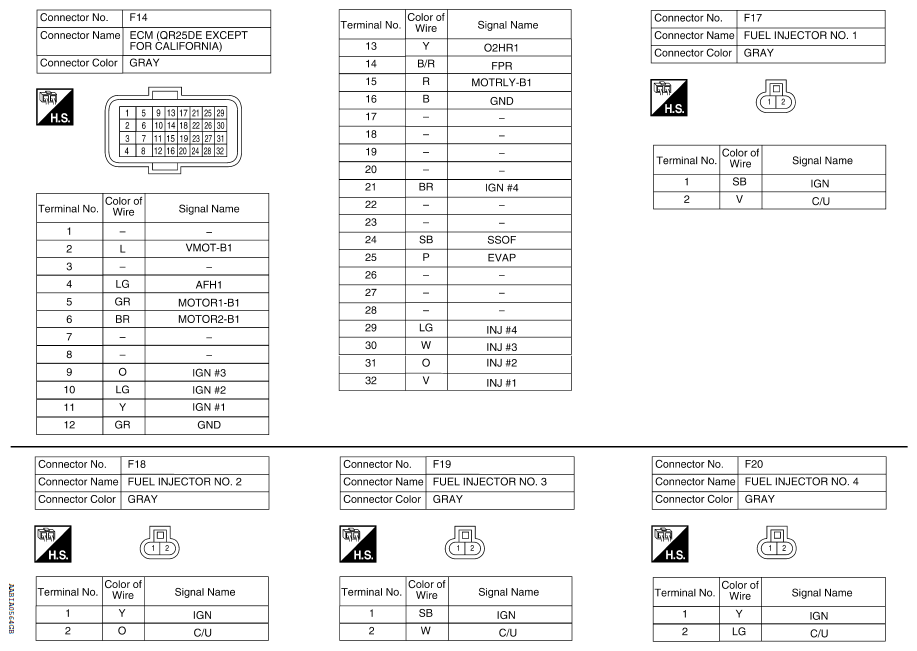

Fig 11: Identifying Engine Control System Connectors - QR25DE Except For California (11 Of 16)
G07001480Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Identifying Engine Control System Connectors - QR25DE Except For California (12 Of 16)

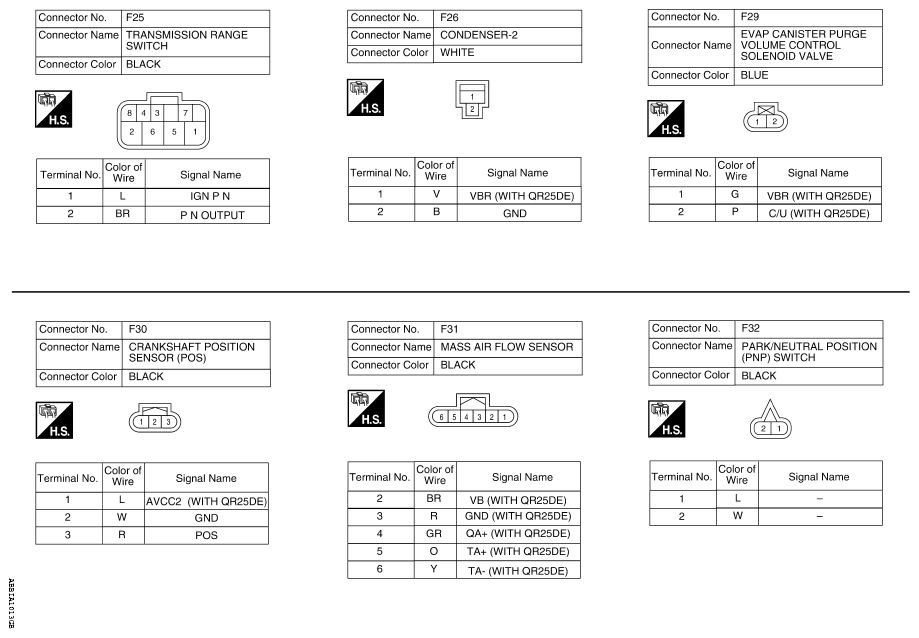

G08112816Courtesy of NISSAN NORTH AMERICA, INC.

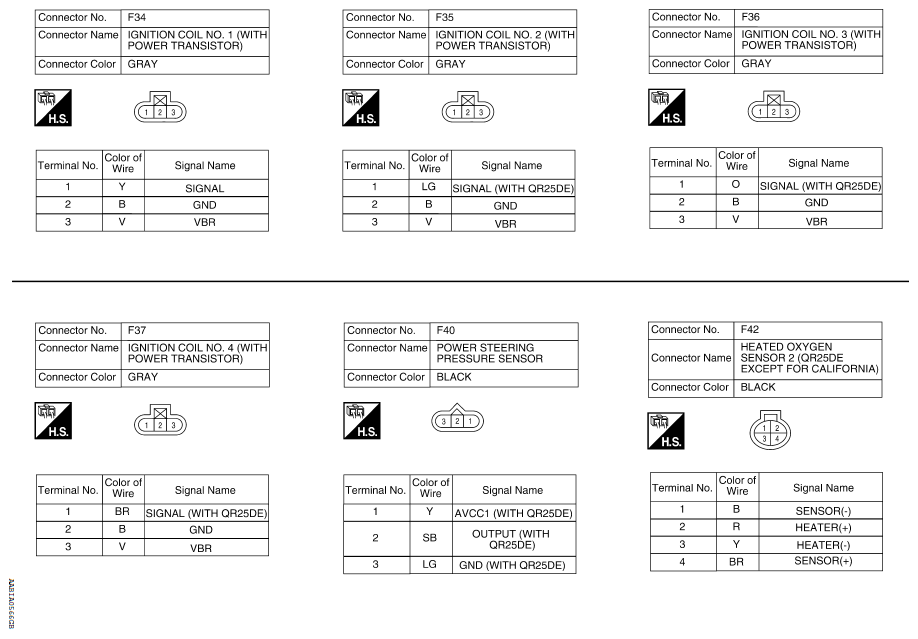

Fig 13: Identifying Engine Control System Connectors - QR25DE Except For California (13 Of 16)
G07001482Courtesy of NISSAN NORTH AMERICA, INC.

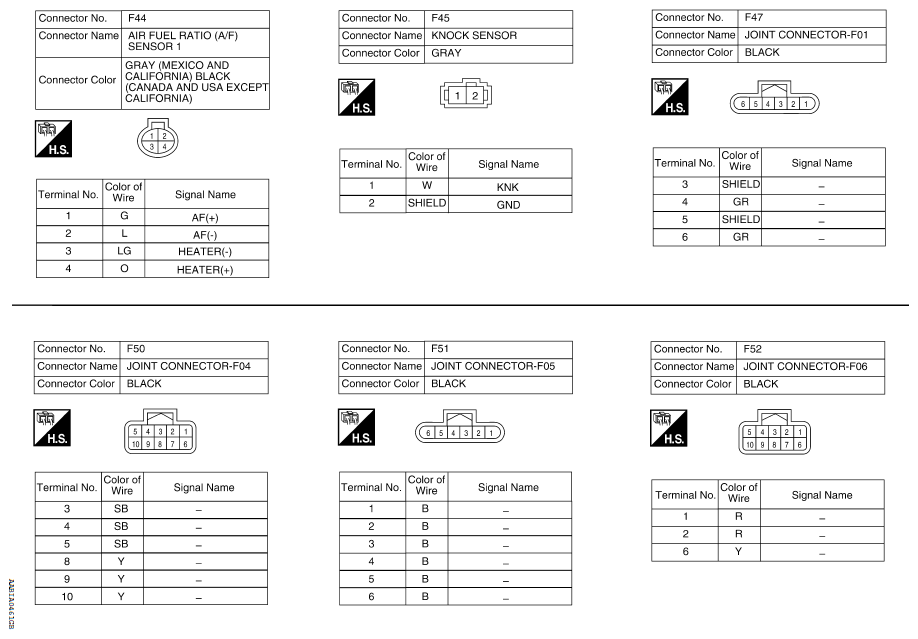

Fig 14: Identifying Engine Control System Connectors - QR25DE Except For California (14 Of 16)
G07001483Courtesy of NISSAN NORTH AMERICA, INC.

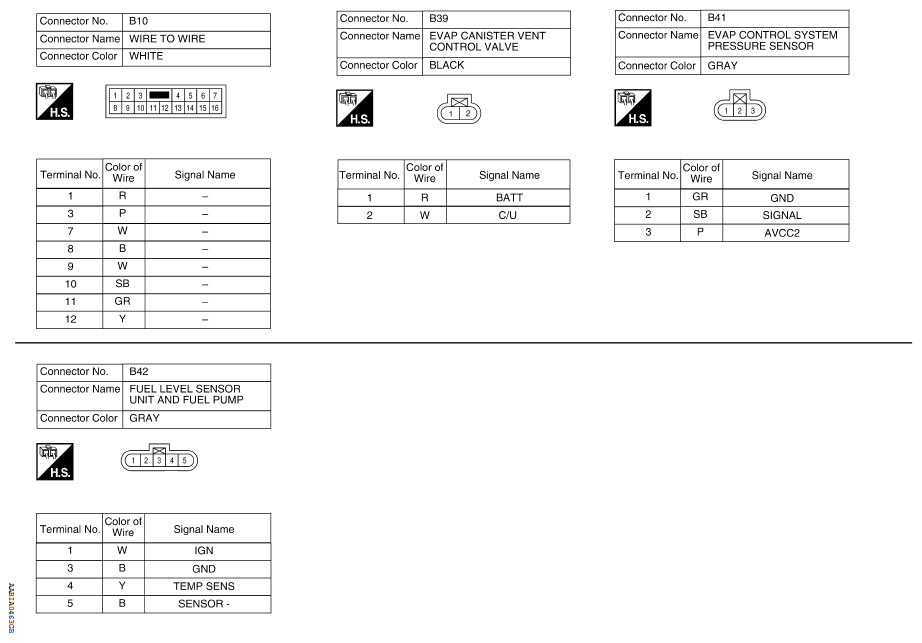

Fig 15: Identifying Engine Control System Connectors - QR25DE Except For California (15 Of 16)
G07001484Courtesy of NISSAN NORTH AMERICA, INC.

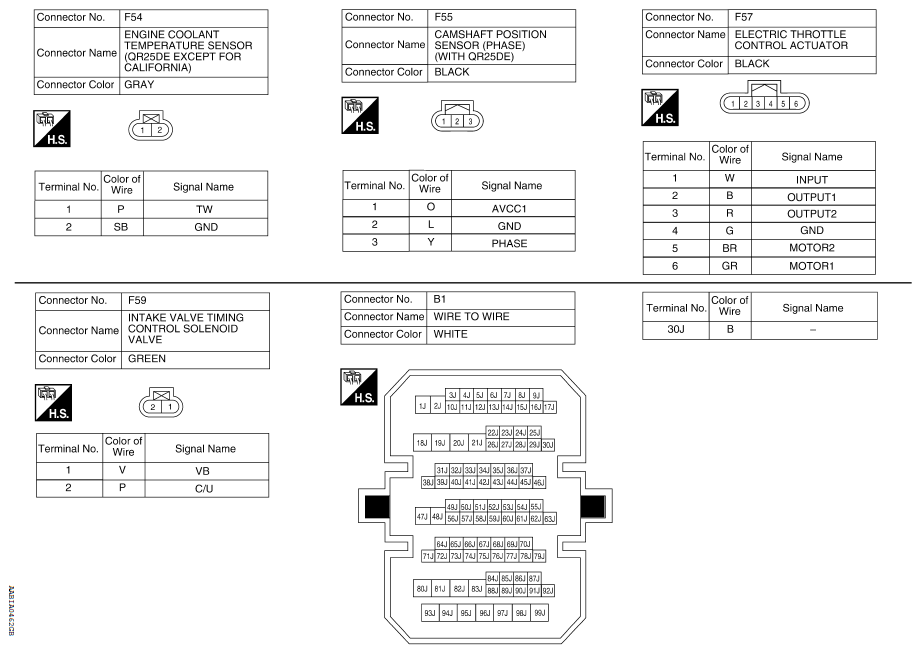

Fig 16: Identifying Engine Control System Connectors - QR25DE Except For California (16 Of 16)
G07001485Courtesy of NISSAN NORTH AMERICA, INC.
