Component Parts Location

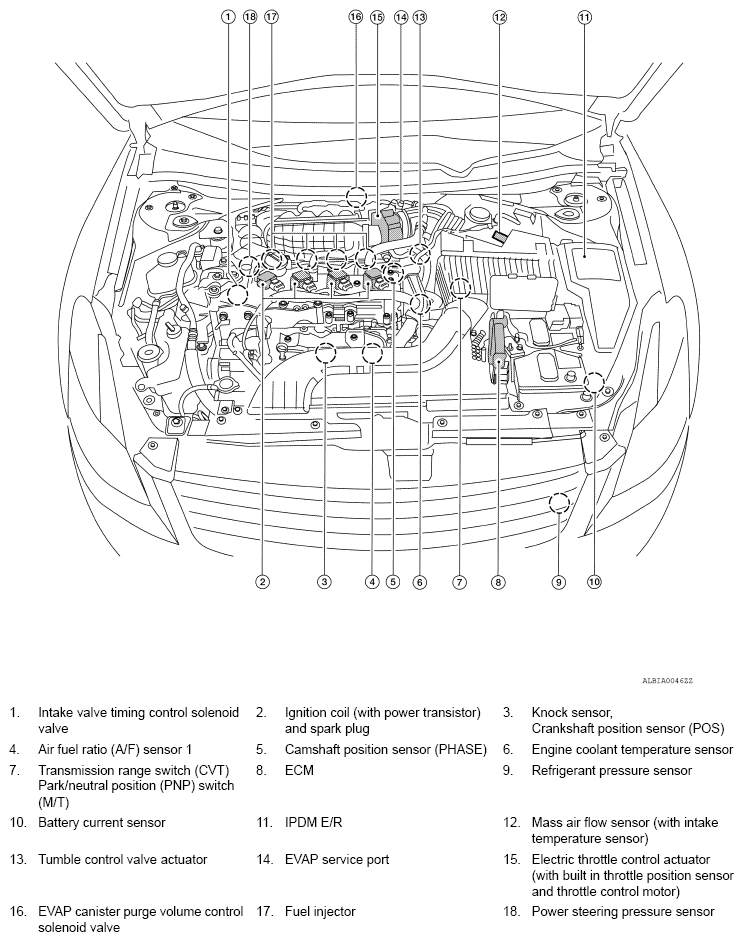

Fig 1: Intake Valve Timing Control Component Parts Location (1 Of 7)
G08432392Courtesy of NISSAN NORTH AMERICA, INC.

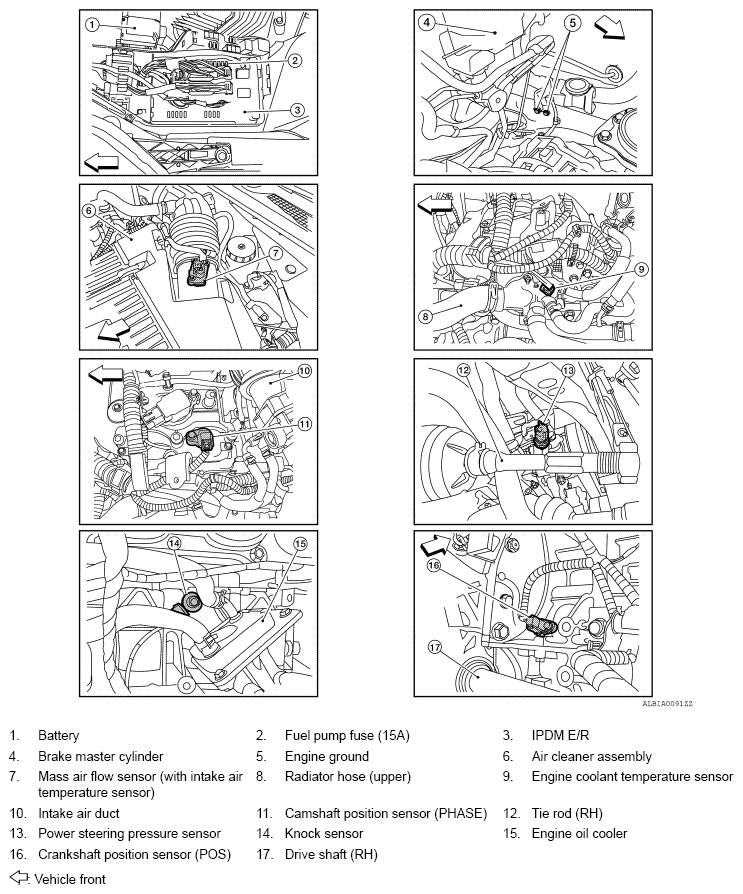

Fig 2: Intake Valve Timing Control Component Parts Location (2 Of 7)
G08432393Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intake Valve Timing Control Component Parts Location (3 Of 7)
G05029836Courtesy of NISSAN NORTH AMERICA, INC.

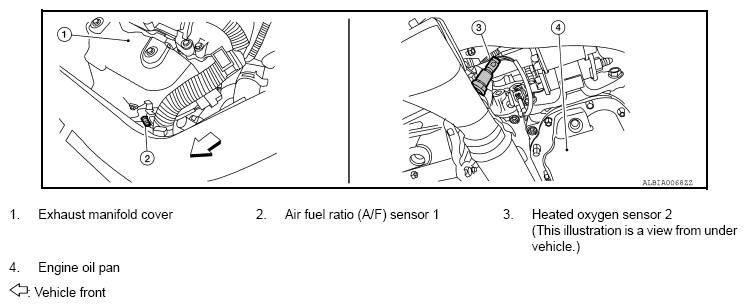

Fig 4: Intake Valve Timing Control Component Parts Location (4 Of 7)
G08432395Courtesy of NISSAN NORTH AMERICA, INC.

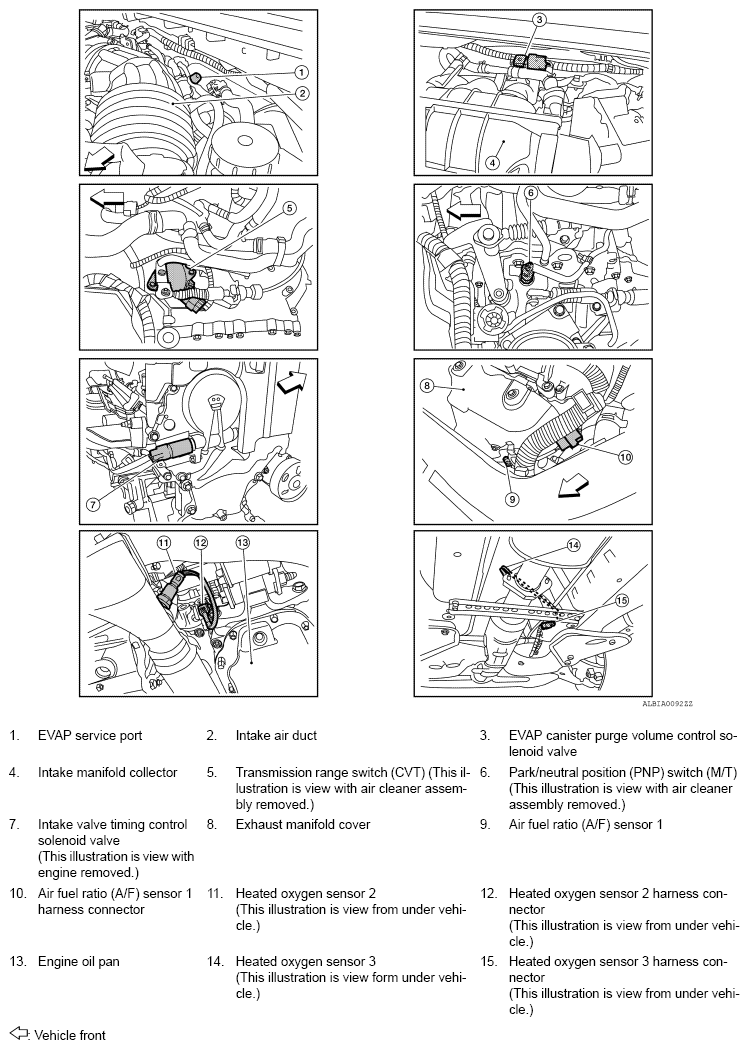

Fig 5: Intake Valve Timing Control Component Parts Location (5 Of 7)
G08432396Courtesy of NISSAN NORTH AMERICA, INC.

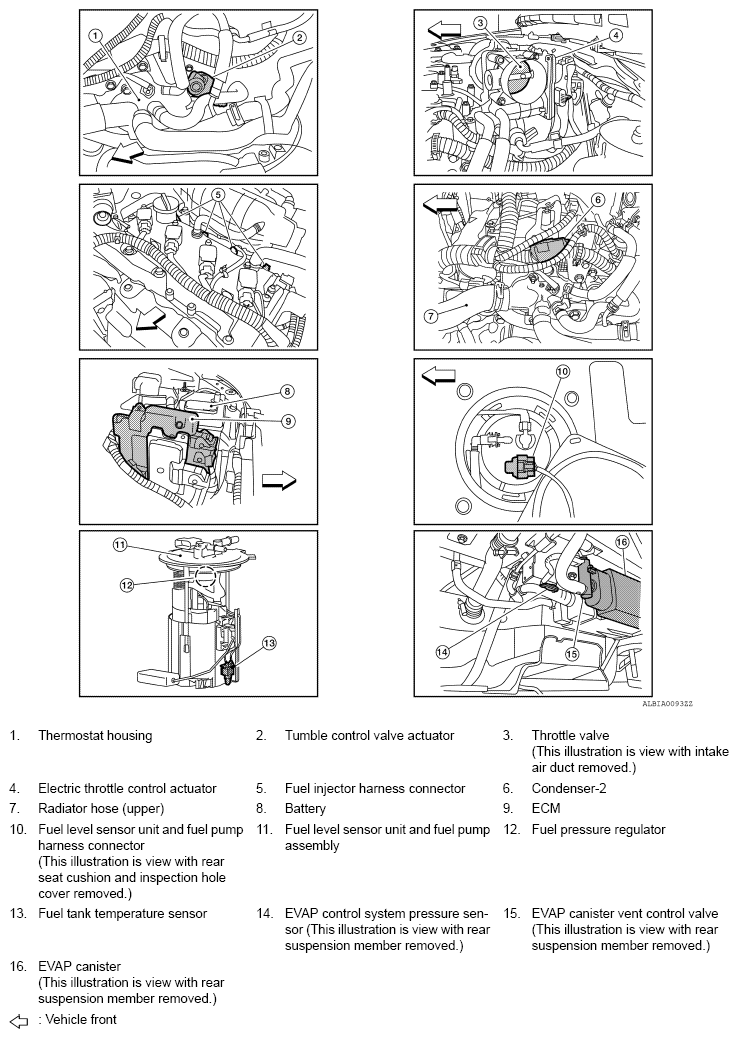

Fig 6: Intake Valve Timing Control Component Parts Location (6 Of 7)
G08432397Courtesy of NISSAN NORTH AMERICA, INC.

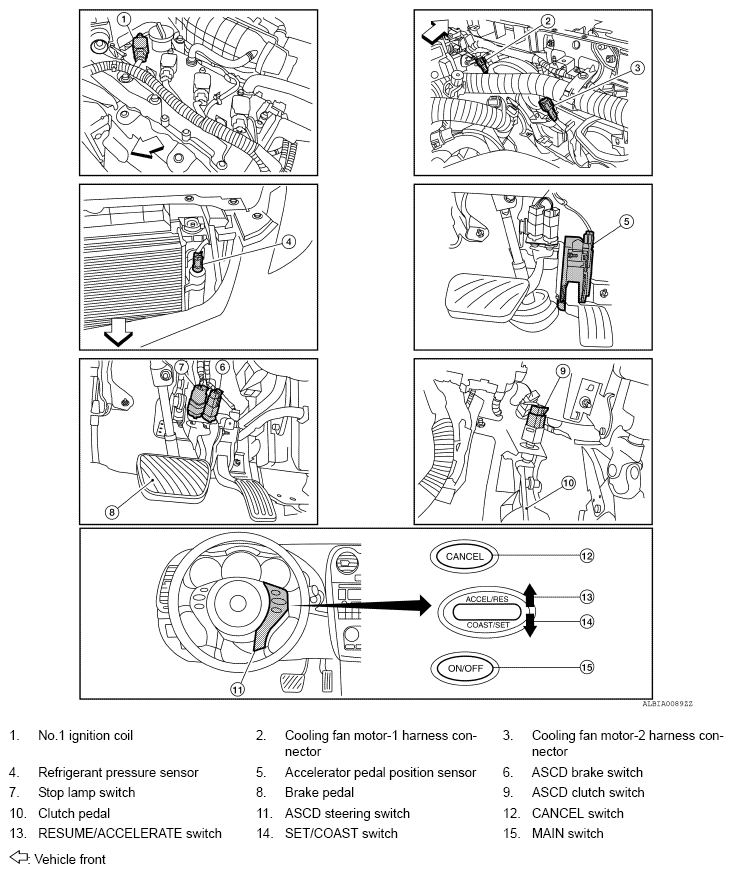

Fig 7: Intake Valve Timing Control Component Parts Location (7 Of 7)
G08432398Courtesy of NISSAN NORTH AMERICA, INC.
