Component Parts Location

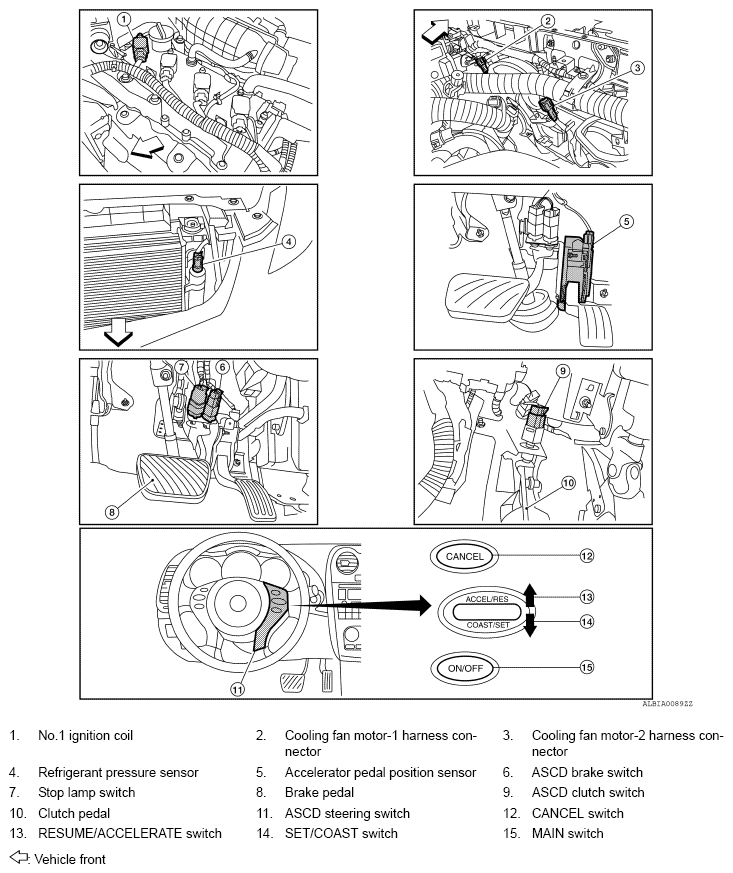

Fig 1: Tumble Control Valve Control System Component Parts Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

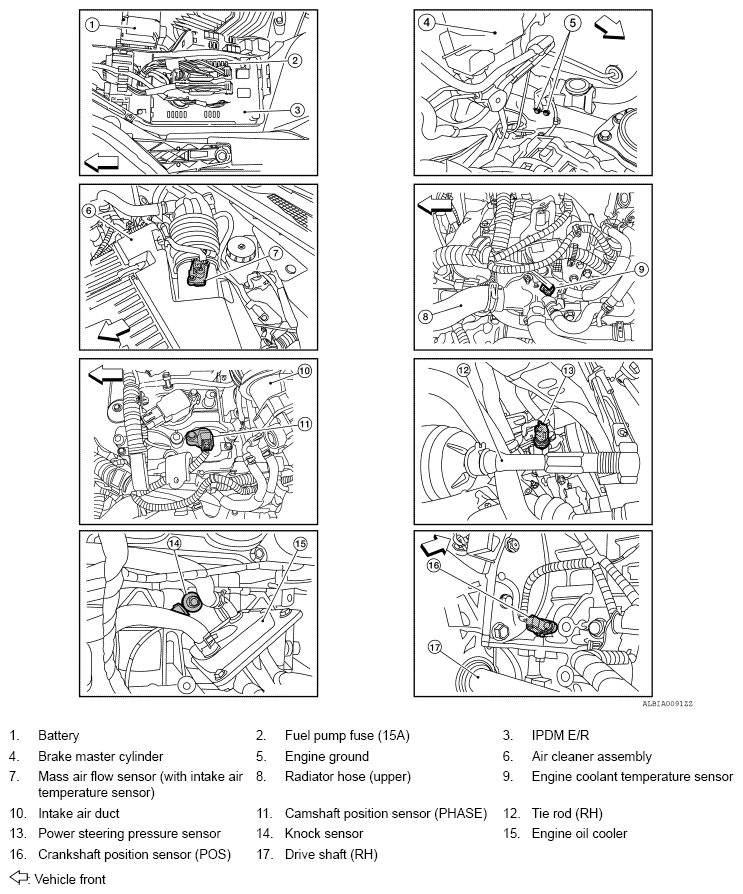

Fig 2: Tumble Control Valve Control System Component Parts Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

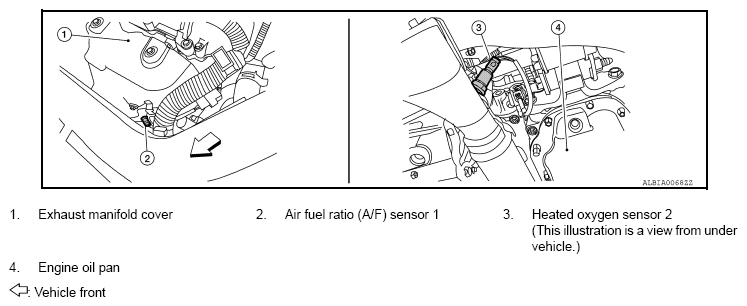

Fig 3: Tumble Control Valve Control System Component Parts Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

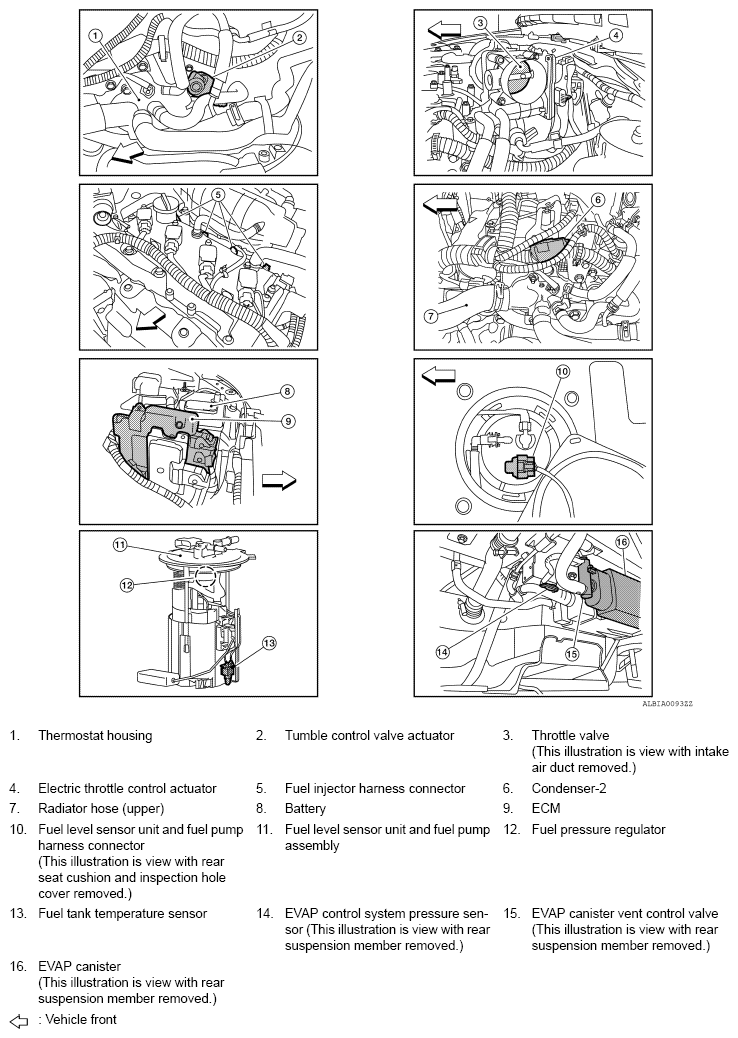

Fig 4: Tumble Control Valve Control System Component Parts Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

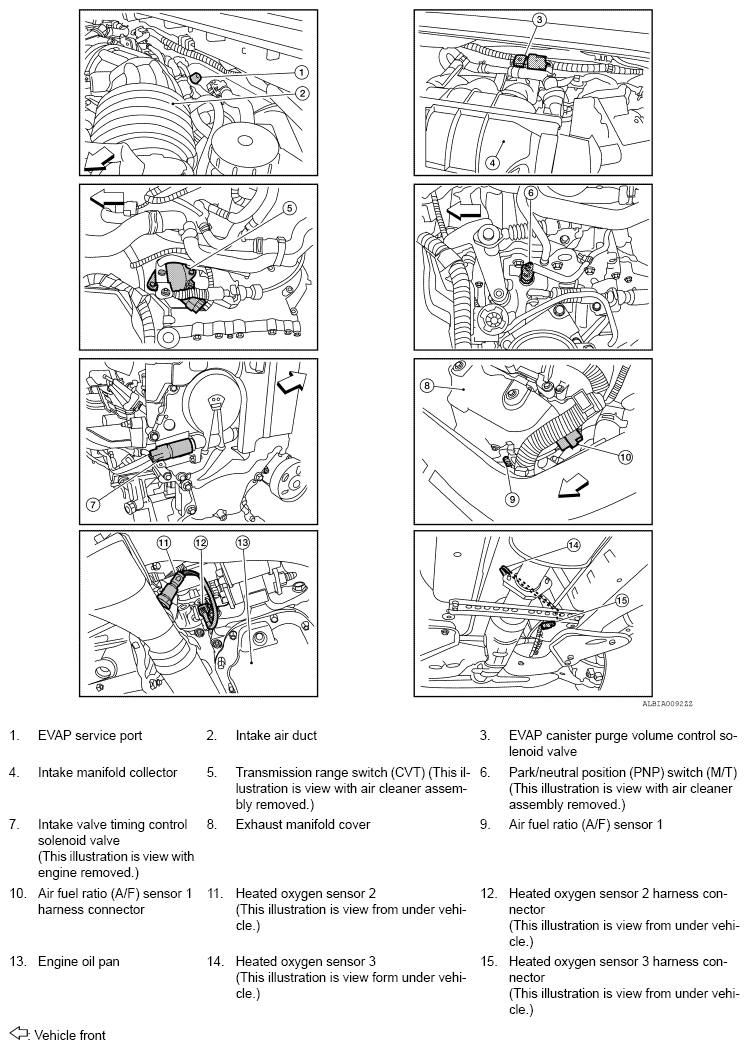

Fig 5: Tumble Control Valve Control System Component Parts Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Tumble Control Valve Control System Component Parts Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Tumble Control Valve Control System Component Parts Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
