Component Parts Location

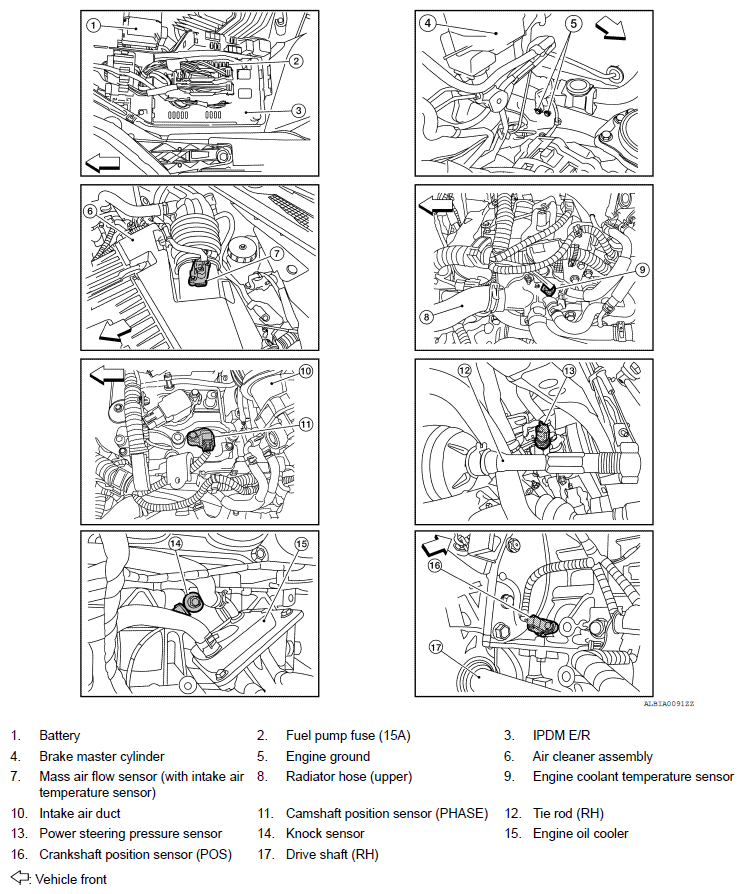

Fig 1: Air Conditioning Cut Control System Components Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

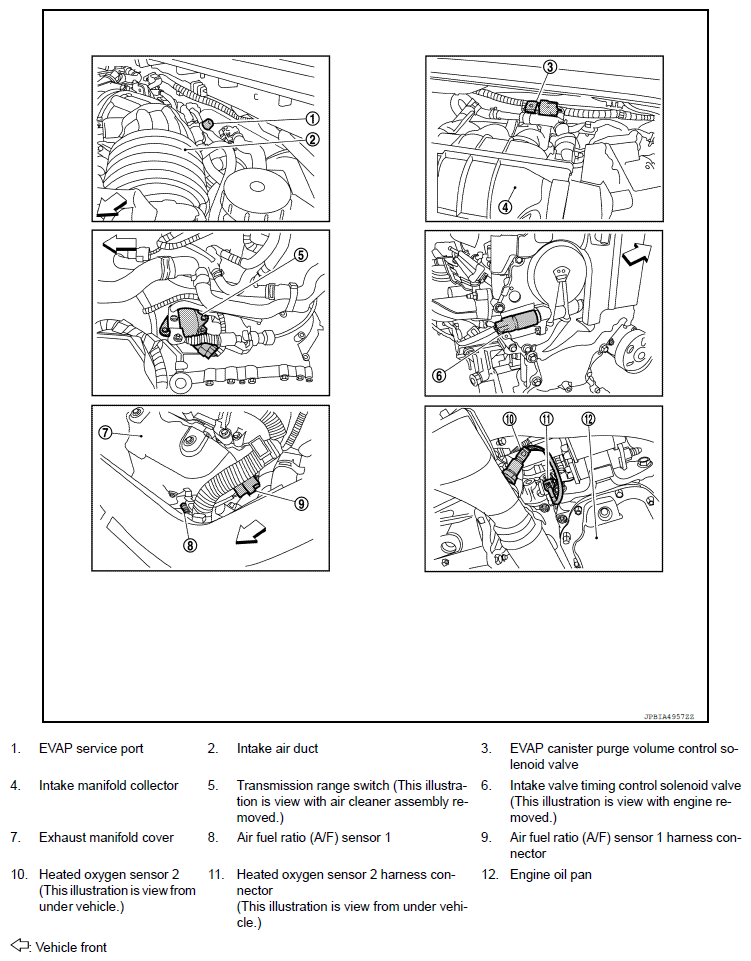

Fig 2: Air Conditioning Cut Control System Components Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

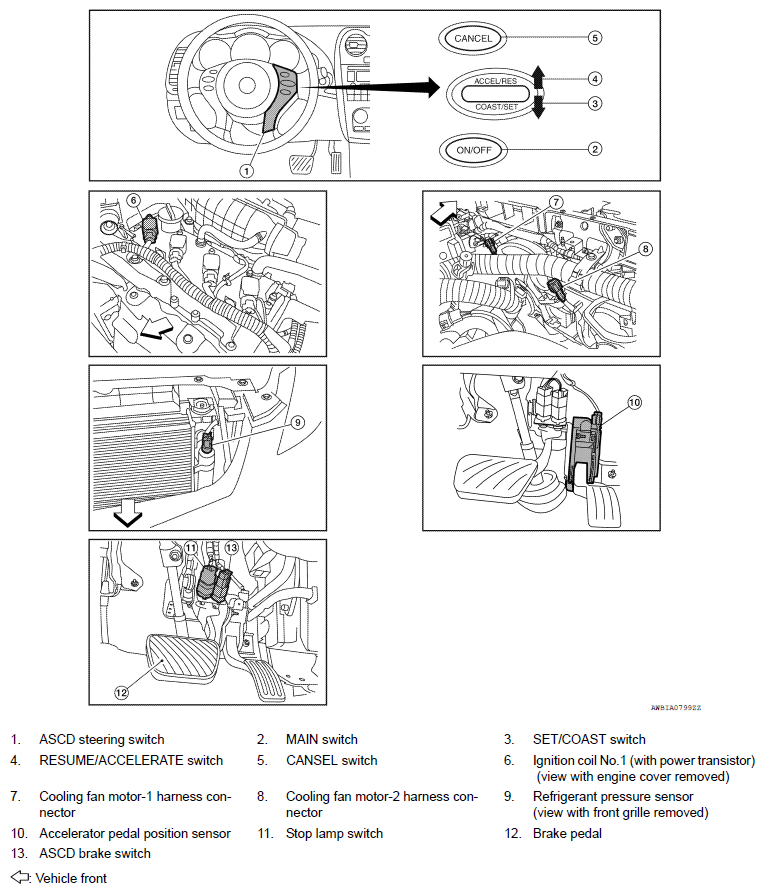

Fig 3: Air Conditioning Cut Control System Components Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

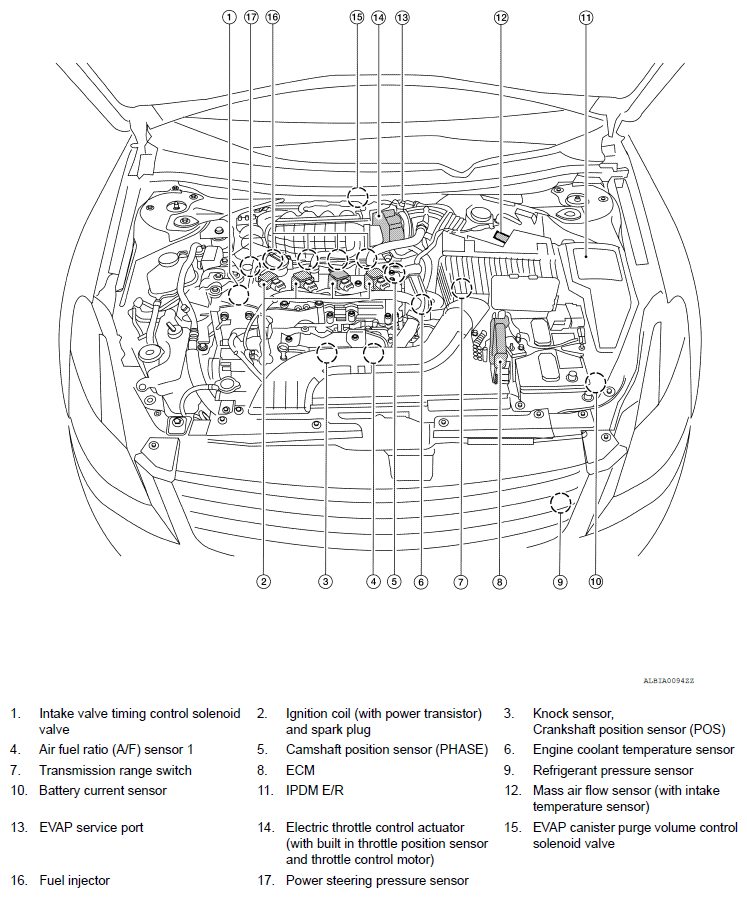

Fig 4: Air Conditioning Cut Control System Components Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

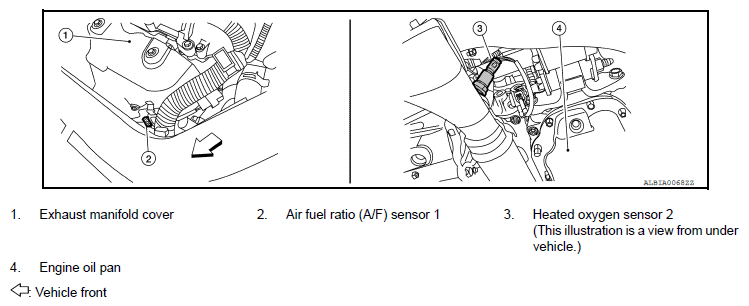

Fig 5: Air Conditioning Cut Control System Components Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

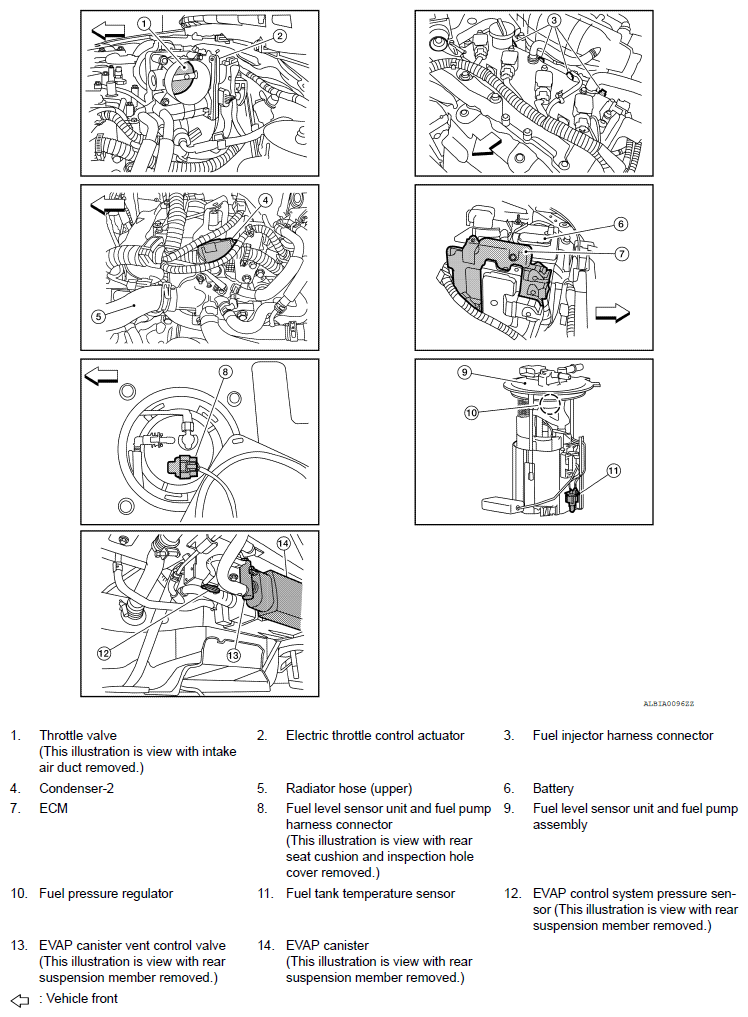

Fig 6: Air Conditioning Cut Control System Components Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Air Conditioning Cut Control System Components Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
