Component Parts Location

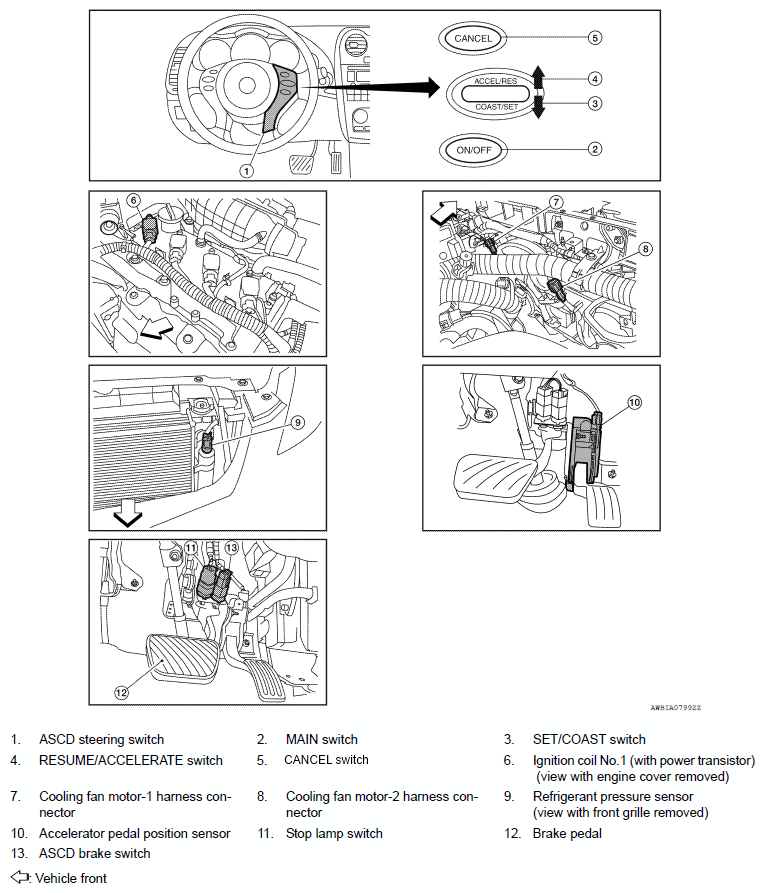

Fig 1: Automatic Speed Control Device Components Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

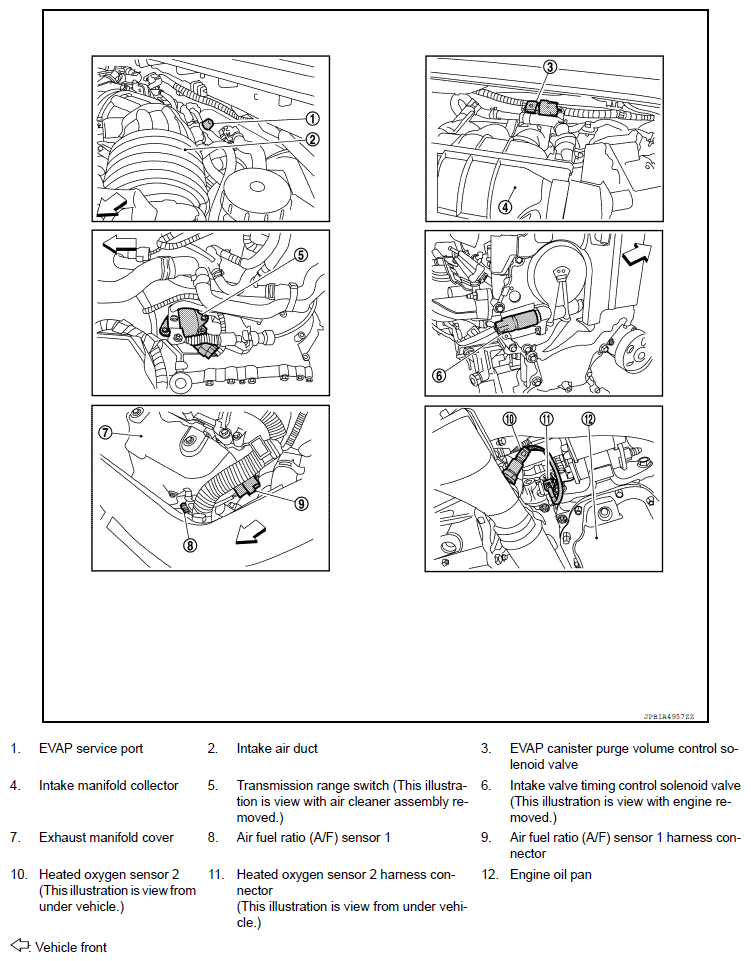

Fig 2: Automatic Speed Control Device Components Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

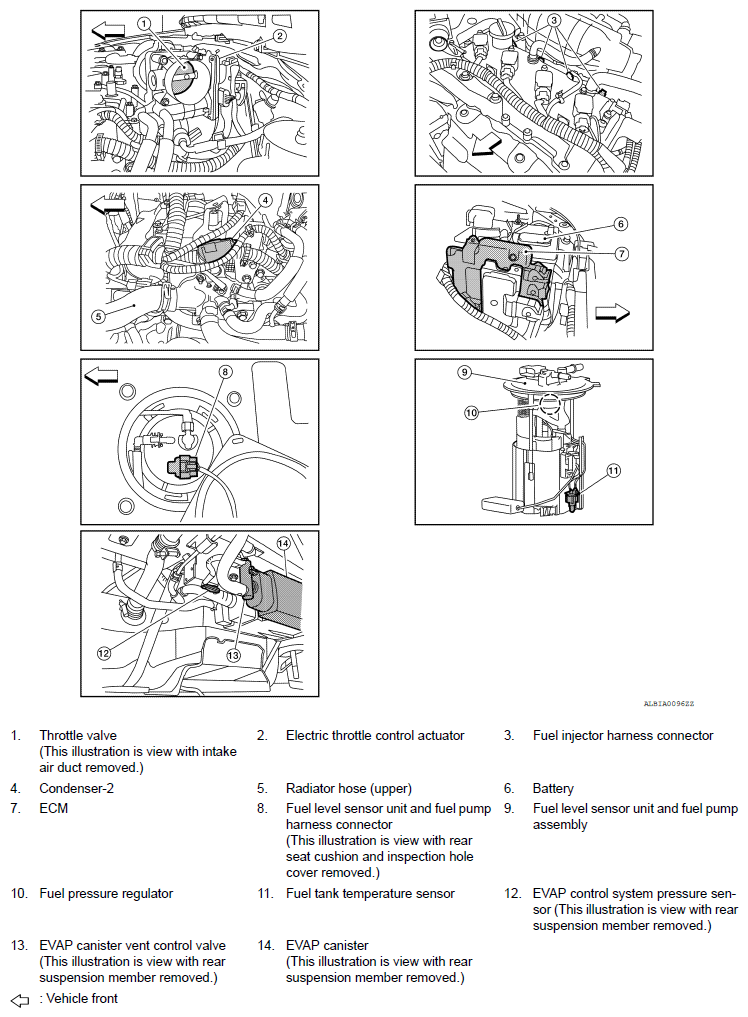

Fig 3: Automatic Speed Control Device Components Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

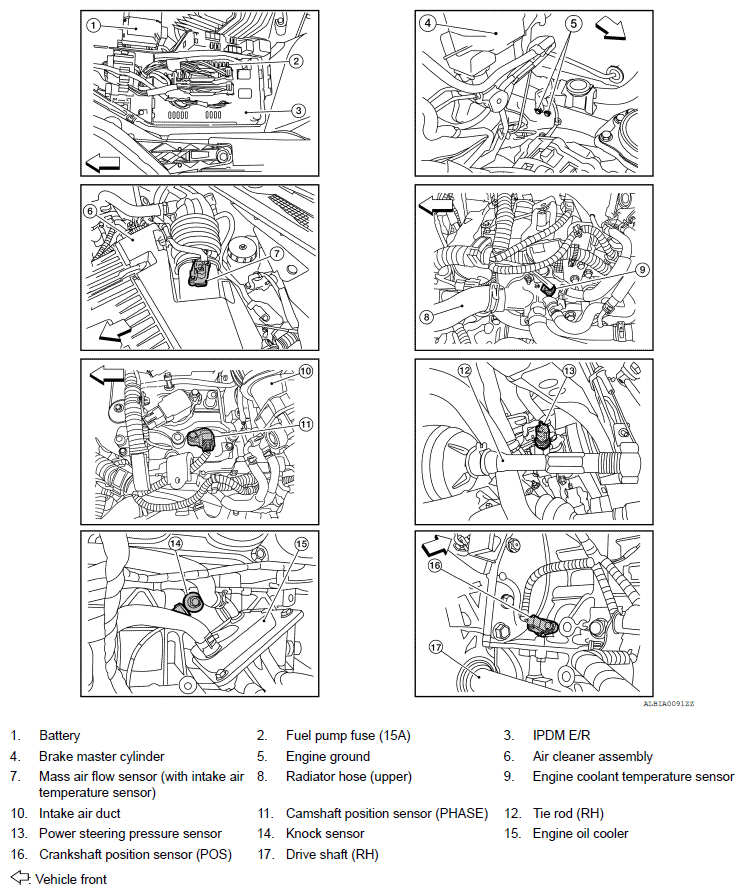

Fig 4: Automatic Speed Control Device Components Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Automatic Speed Control Device Components Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Automatic Speed Control Device Components Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Automatic Speed Control Device Components Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
