Component Parts Location

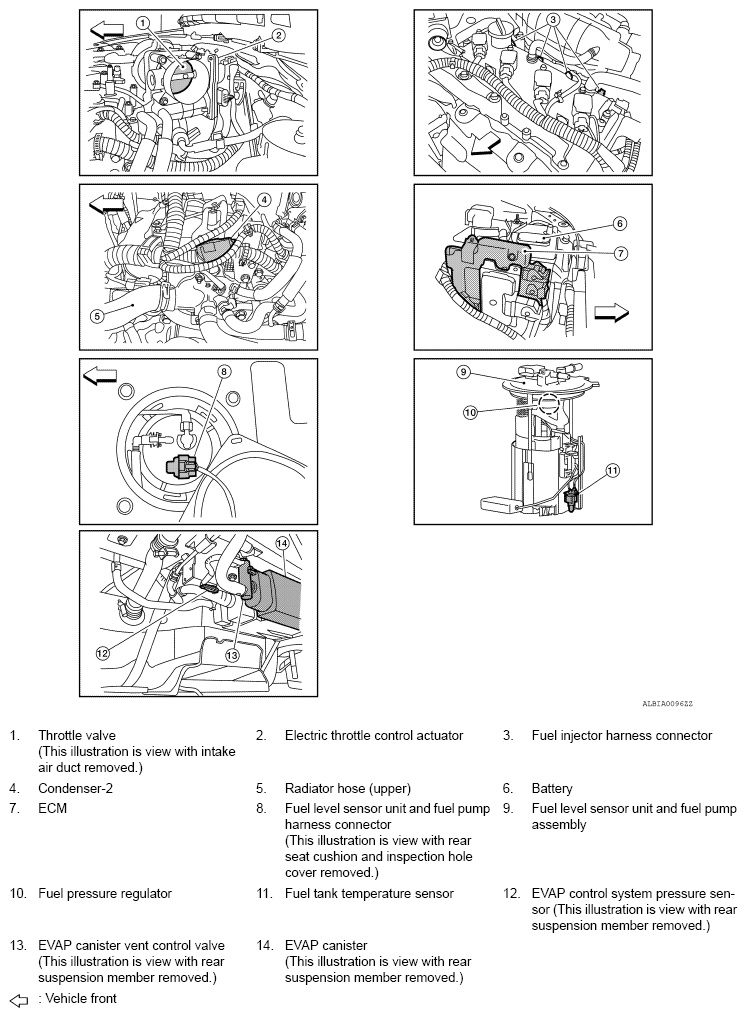

Fig 1: Cooling Fan Control System Components Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

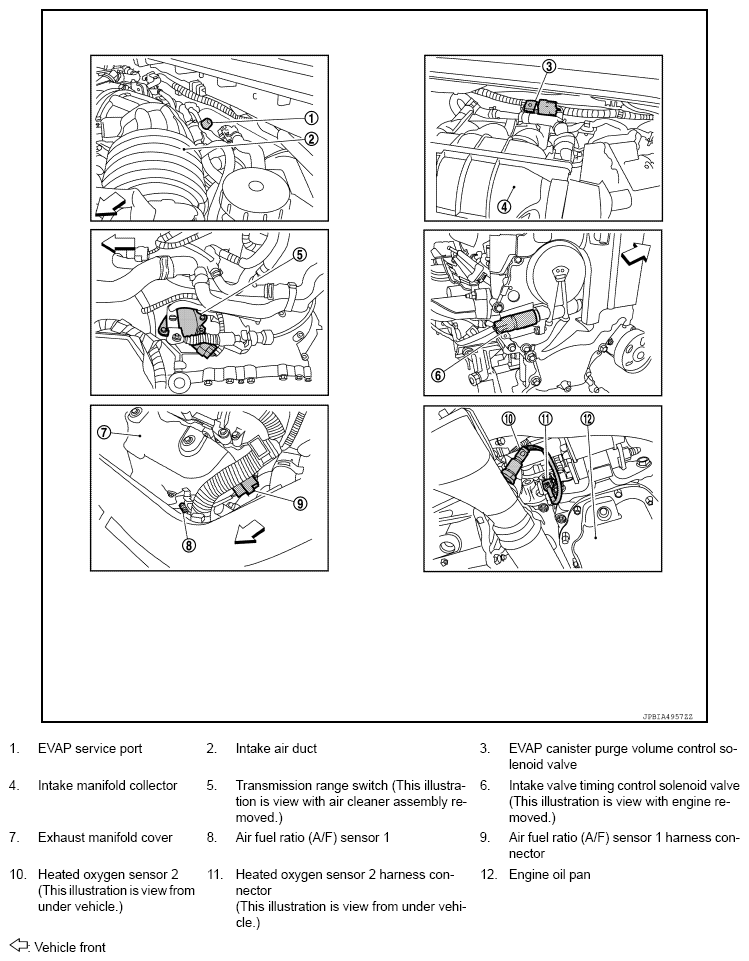

Fig 2: Cooling Fan Control System Components Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

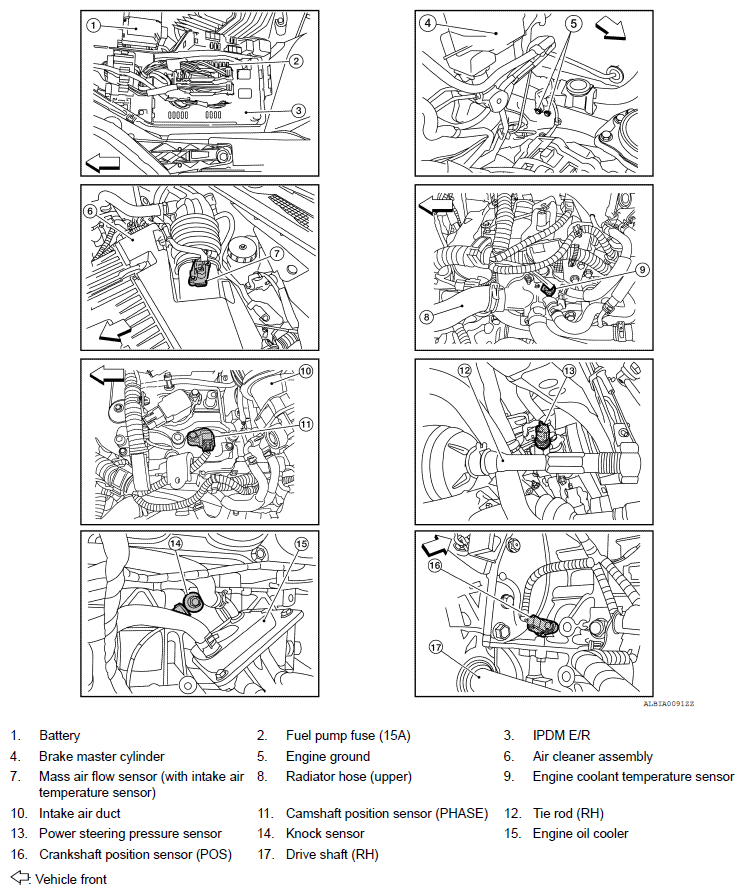

Fig 3: Cooling Fan Control System Components Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Cooling Fan Control System Components Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Cooling Fan Control System Components Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Cooling Fan Control System Components Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control System Components Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
