Component Parts Location

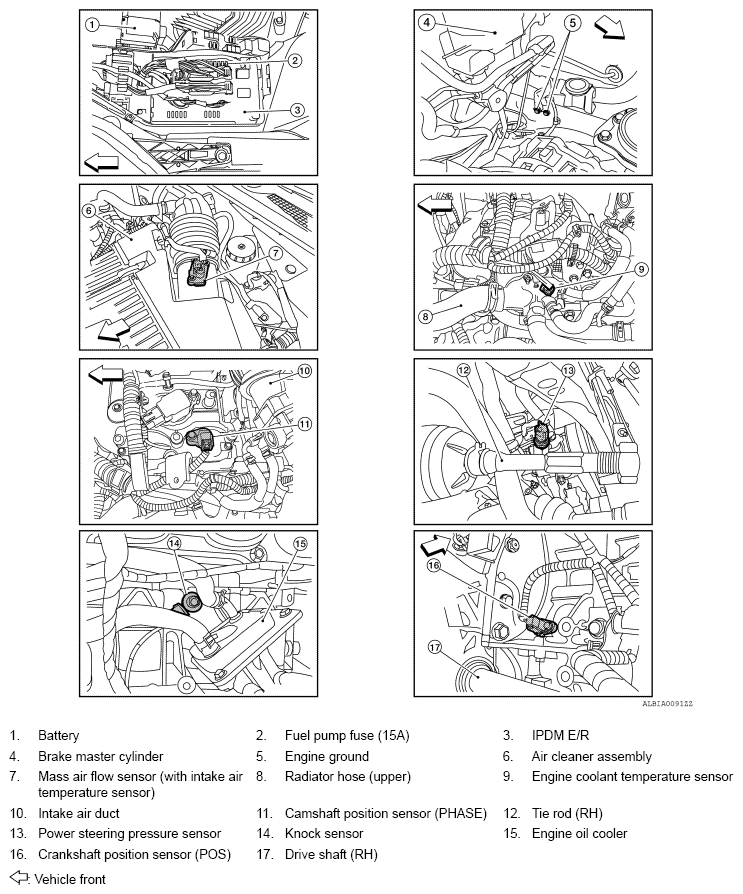

Fig 1: Intake Valve Timing Control Components Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

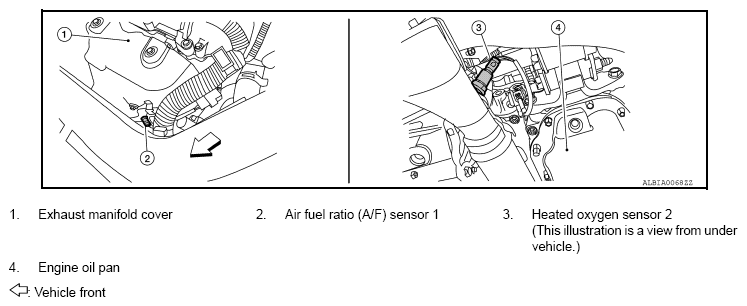

Fig 2: Intake Valve Timing Control Components Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

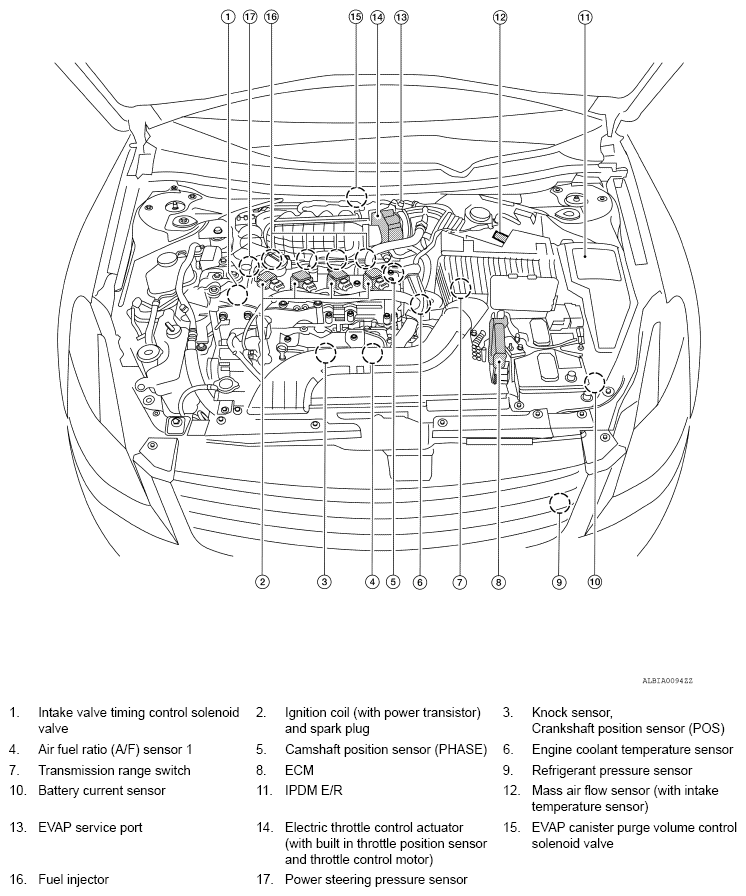

Fig 3: Intake Valve Timing Control Components Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intake Valve Timing Control Components Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

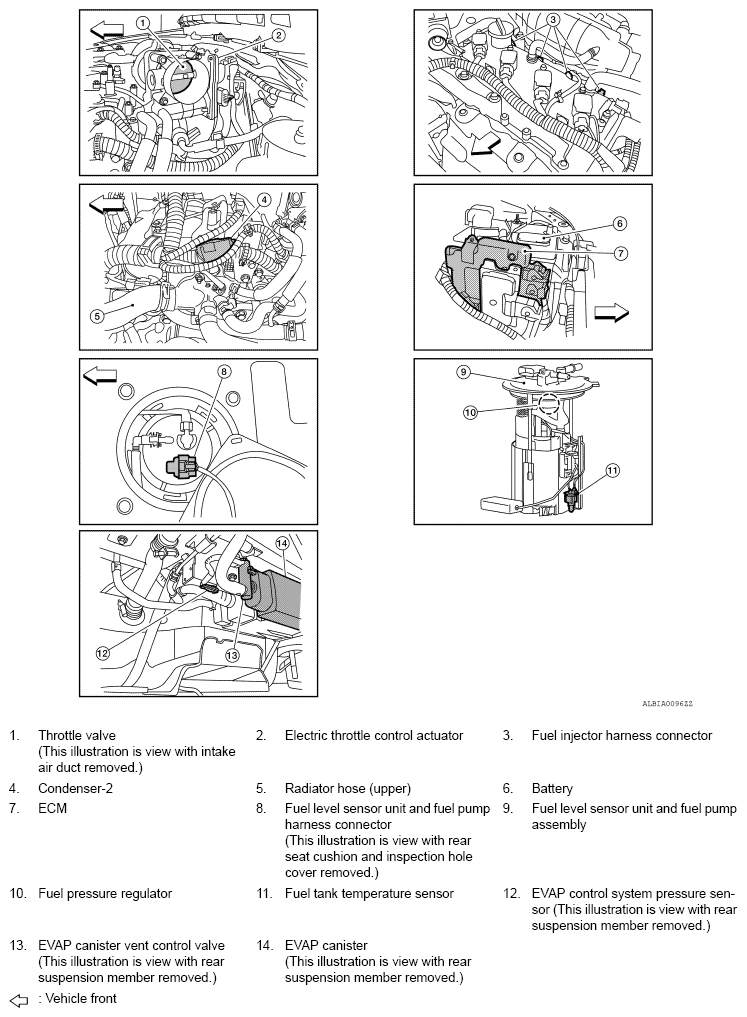

Fig 5: Intake Valve Timing Control Components Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

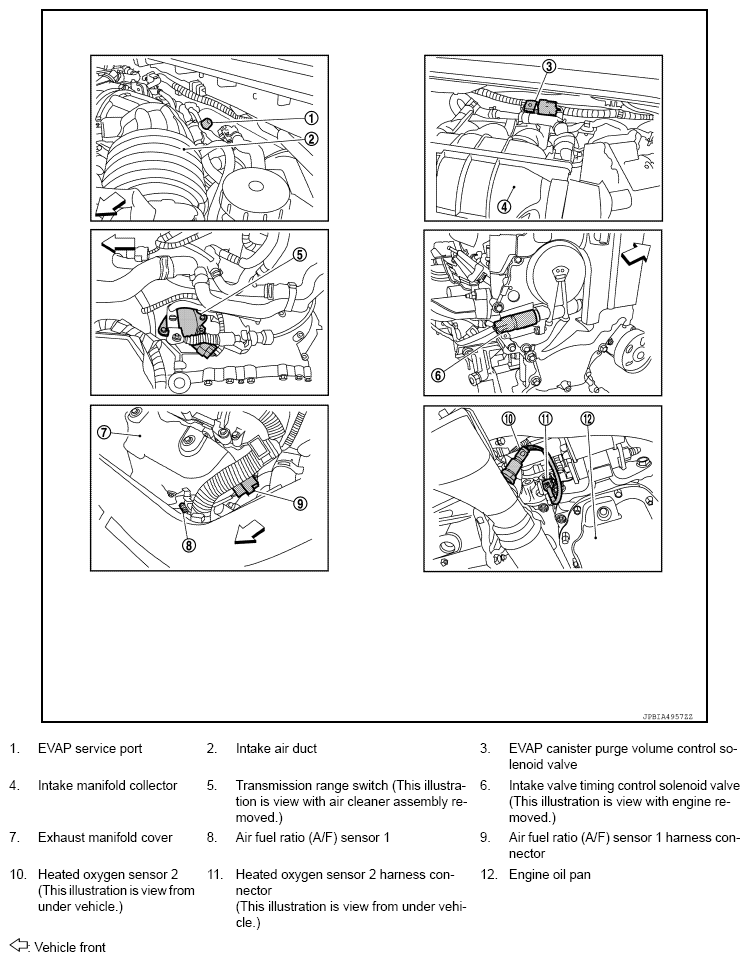

Fig 6: Intake Valve Timing Control Components Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intake Valve Timing Control Components Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
