Security Control System (With Intelligent Key System)
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Reference Value
>>
Terminal Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminal Layout

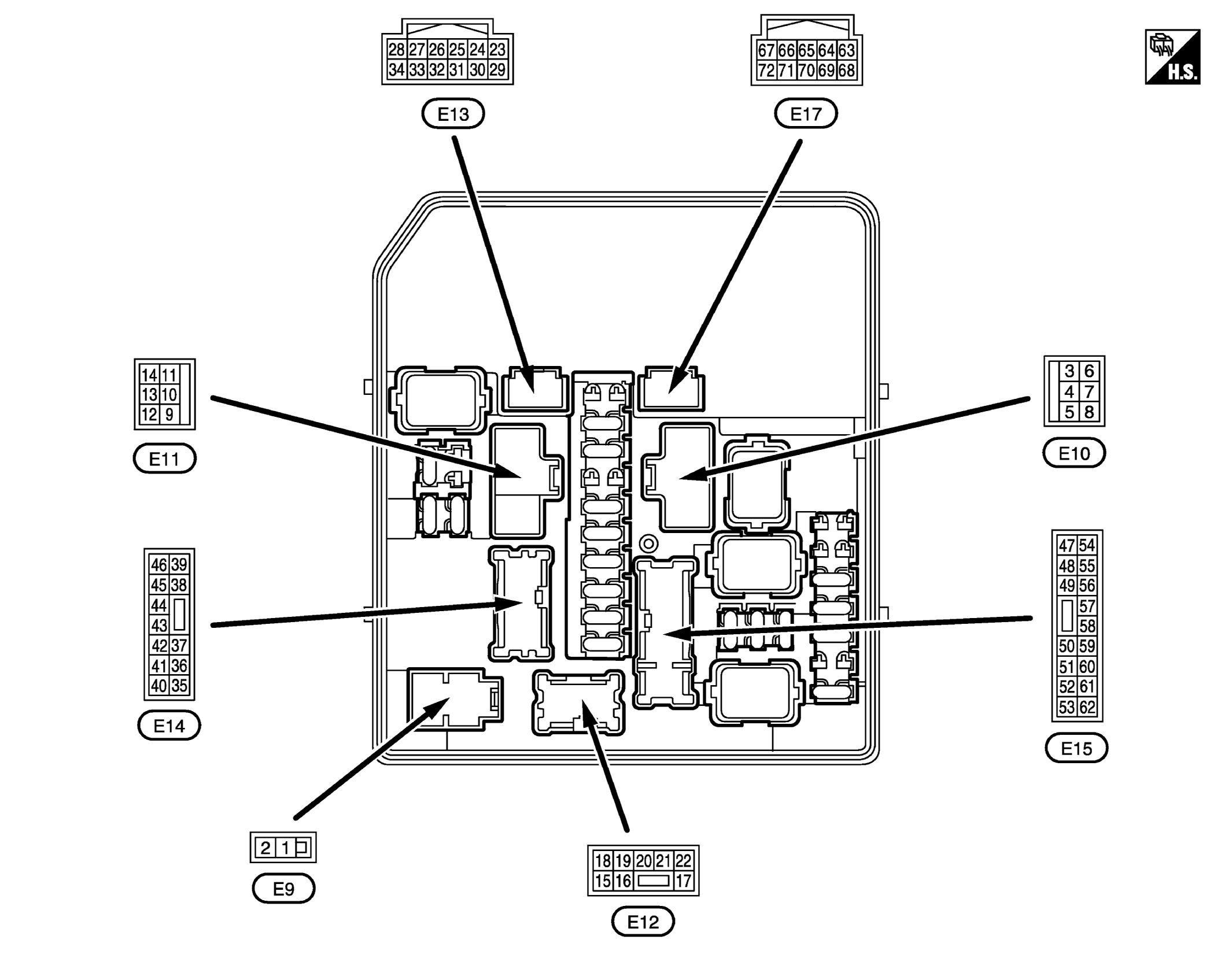

Fig 1: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminal Layout
