Overall Sequence

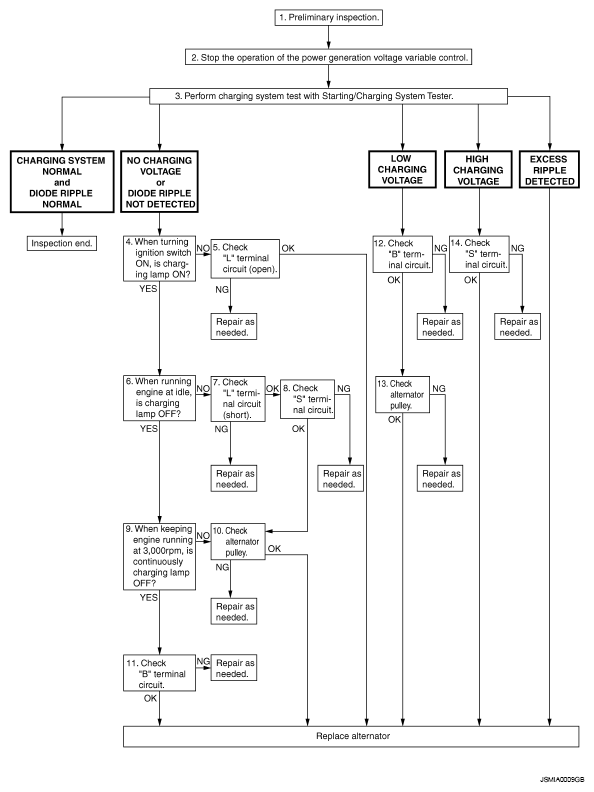

Fig 1: Identifying Diagnosis & Repair Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
