Exploded View: Disassembly

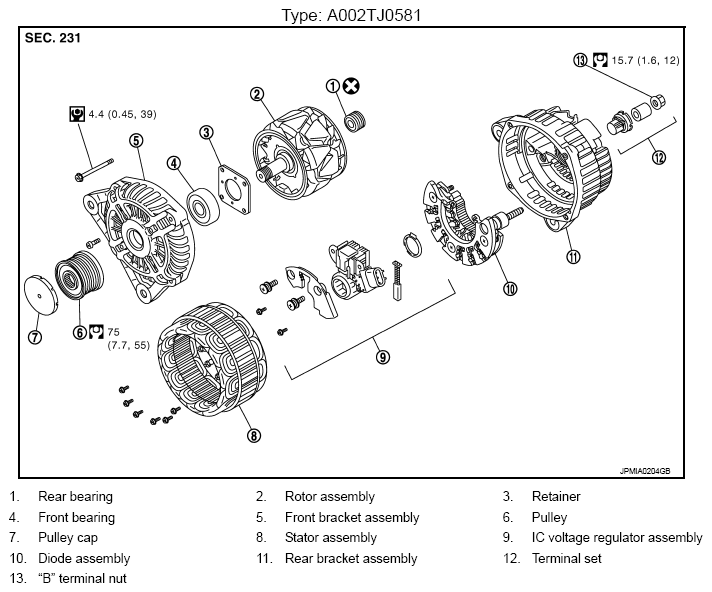

Fig 1: Disassembled View Of Alternator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
