Exploded View: Disassembly

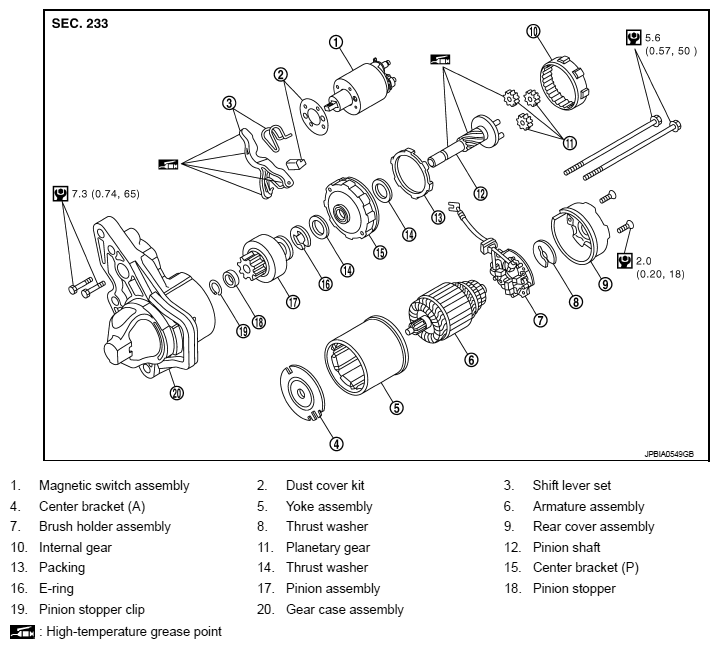

Fig 1: Disassembled View Of Starter Motor With Torque Specification (Type: S114-955)
G08136085Courtesy of NISSAN NORTH AMERICA, INC.

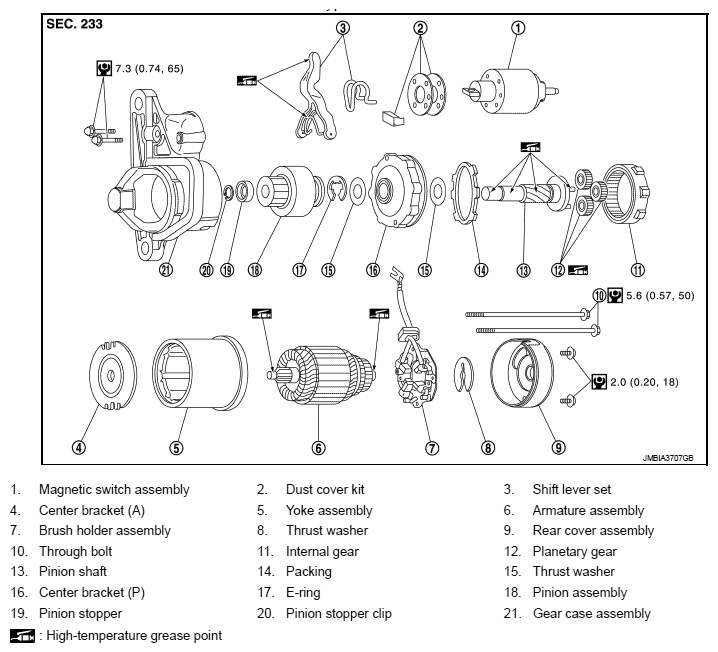

Fig 2: Disassembled View Of Starter Motor With Torque Specification (Type: S114-944)
G08136086Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
