Engine Lubrication System
>>
System Description
>>
Description
>>
Engine Lubrication System Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

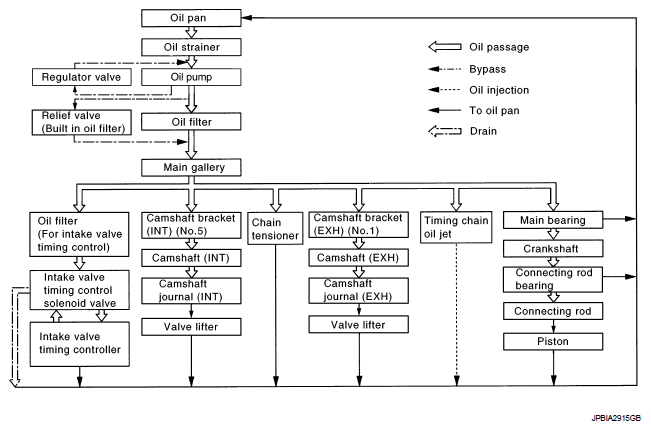

Engine Lubrication System Schematic
Fig 1: Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
