With Consult

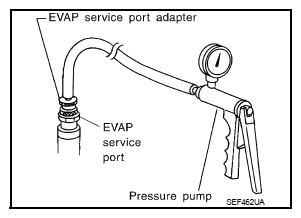

- Install EVAP service port adapter [commercial service tool: (J-41413-OBD)] and pressure pump to EVAP service port.
- Turn ignition switch ON.
- Select the "EVAP SYSTEM CLOSE" of "WORK SUPPORT" mode with CONSULT.
- Touch "START". A bar graph (Pressure indicating display) will appear on the screen.
- Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar graph.
- Remove EVAP service port adapter [commercial service tool: (J-41413-OBD)] and hose with pressure pump.

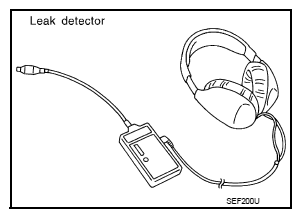

- Locate the leak using a leak detector [commercial service tool: (J-41416)]. Refer to
"System Description
".
