Without Consult

  1. Install EVAP service port adapter [commercial service tool: (J-41413-OBD)] and pressure pump to EVAP service port.
  2. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP system.
  3. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to 2.76 kPa (0.014 to 0.028 kg/cm2 , 0.2 to 0.4 psi).
  4. Remove EVAP service port adapter [commercial service tool: (J-41413-OBD)] and hose with pressure pump.

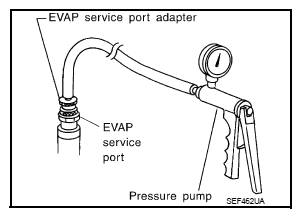

    Fig 1: Connecting Pressure Pump To EVAP Service Port
    G08128684Courtesy of NISSAN NORTH AMERICA, INC.
  5. Locate the leak using a leak detector [commercial service tool: (J-41416)]. Refer to "System Description ".

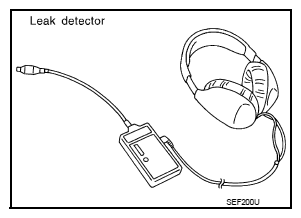

Fig 2: Identifying EVAP Leak Detector
G08128685Courtesy of NISSAN NORTH AMERICA, INC.
