System - Engine Mechanical & Other

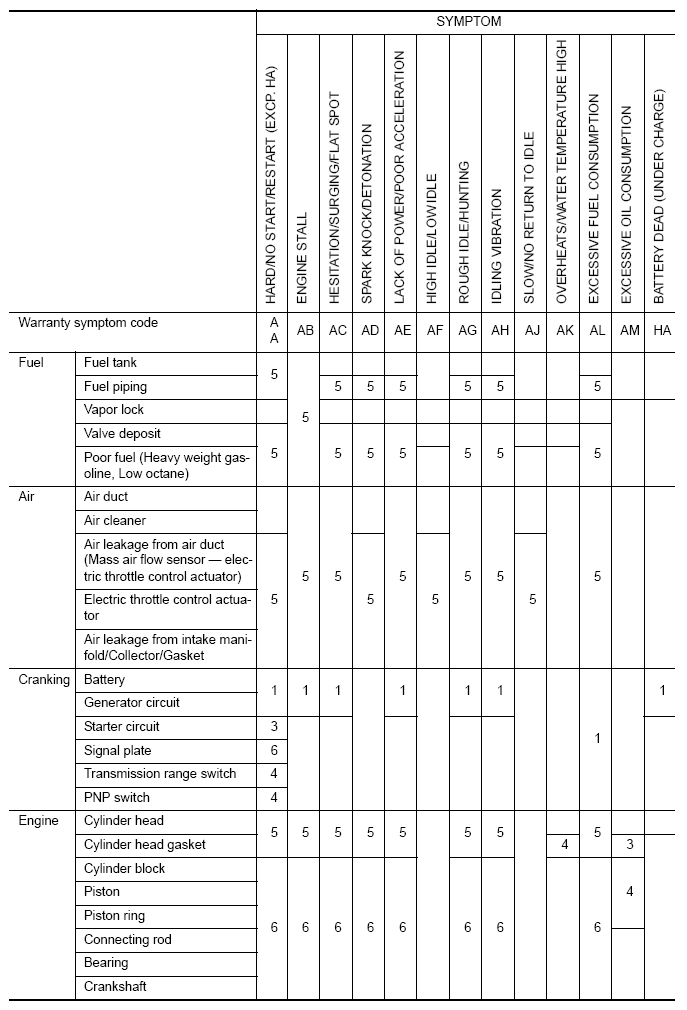

Fig 1: Engine Mechanical & Other System Symptoms Chart (1 Of 2)
G08128657Courtesy of NISSAN NORTH AMERICA, INC.

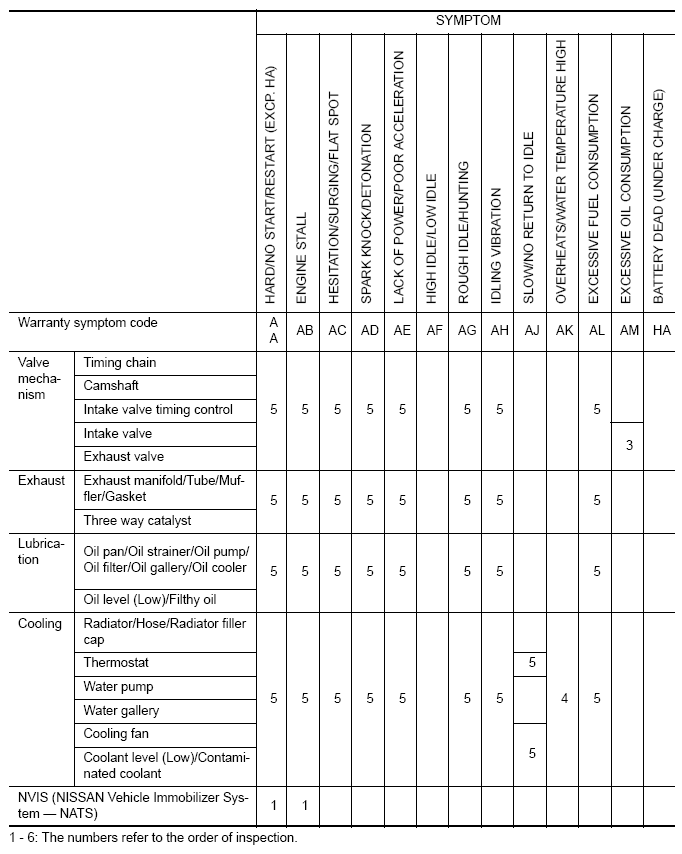

Fig 2: Engine Mechanical & Other System Symptoms Chart (2 Of 2)
G08128658Courtesy of NISSAN NORTH AMERICA, INC.
