Power Tilt/Telescopic Steering Motor Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 6P connector and 8P connector from the power tilt/telescopic steering motors.

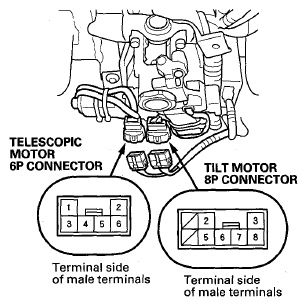

Fig 1: Identifying Telescopic Motor 6P Connector And Tilt Motor 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
TILT MOTOR:

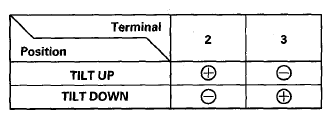

Fig 2: Tilt Motor Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TELESCOPIC MOTOR:

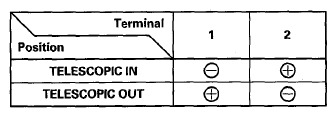

Fig 3: Telescopic Motor Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly; replace the steering column assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
