Power Tilt/Telescopic Steering Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 13P connector (A) from the power tilt/telescopic steering switch (B).

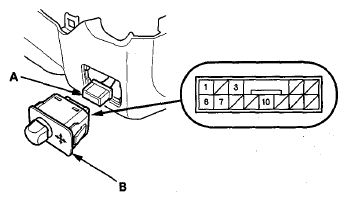

Fig 1: Identifying 13P Connector And Power Tilt/Telescopic Steering Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

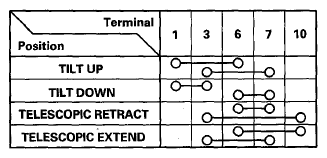

Fig 2: Power Tilt/Telescopic Steering Switch Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
