Removal and Installation: Removal

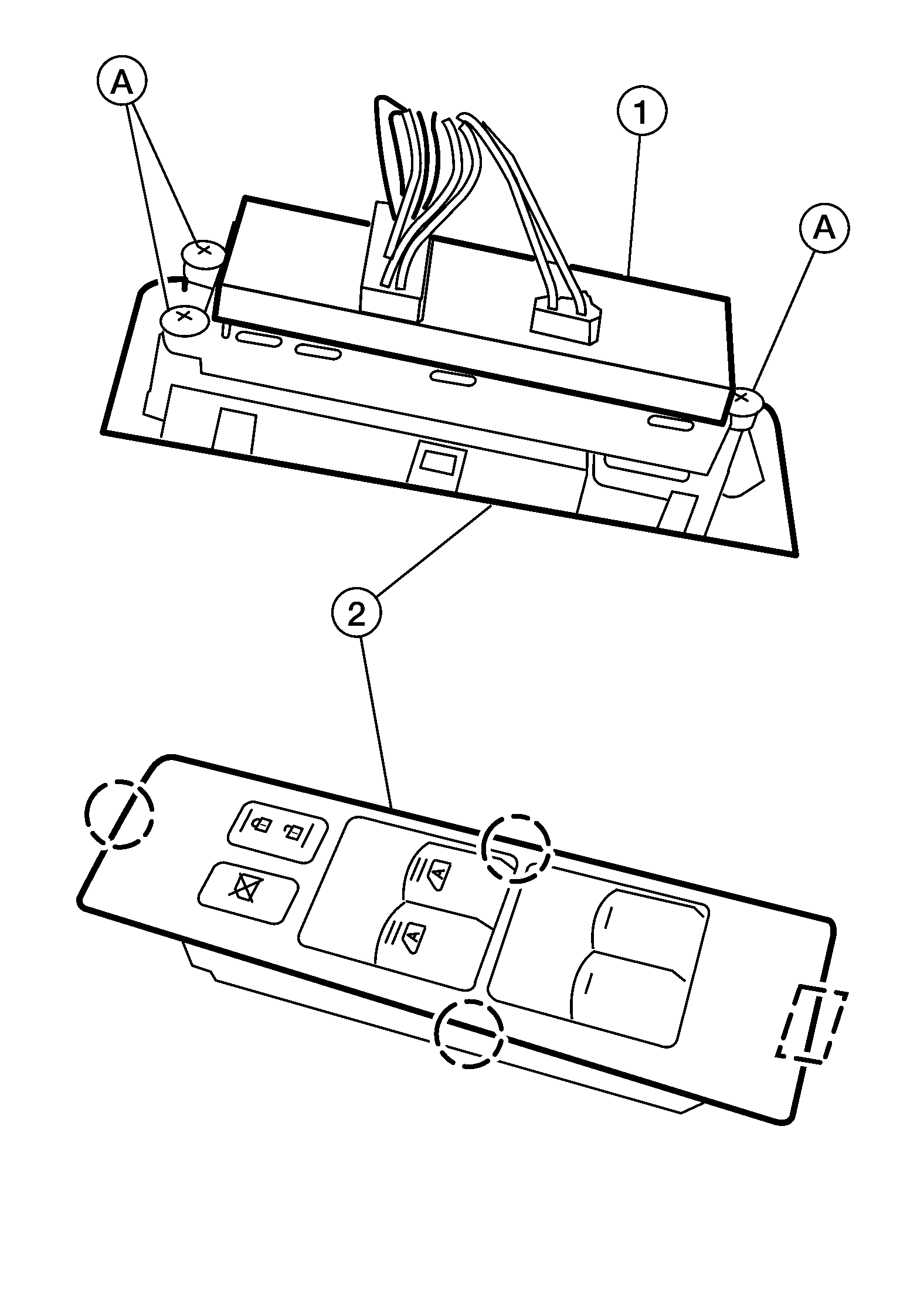

- Using a suitable tool, release the metal clip and pawls, then lift upward the main power window/door lock switch and finisher (2)
- LH as an assembly.
Segmented square: Metal clip
Segmented circle: Pawl
CAUTION: Wrap a cloth around suitable tool to protect components from damage. - Disconnect the harness connectors.
- Remove the main power window/door lock switch and finisher (2) - LH assembly from the front door finisher.
- Remove the three screws (A) from the main power window/door lock switch (1) - LH.
- Remove the main power window/door lock switch (1) - LH from the main power window/door lock switch finisher (2) - LH.
